ARES Shrike 5.56 Advanced Weapons System Belt-Fed Upper Receiver with Two Spare Barrels and Small Parts

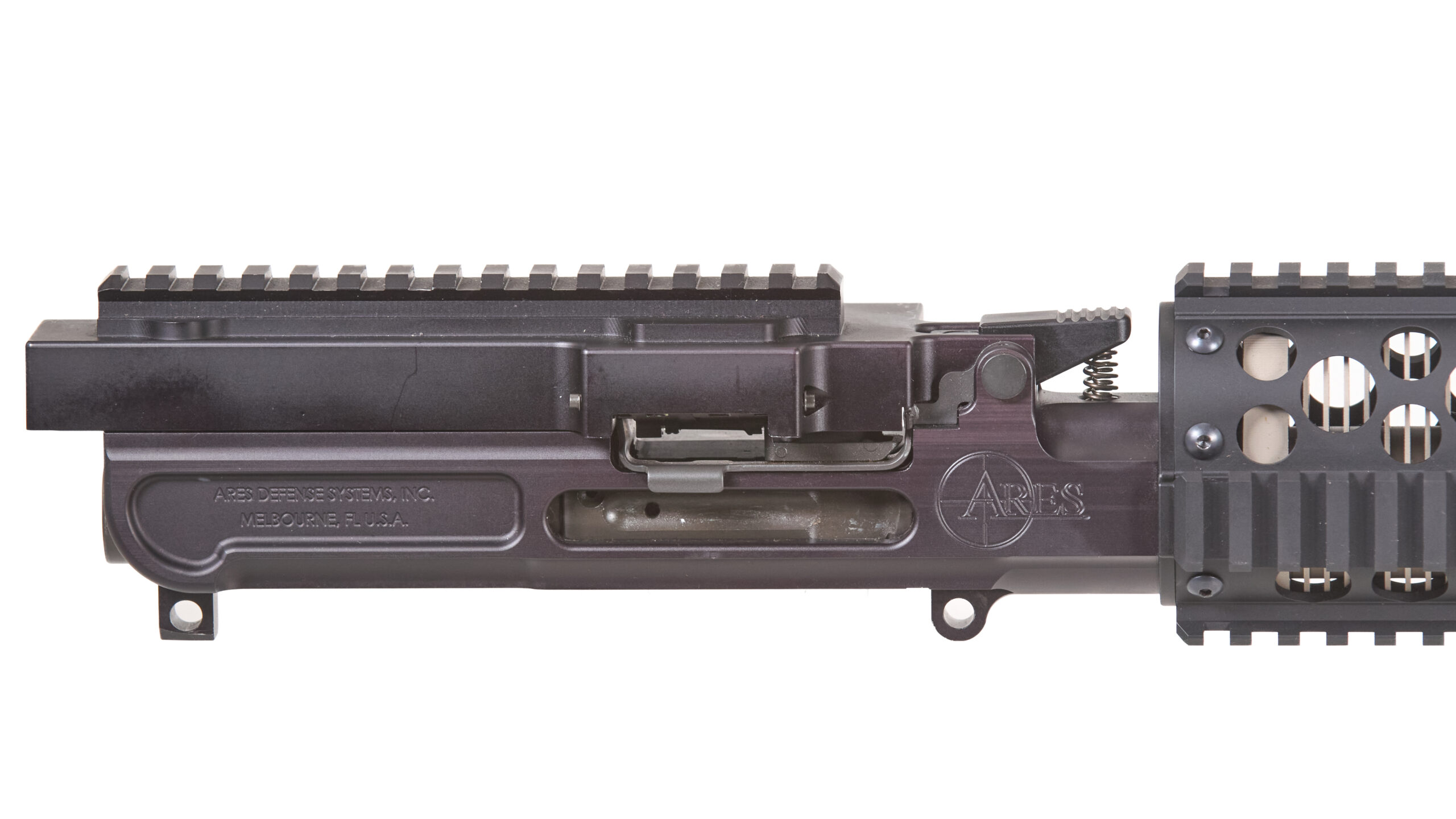

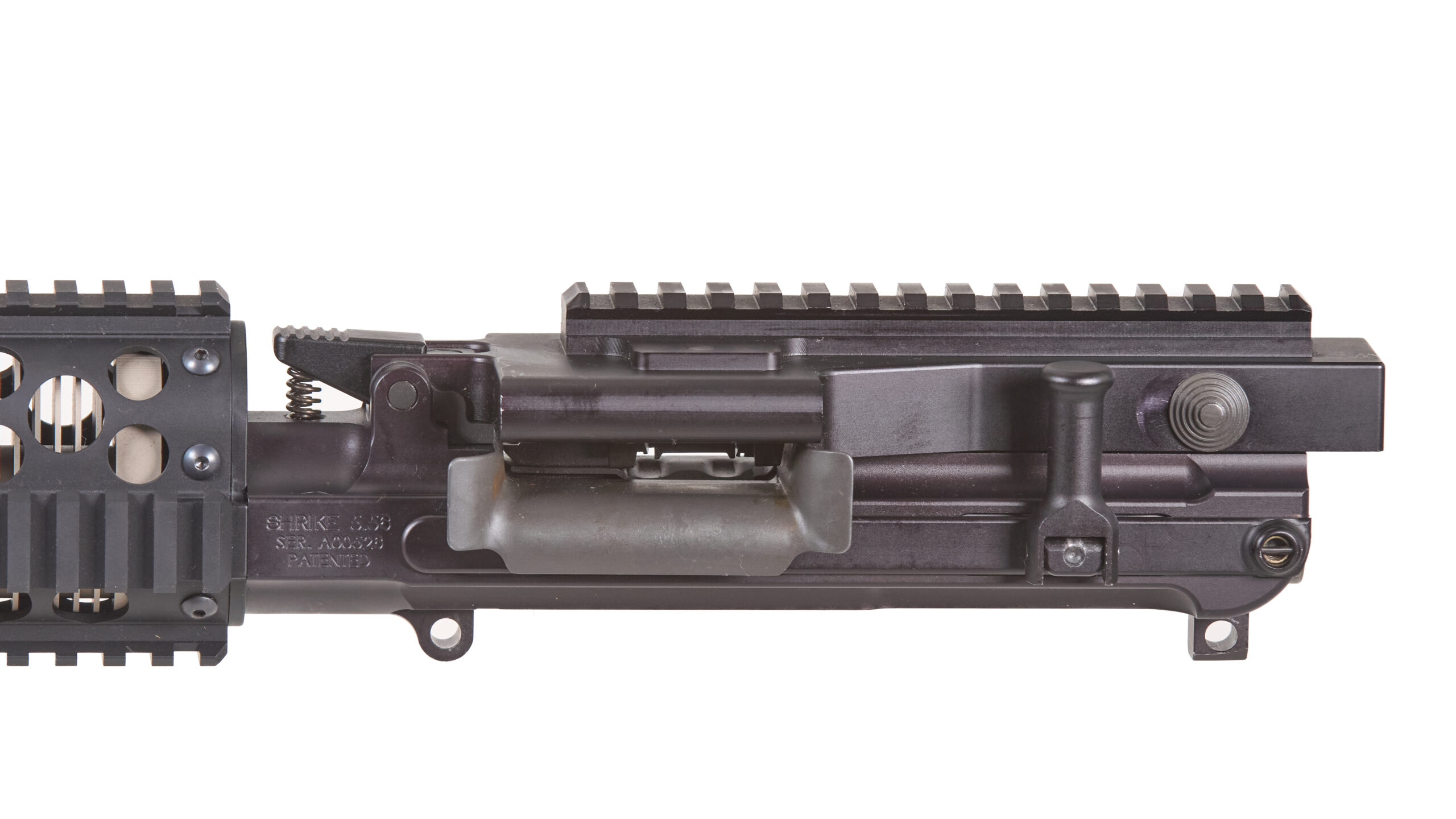

This is an ARES Defense Systems Shrike 5.56 Advanced Weapons System belt-fed upper receiver assembly, an extremely scarce early ARES-marked example of the system that later evolved into the FightLite MCR line. The receiver is marked SHRIKE 5.56, PATENTED, and the serial appears to read A00526. The opposite side is marked ARES Defense Systems, Inc., Melbourne, FL, U.S.A.

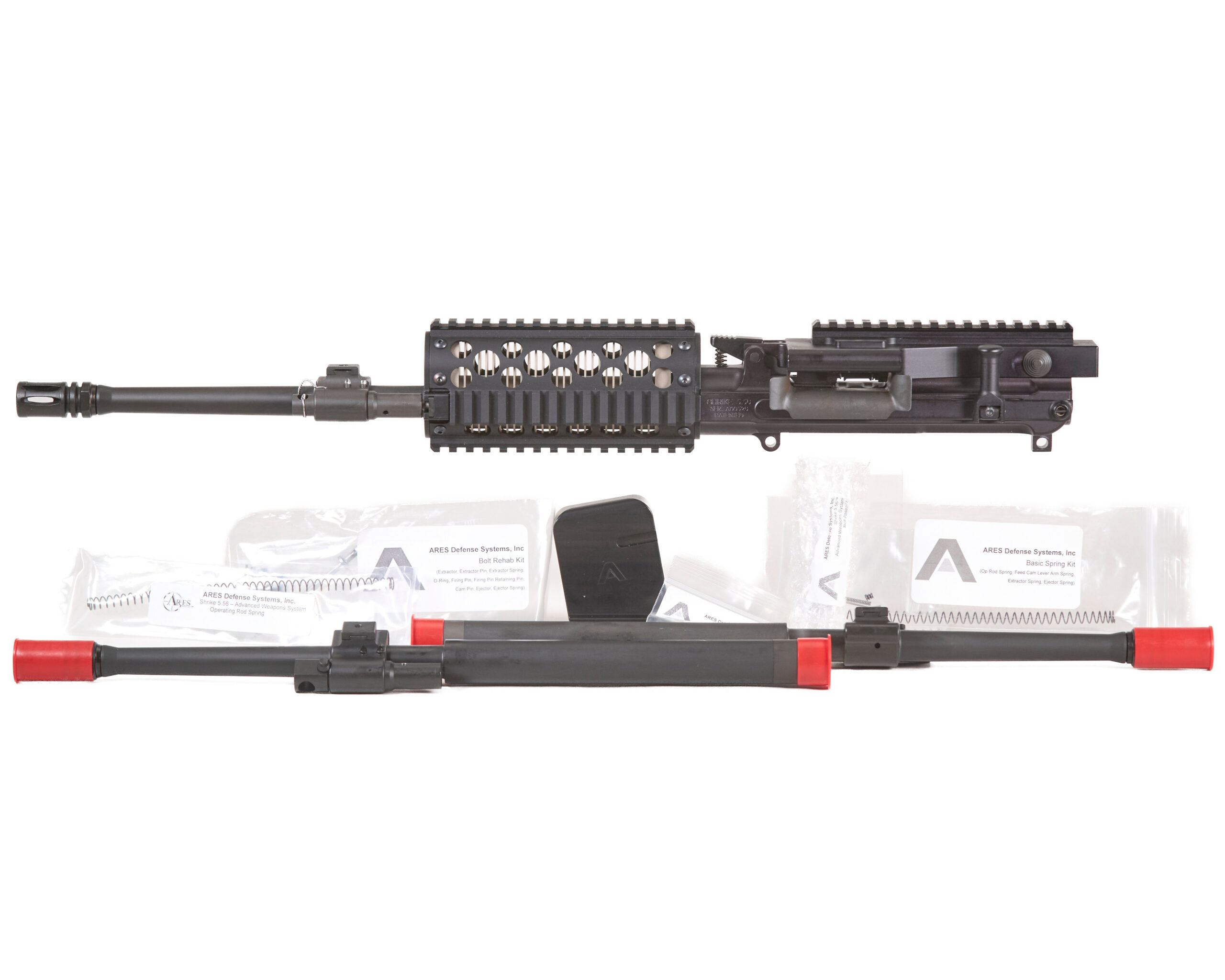

This package includes the Shrike upper receiver assembly, two spare barrel assemblies with red protective end caps, feed/magazine adapter component, ARES-marked spring and small-parts packets, bolt rehab kit, basic spring kit, operating rod spring, and additional small components.
Historical Background
The Shrike 5.56 was developed by Geoffrey Herring and ARES Defense Systems as a compact belt-fed upper receiver system for the AR-15/M16/M4 family. ARES Defense Systems was founded in 1997, and FightLite Industries is now a division of ARES Defense Systems. FightLite’s own company history lists the belt-fed MCR among the firm’s patented product achievements.
The concept was to give a standard AR/M16-pattern lower a light-machine-gun style capability without permanently modifying the host lower. ARES patents describe an upper receiver assembly capable of receiving both magazine-fed ammunition and belt-fed ammunition, with the key patent family tracing back to a December 2000 priority date and publication in 2003.
Early coverage described the Shrike 5.56 as a “drop-on” belt-feed upper receiver assembly for the AR-15/M16 family. Small Arms Review noted that the Shrike was designed around standard M27 links and standard M16 box magazines, allowing the user to move between belt and magazine feed without the type of major reconfiguration required by earlier modular systems.
Development and Design
The Shrike was heavily influenced by earlier attempts to create modular belt-fed rifle systems, especially the Stoner 63/63A family. Contemporary reporting described it as an effort to bridge the gap between the M4 carbine and the M249 Squad Automatic Weapon.
The system used a quick-change barrel, short-stroke gas-piston operation, and a dual-feed arrangement capable of accepting either AR/M16 magazines or M27-linked 5.56 NATO ammunition. ARES promotional material from the period described the Shrike as fitting MIL-SPEC AR-15/M16/M4-type lowers, using M27-linked SAW ammunition and standard 30-round M16 magazines, with a military-style cyclic-rate range when used on applicable select-fire lowers.
Current FightLite MCR literature shows the same design lineage continuing under the MCR name, with modern MCR Dual-Feed uppers still described as drop-on AR15/M16/M4-type upper receiver assemblies using 5.56x45mm NATO, short-stroke gas-piston operation, quick-change barrels, M27 linked ammunition, and AR15/M16 magazines. FightLite’s belt-feed cover conversion kit also specifically lists compatibility with the ARES Shrike 5.56, confirming the Shrike’s place in the current MCR family lineage.
Configuration and Included Components

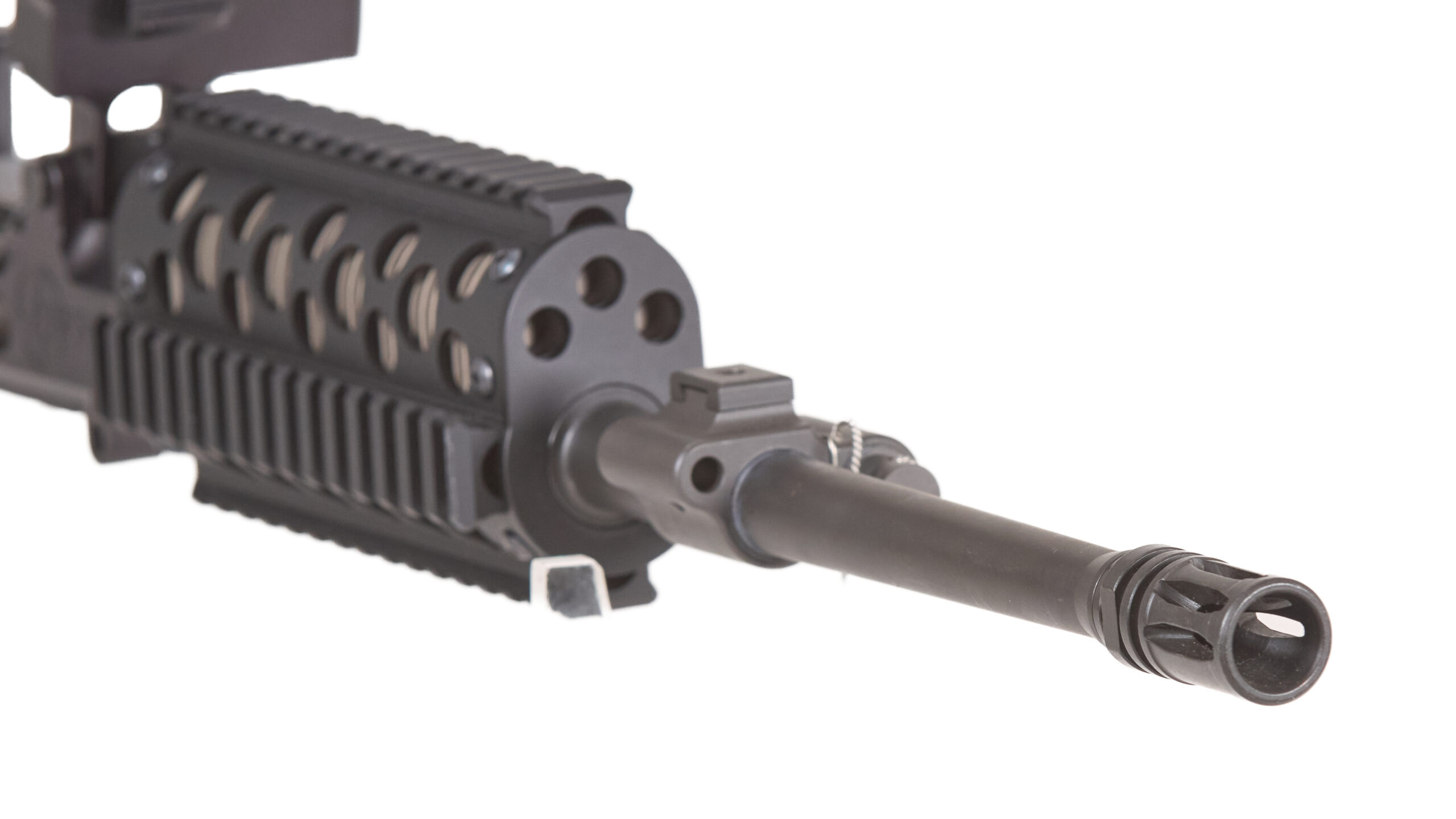

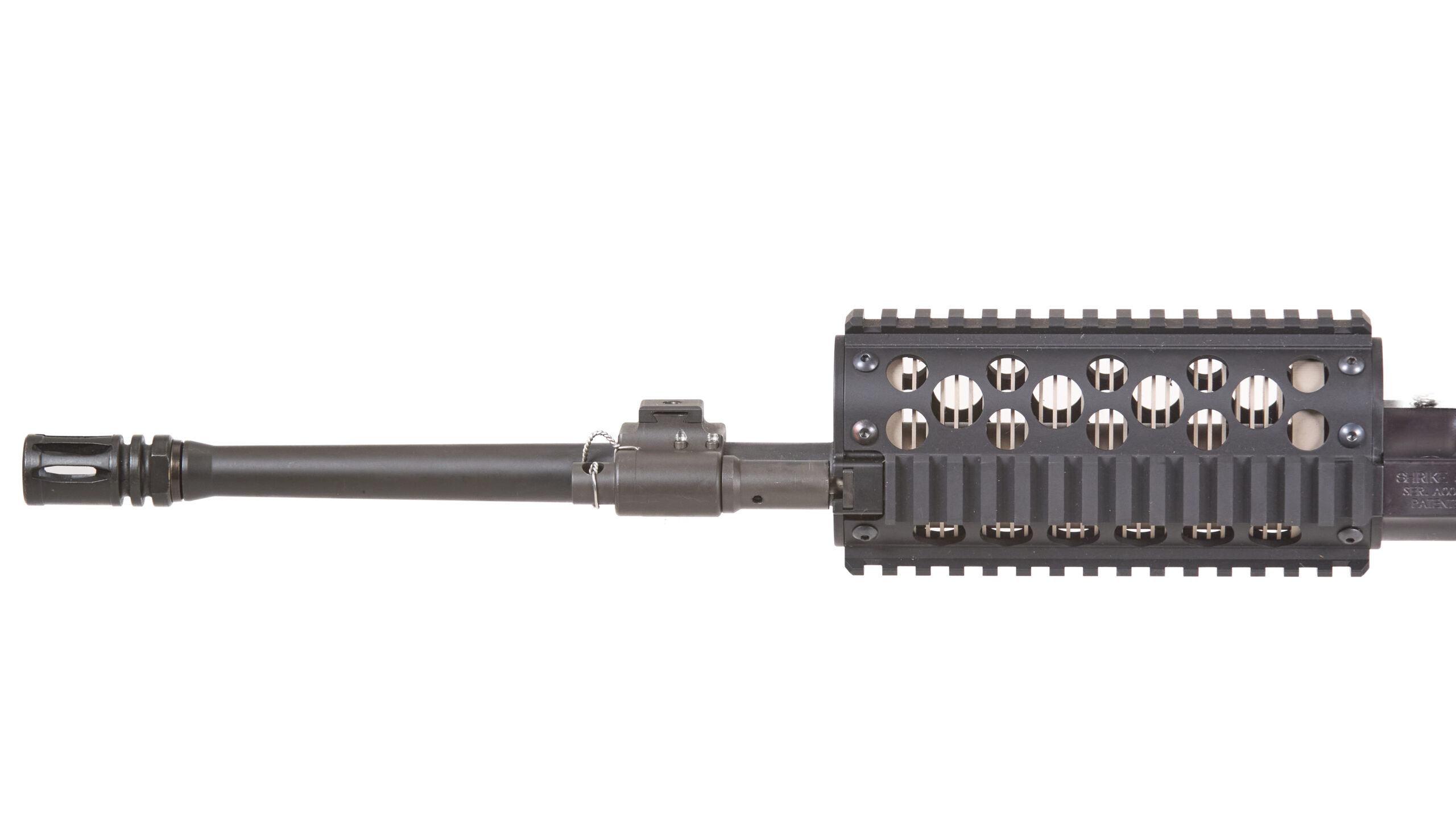

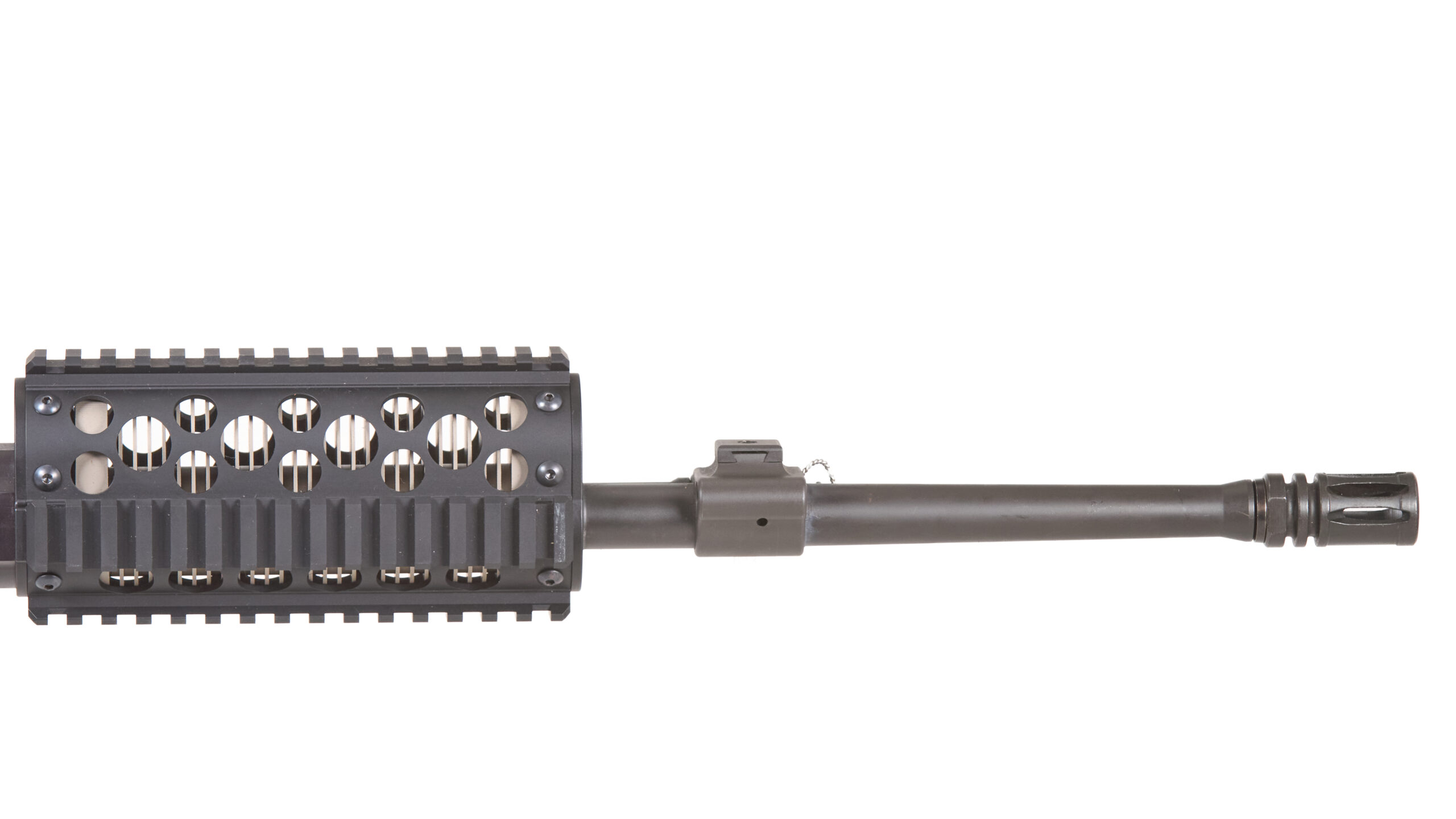

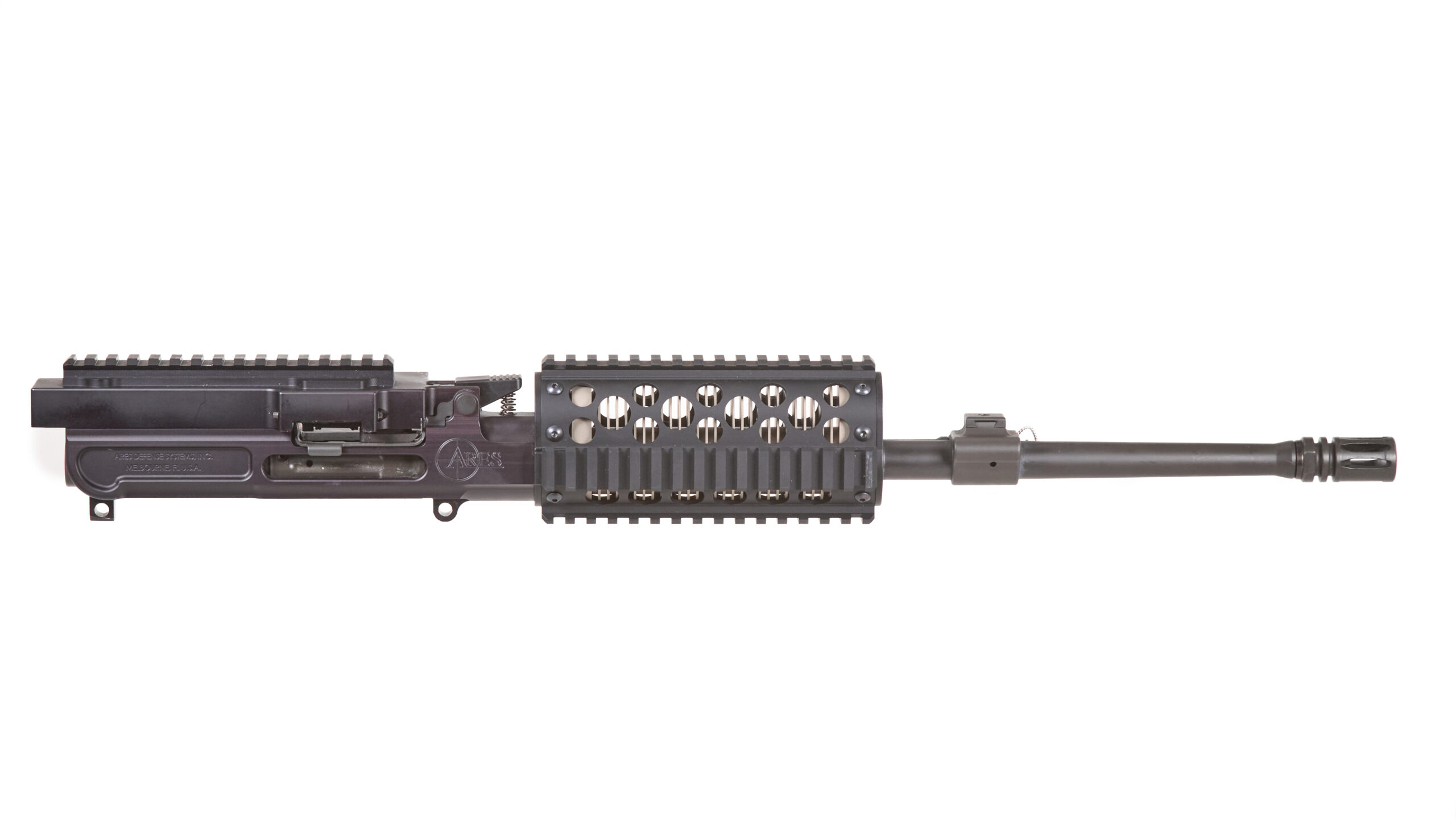

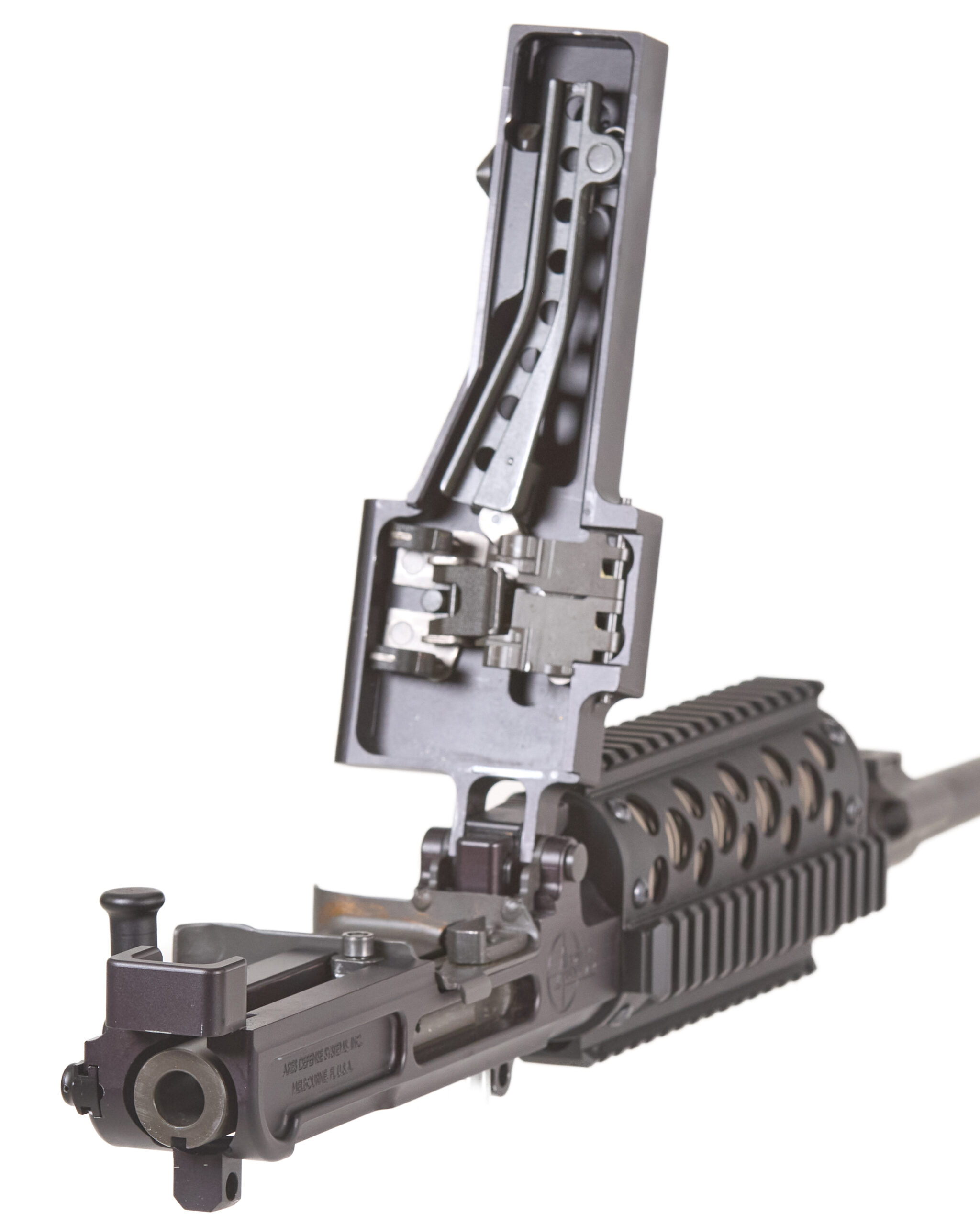

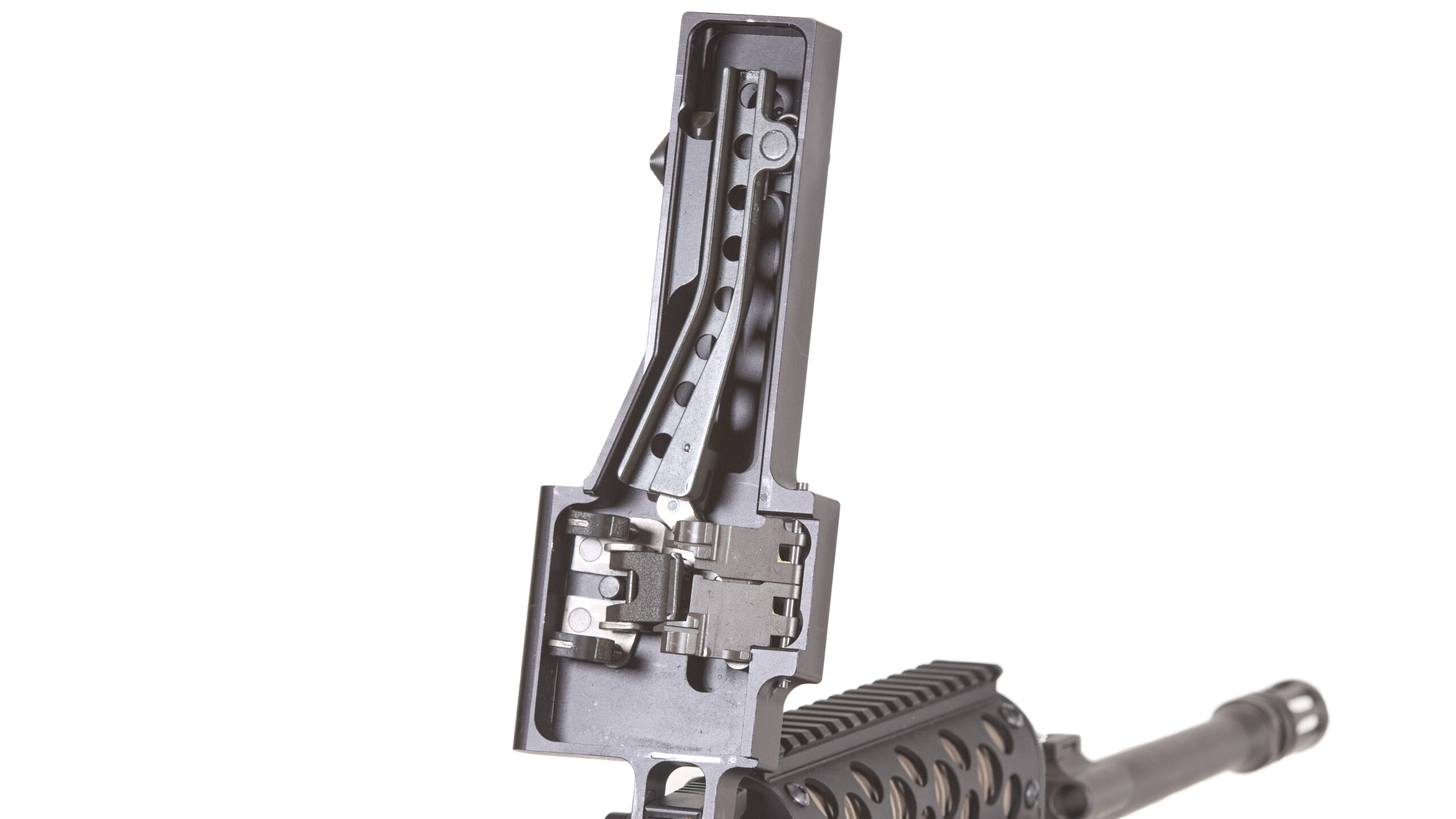

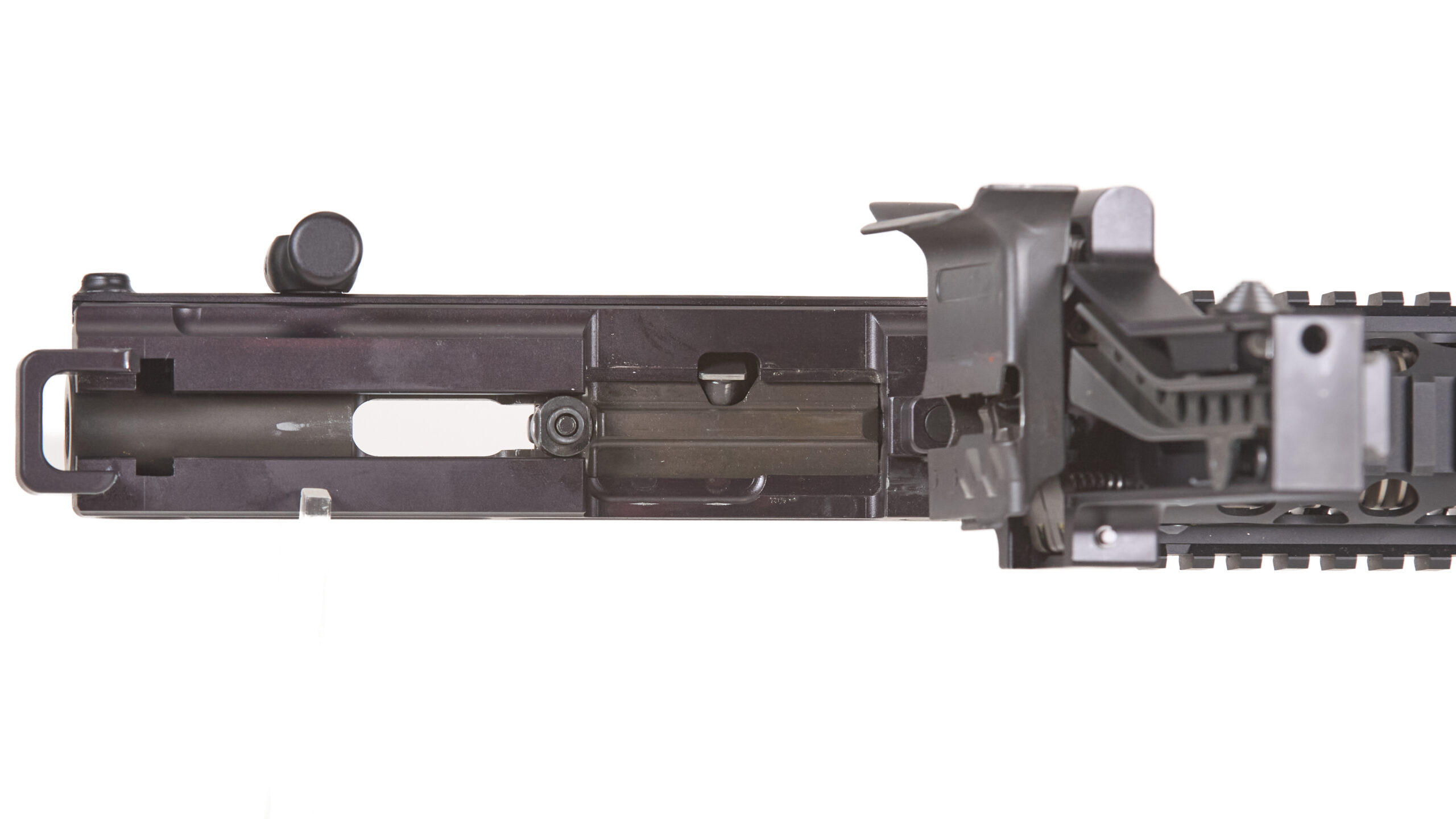

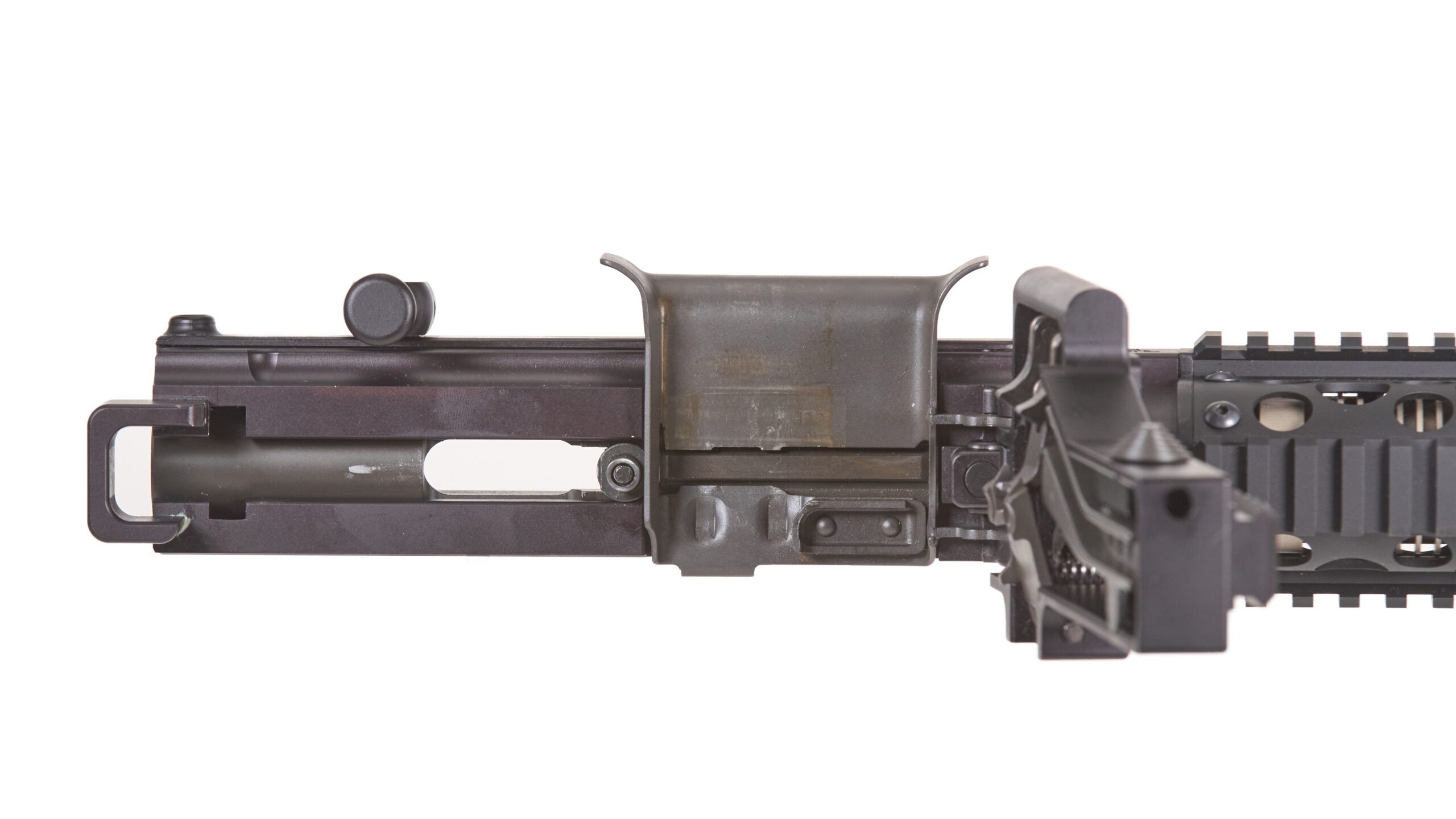

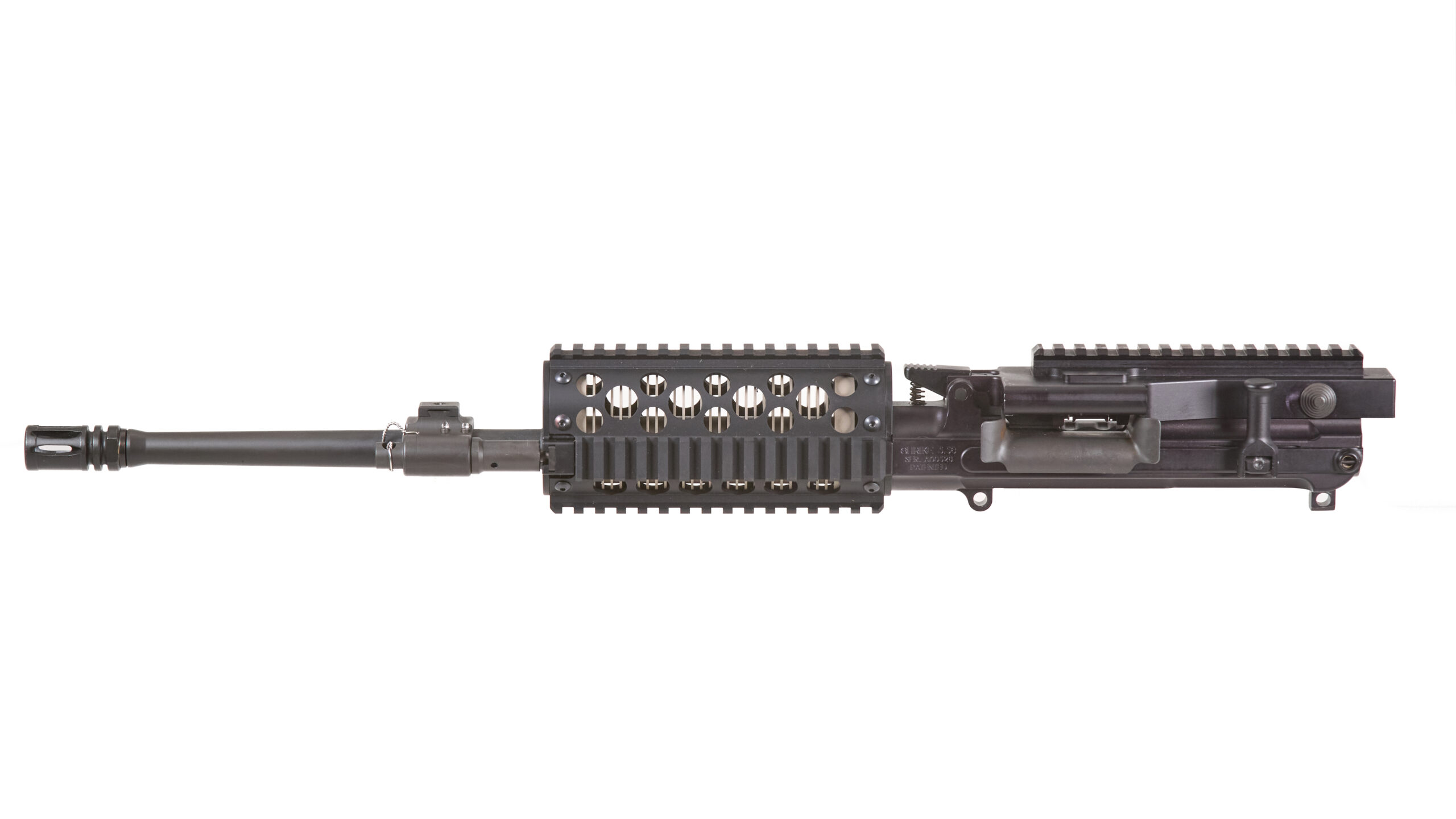

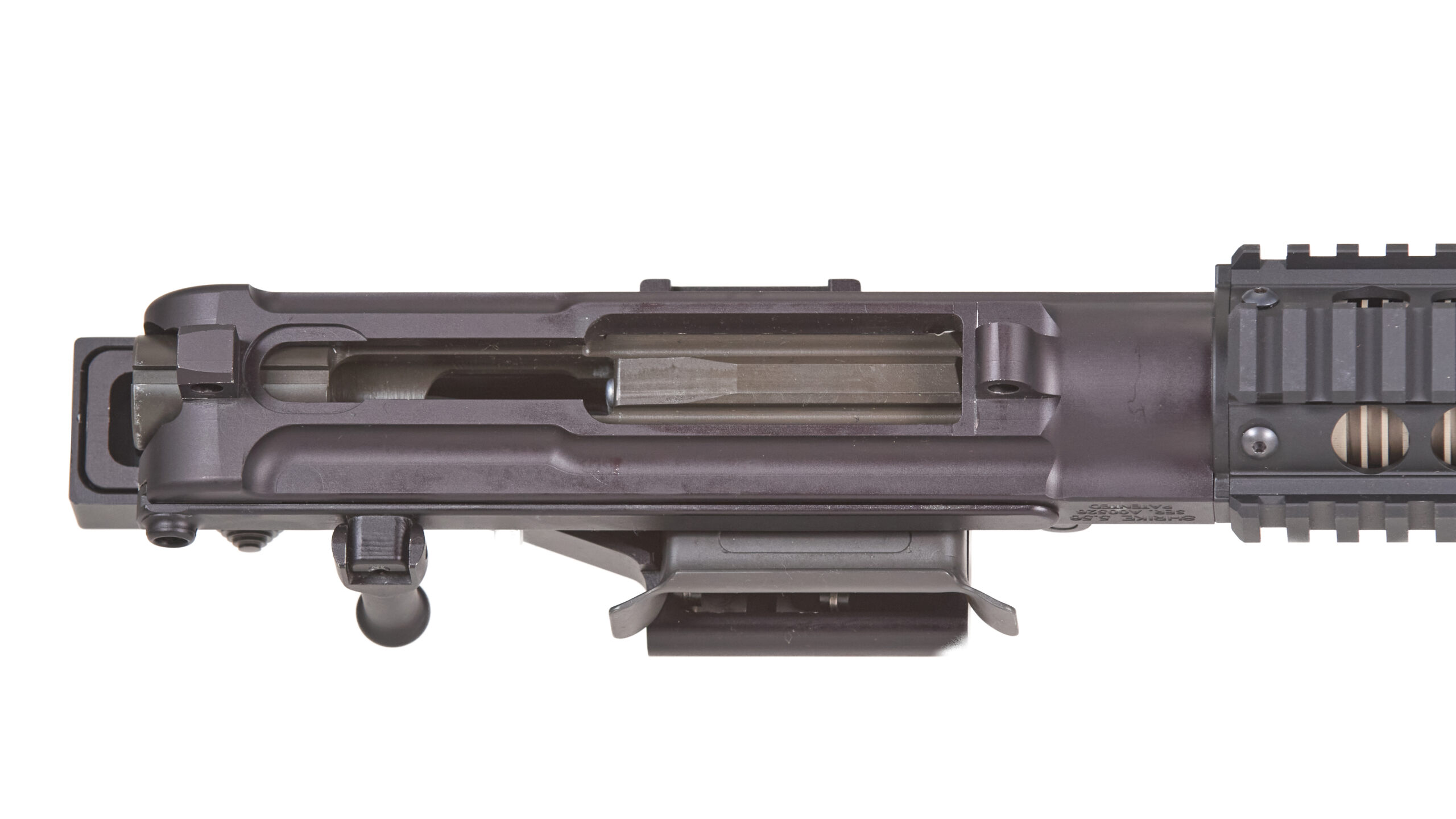

This early ARES Shrike package includes the complete upper receiver assembly with railed top cover, ventilated quad-rail handguard, quick-change barrel assembly, flash hider, belt-feed top cover, feed tray area, and side charging handle. The receiver retains the early ARES logo and SHRIKE 5.56 markings rather than later FightLite MCR branding.

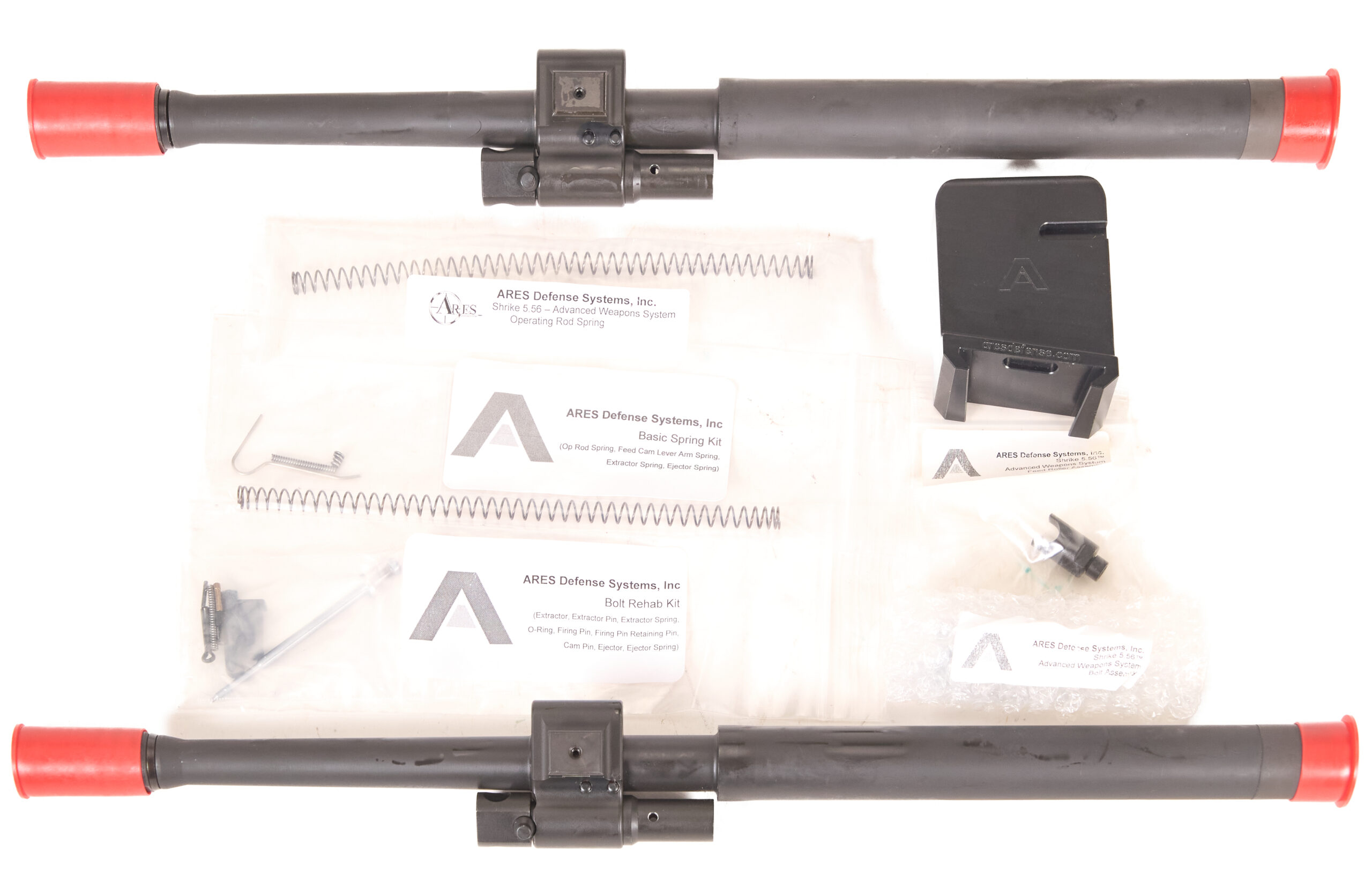

Also included are two spare barrel assemblies, each fitted with front sight/gas-block components and red protective caps. The small-parts packets are ARES Defense Systems marked and include items labeled for the Shrike 5.56 Advanced Weapons System, including operating rod spring, basic spring kit, bolt rehab kit, and other replacement parts.
The included feed/magazine adapter component is ARES-marked and appears to be part of the ammunition handling setup for the system.
Use and Collectability
The Shrike occupied a unique place in the U.S. commercial and NFA firearms market. For semi-automatic owners, it offered an unusual belt-fed upper configuration on an AR-pattern host. For lawful transferable M16 owners and Class III collectors, it provided a way to build a compact 5.56 belt-fed machine-gun configuration without buying a dedicated transferable belt-fed firearm. Small Arms Review specifically noted the appeal of the Shrike to Class III enthusiasts because transferable 5.56 belt-fed machine guns were scarce and expensive.
The early ARES-marked Shrike uppers are especially desirable because they represent the original production identity of the system before the later FightLite MCR branding. A package with spare barrels and original ARES small-parts kits is considerably more complete than a standalone upper.
Condition
Excellent overall condition with light handling wear, minor finish marks, and storage wear visible on some components. The upper receiver, handguard, rail sections, top cover, feed tray area, and barrel assembly present very well. Markings remain clear and legible. The included spare barrels retain their protective red caps. Small-parts packets remain present with ARES Defense Systems labels.
An extremely rare and highly desirable early ARES Shrike 5.56 belt-fed upper receiver package, complete with spare barrels and factory-marked support parts.
