British .303 Vickers Mk I Water-Cooled Machine Gun with Mark IV Tripod

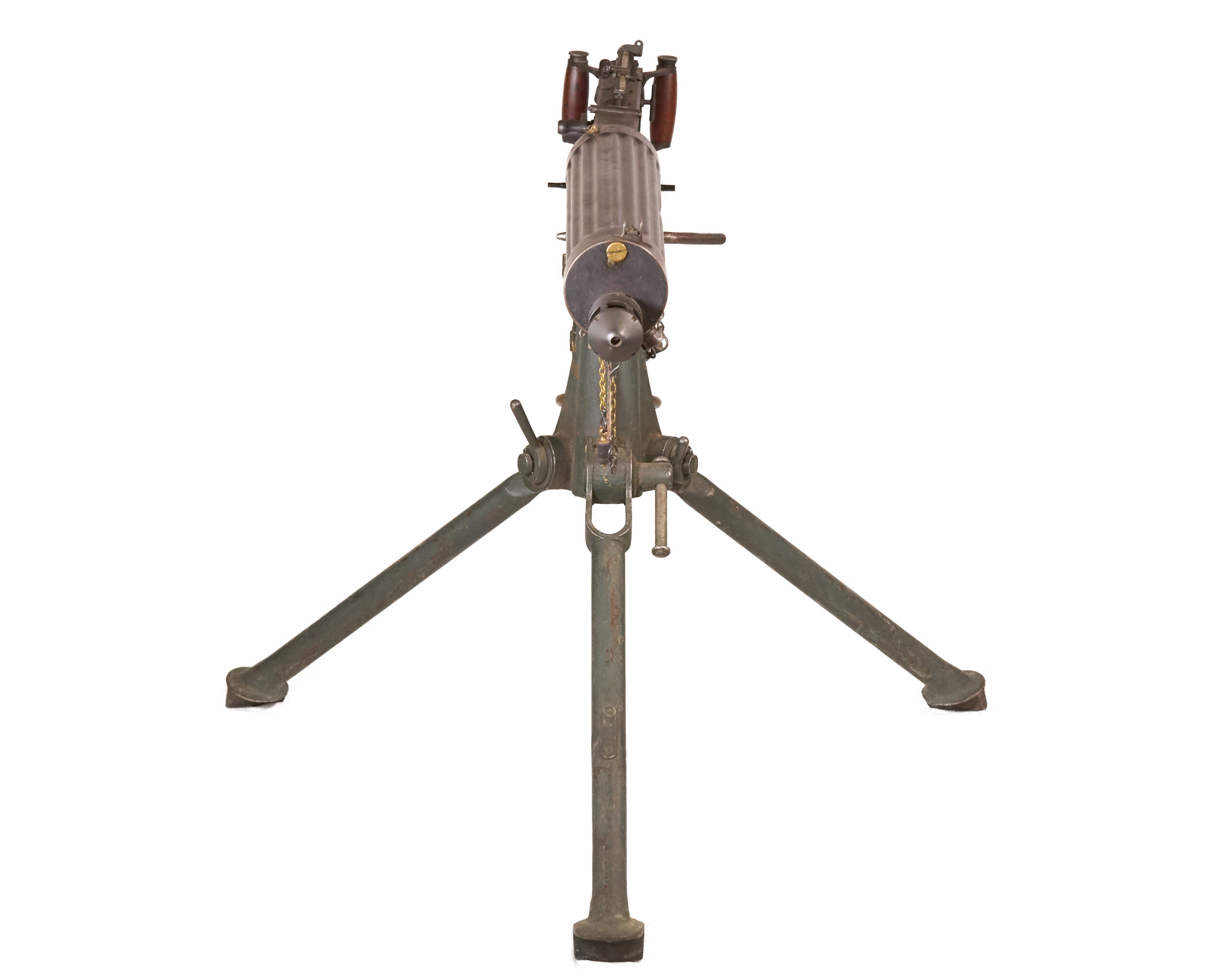

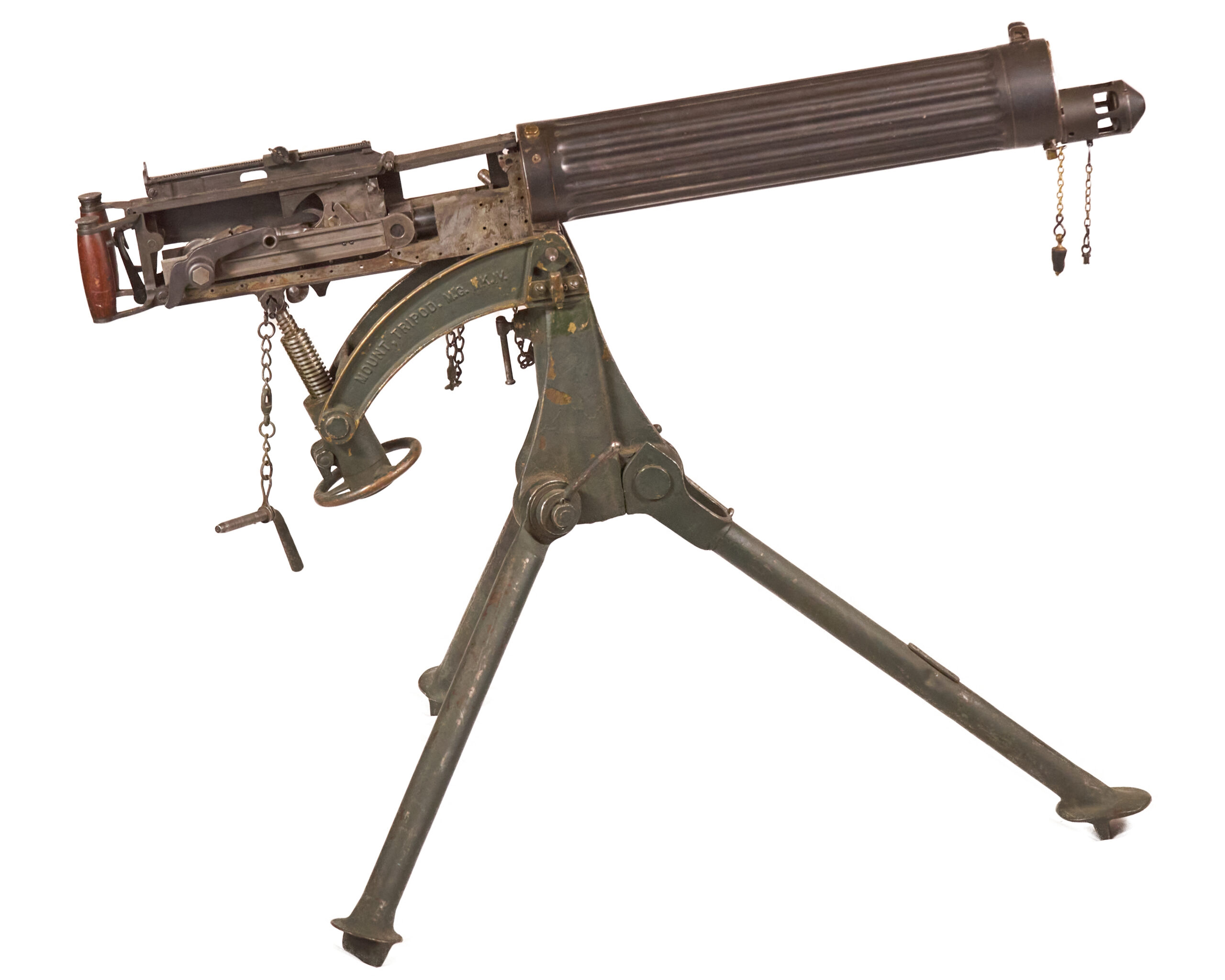

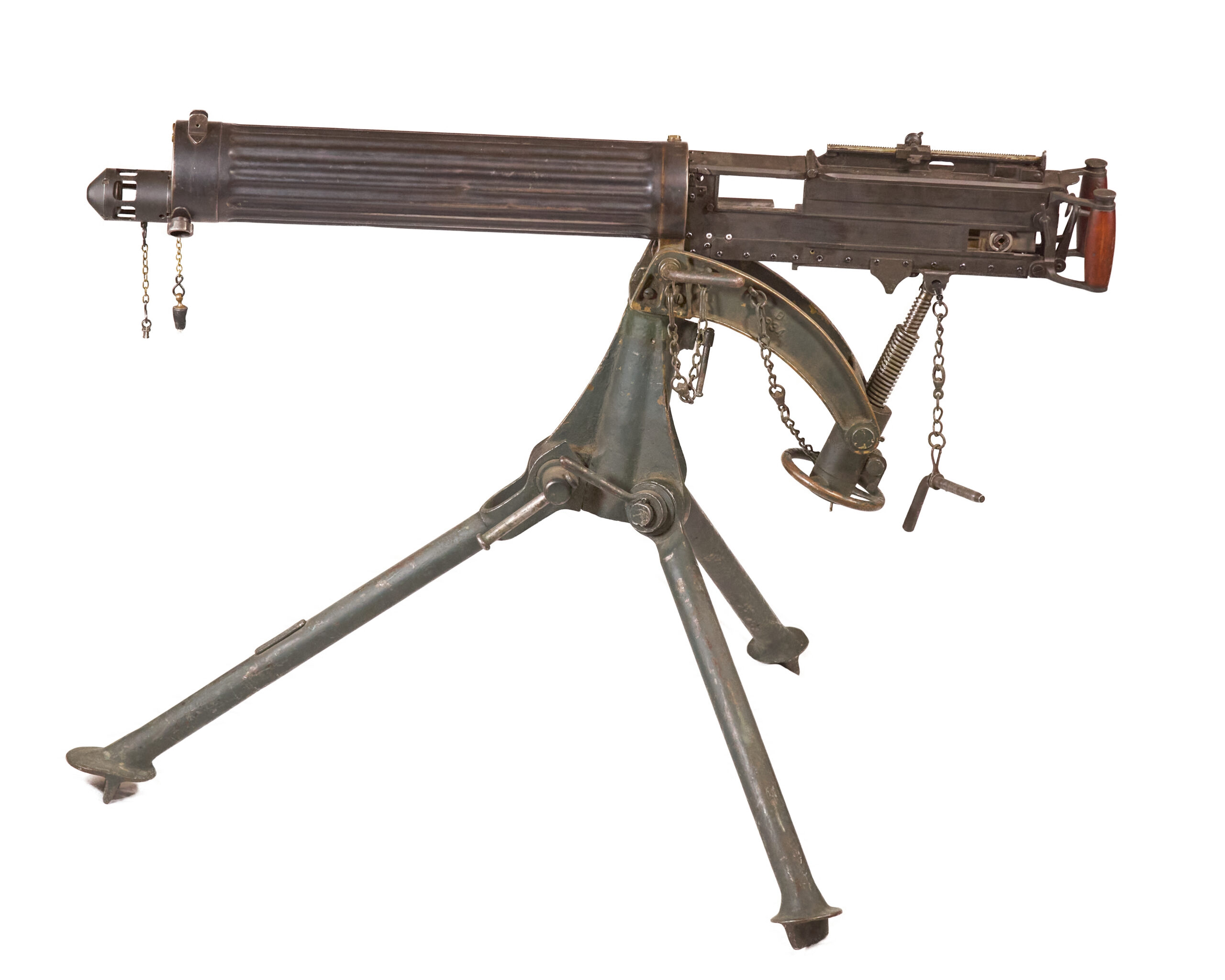

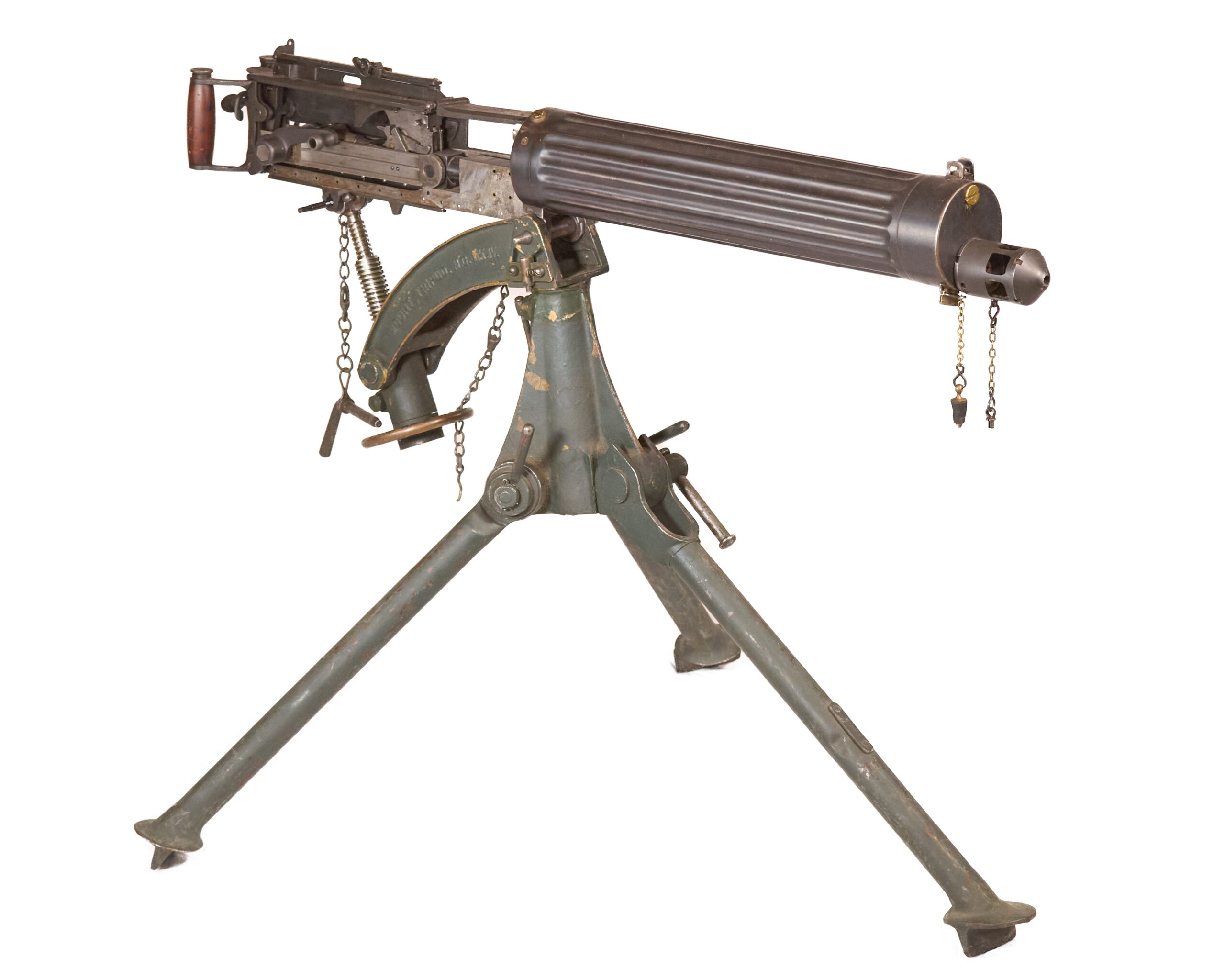

This British .303 Vickers Mk I machine gun is mounted on a Mark IV tripod and retains the classic water-cooled medium machine gun profile. The set shows a fluted water jacket, rectangular receiver body, tangent rear sight, twin wooden spade grips, muzzle recoil booster, and the curved Mark IV tripod mount with cast nomenclature.
British .303 Vickers Mk I Machine Gun
The Vickers Mk I was one of the defining British and Commonwealth medium machine guns of the twentieth century. This example has the early-style fluted water jacket rather than the later smooth jacket commonly seen on many Second World War-period guns. The mounting is the heavy Mark IV tripod pattern used for controlled direct and indirect fire.

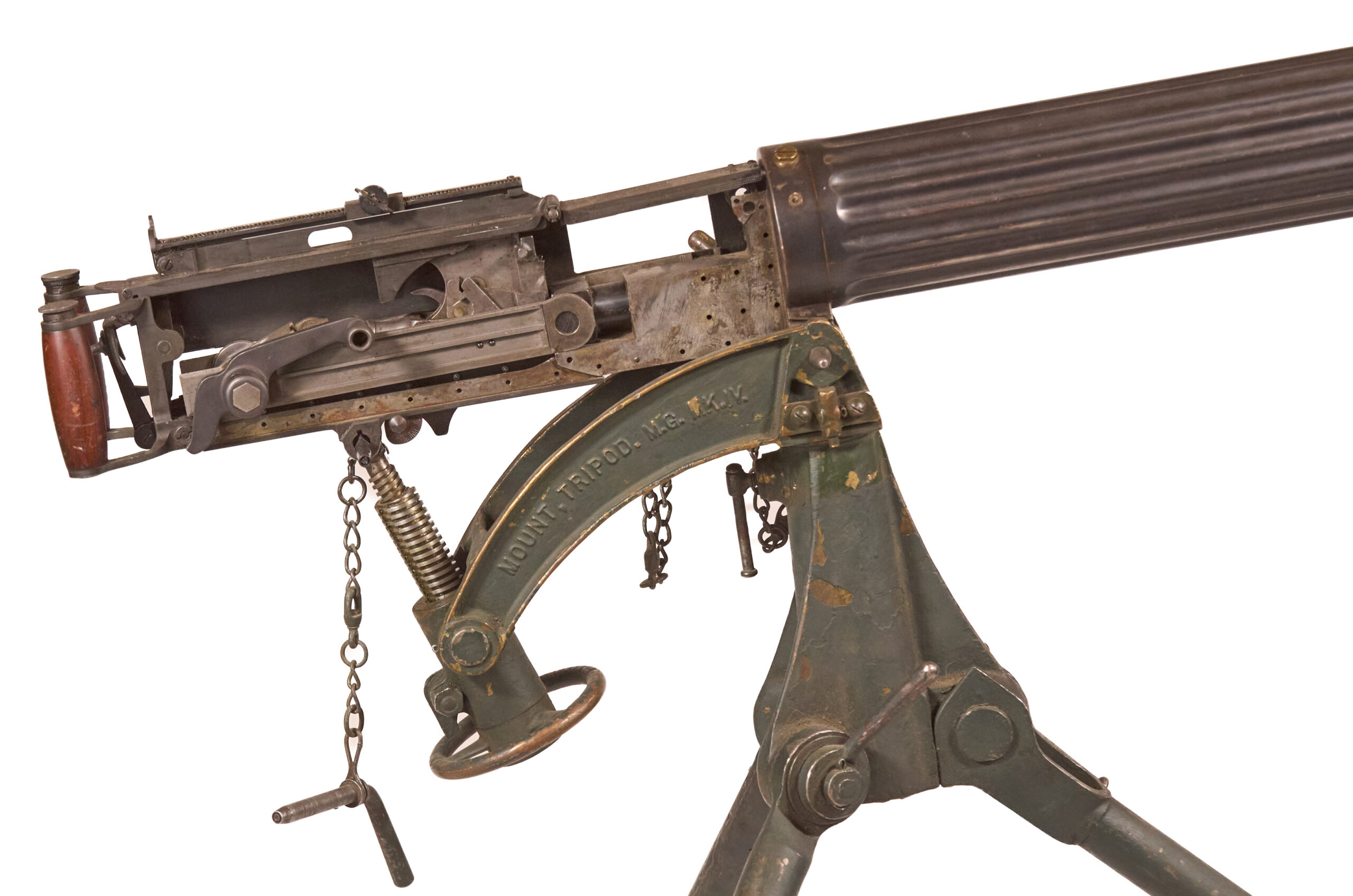

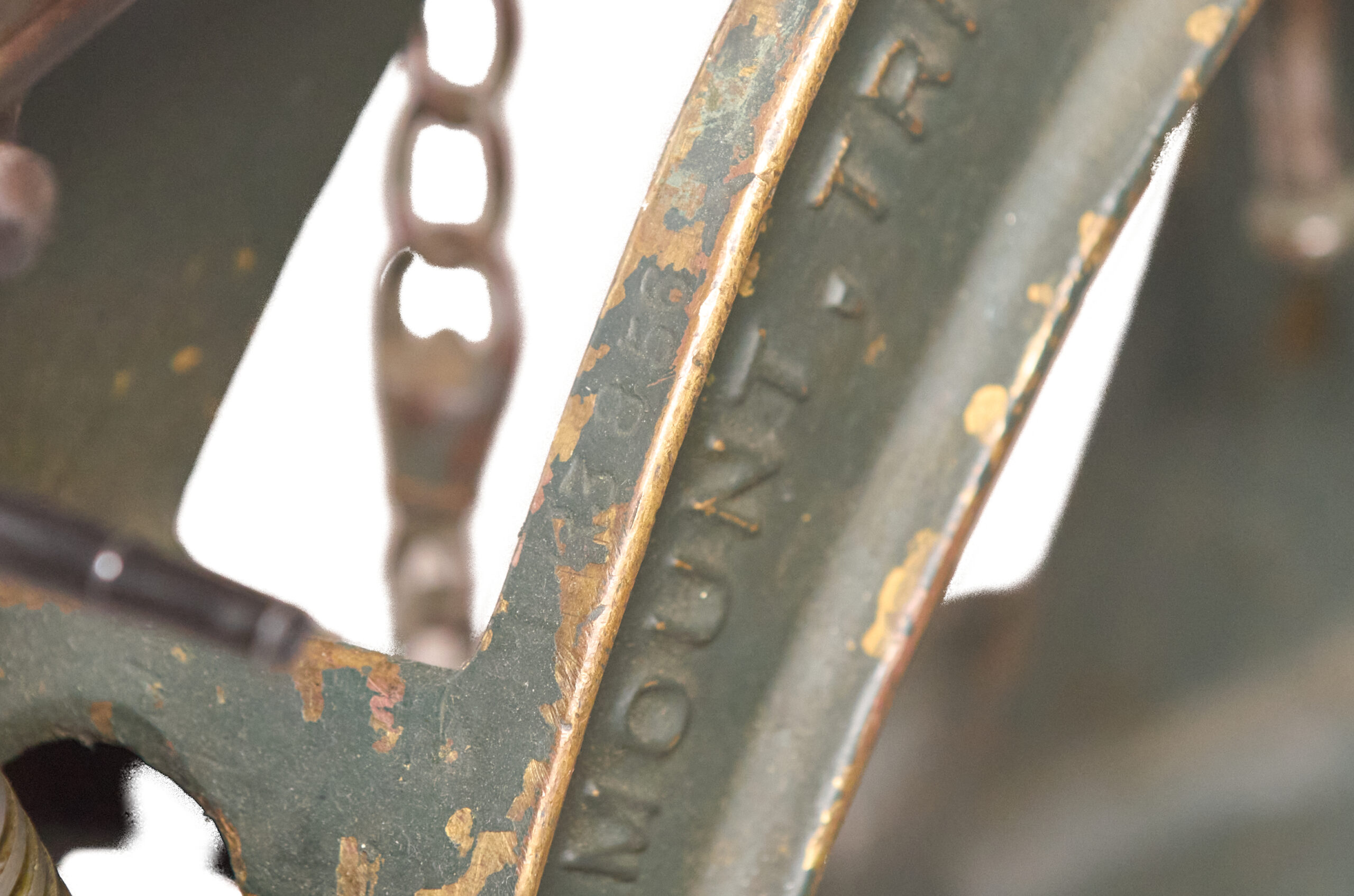

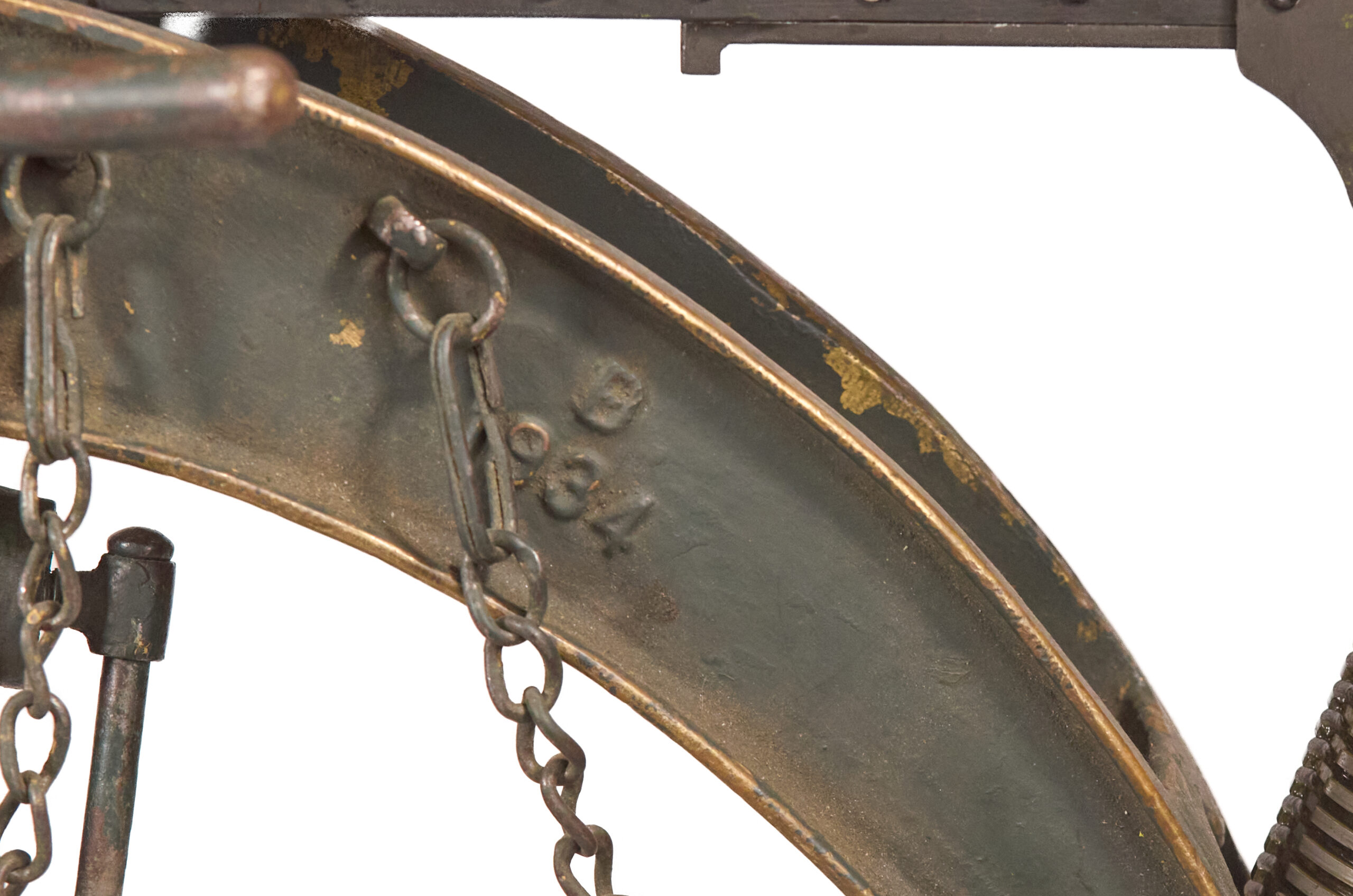

The tripod marking on the curved mount reads MOUNT. TRIPOD. MG. MK. IV. The side-cast marking style fits the later Mark IV / Mark IVB family of Vickers tripods. Additional small marks appear on the tripod, but the photographs do not show them clearly enough to read with confidence.
Construction / Configuration / Pattern

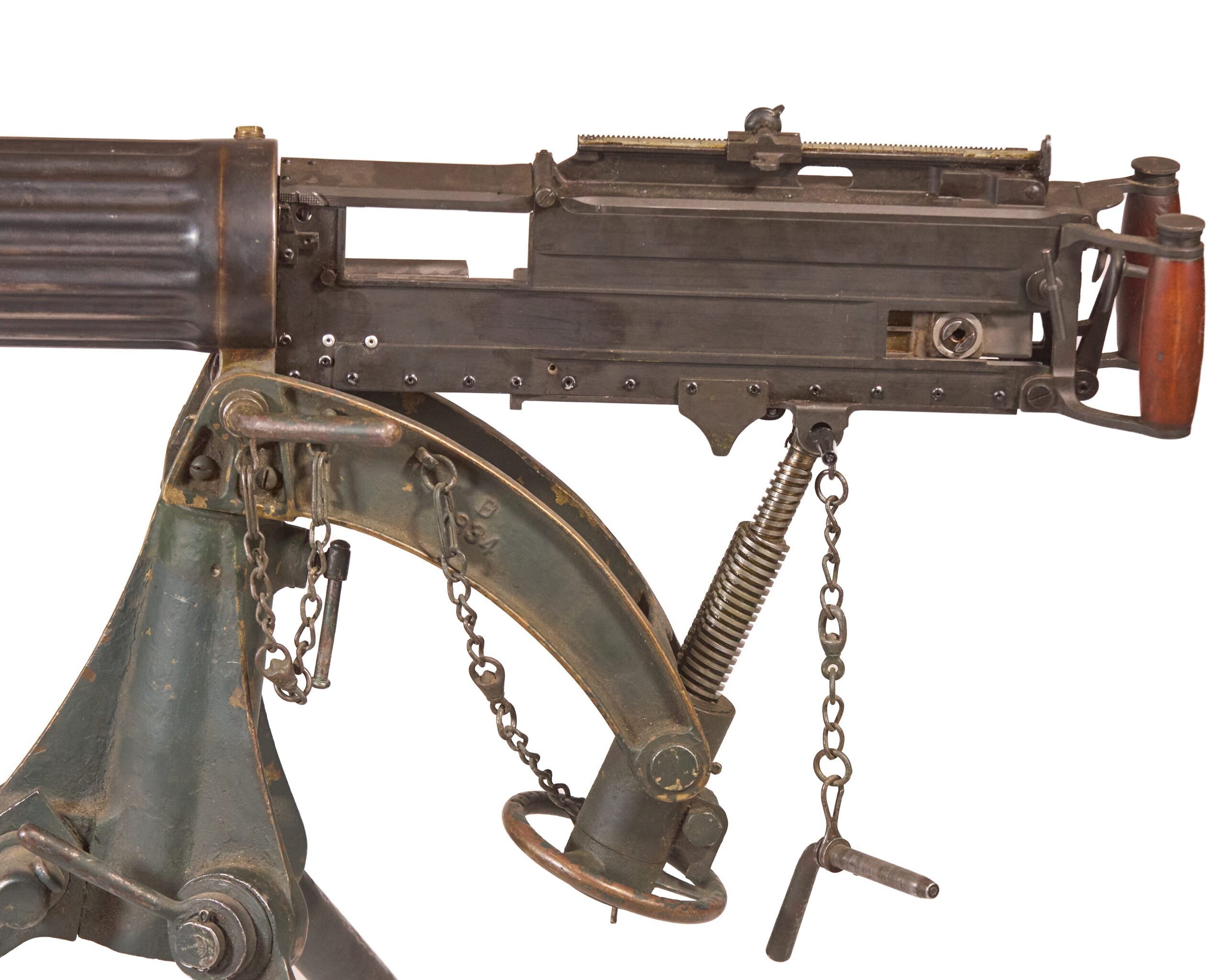

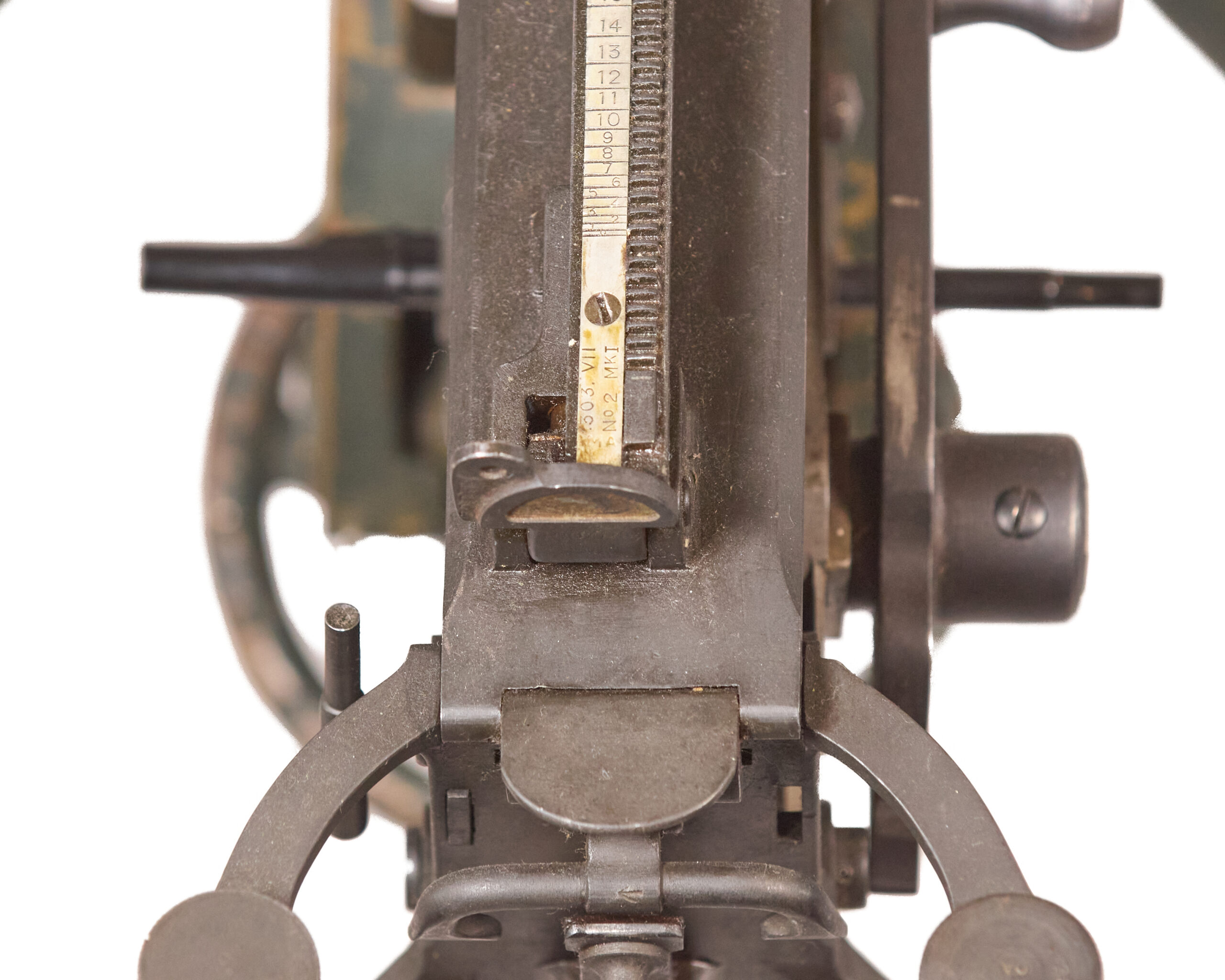

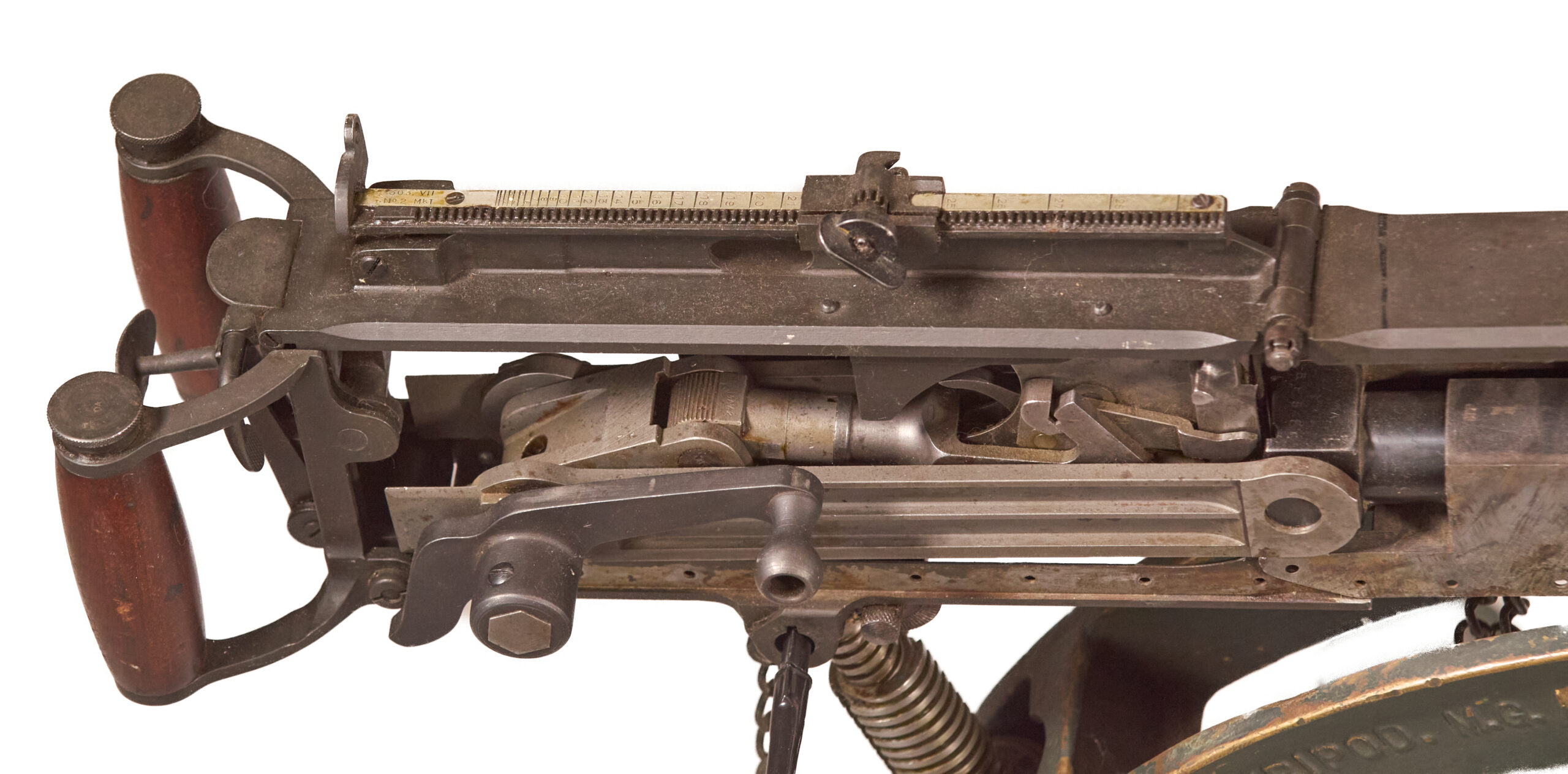

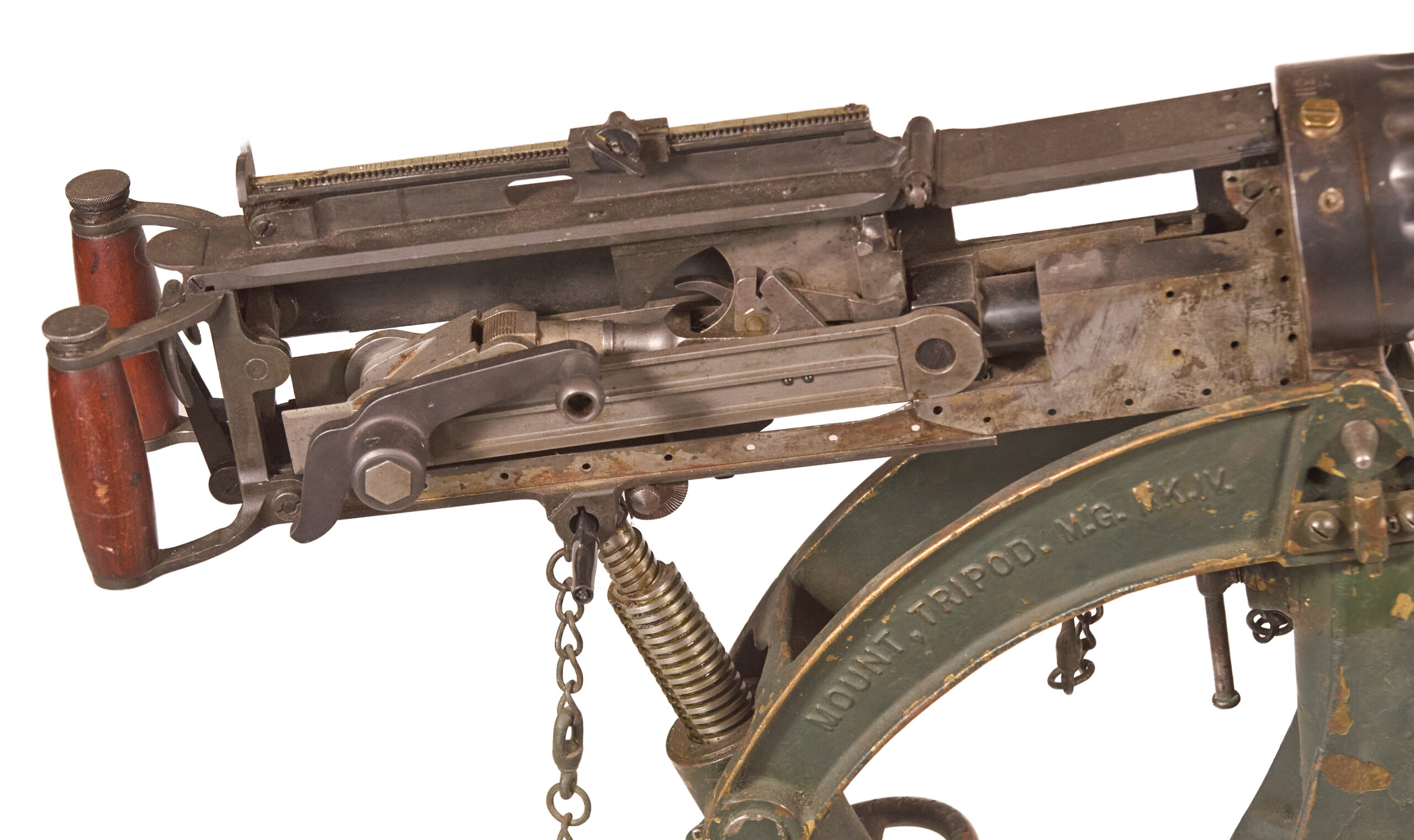

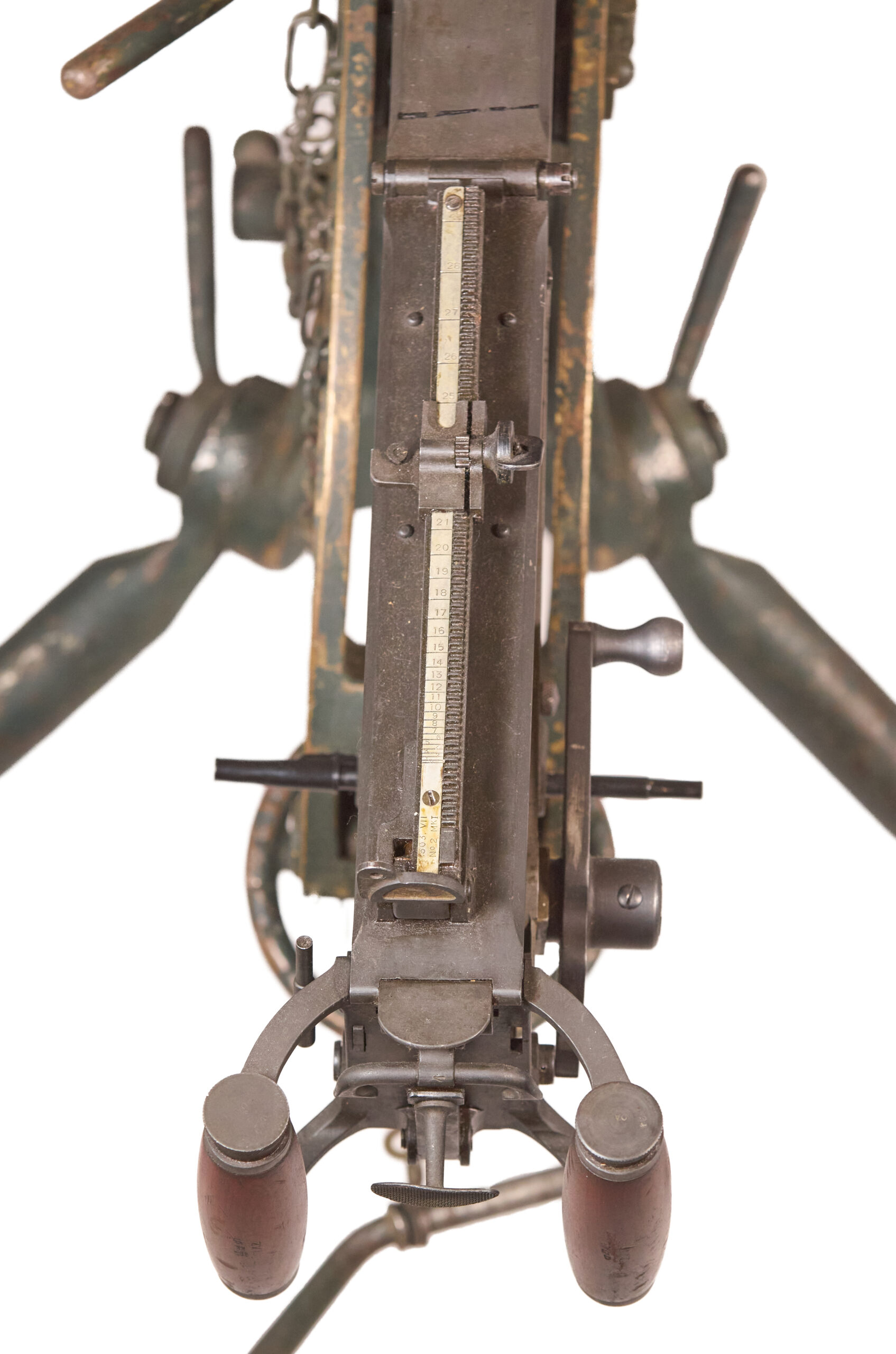

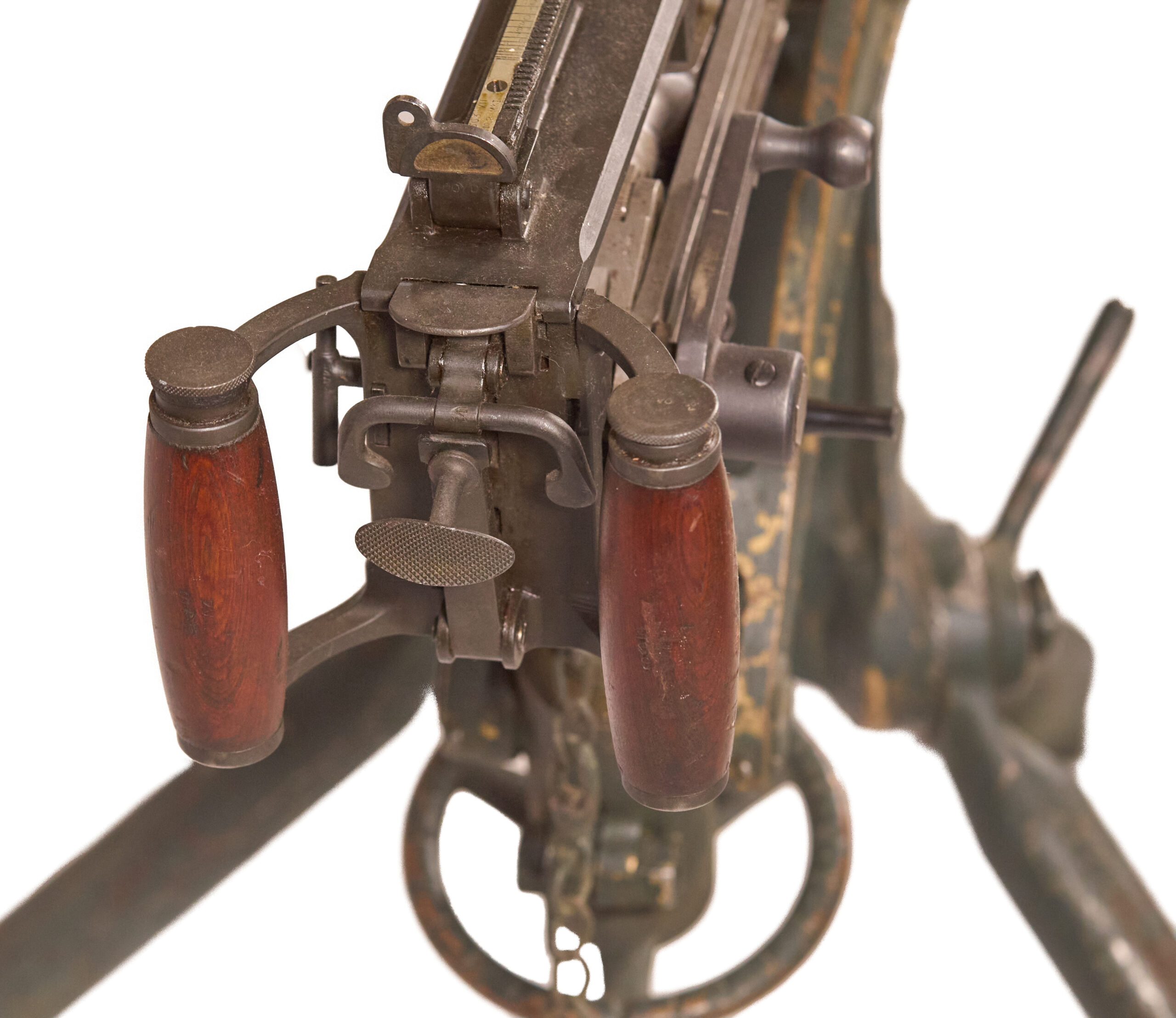

The gun has a rectangular box-section receiver with the feed and sight assembly along the top. The tangent rear sight remains in place and shows its graduated range scale. The right side shows the cocking lever and exposed operating components. The rear has the twin wooden spade grips, metal grip caps, and central thumb-trigger arrangement.

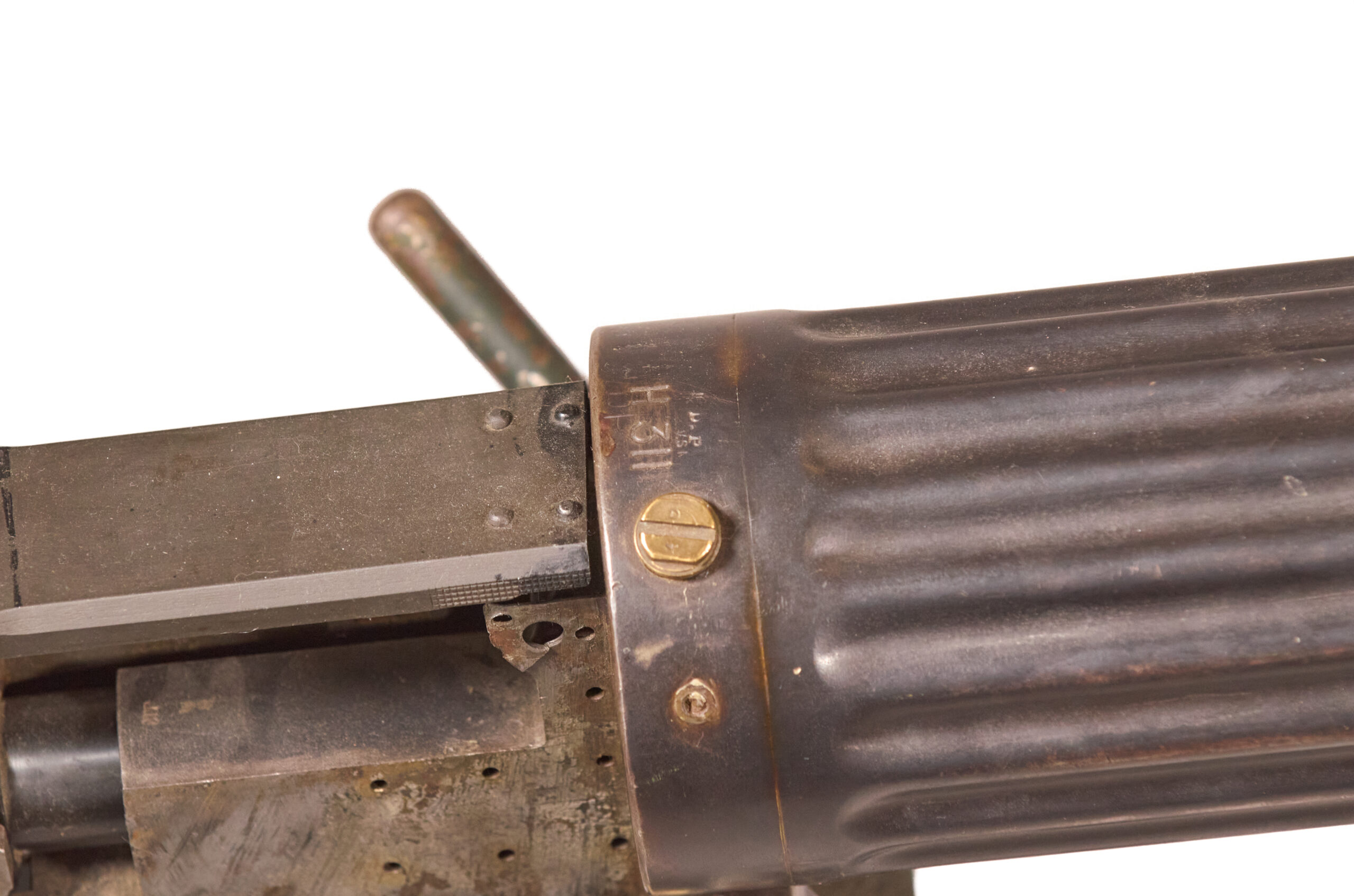

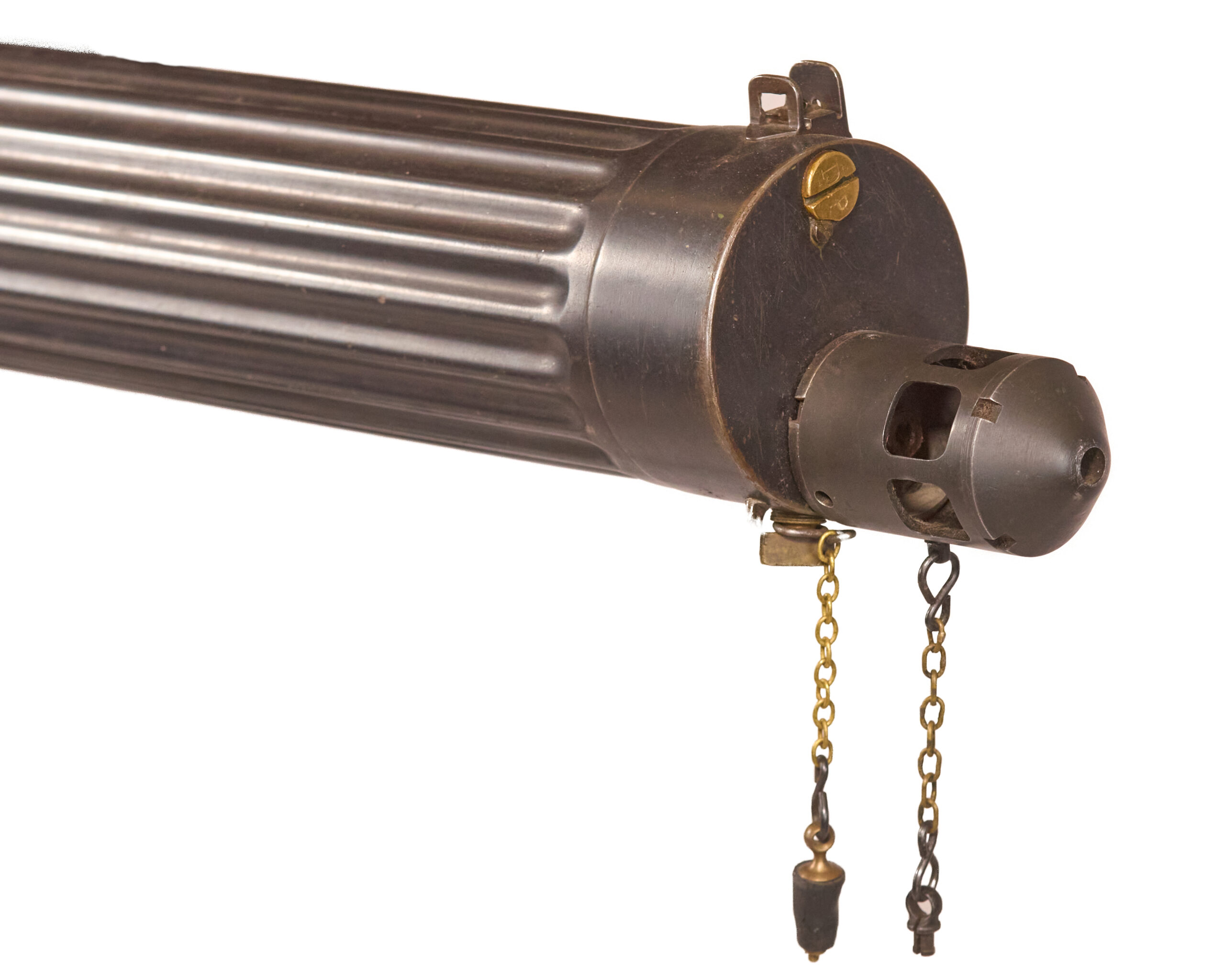

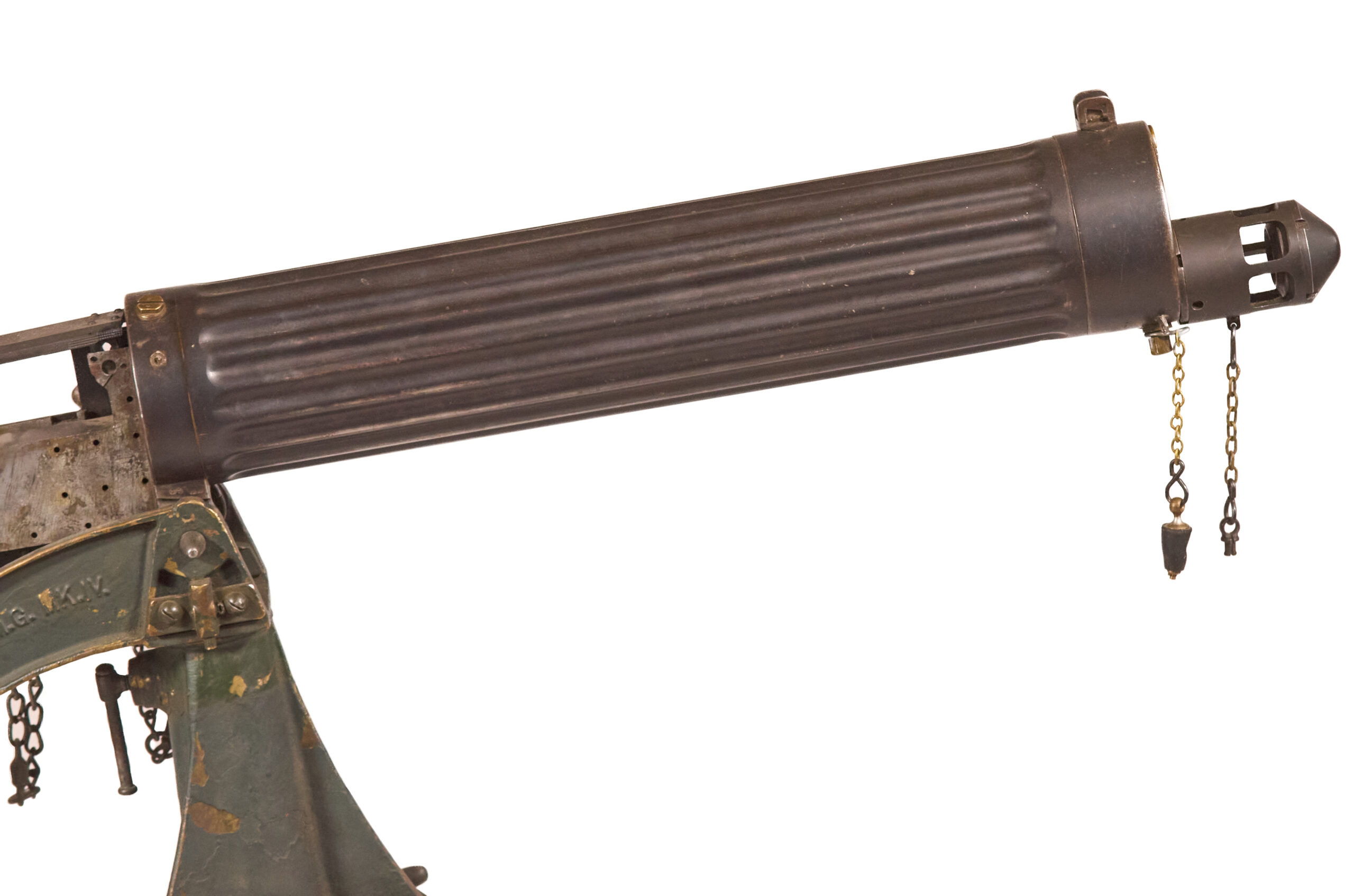

The water jacket is fluted and finished in a dark blued or browned surface. It has the top filler plug, forward fittings, and chain-retained water or steam fittings visible at the front. The muzzle has the recoil booster assembly fitted. No condenser hose, condenser can, ammunition belt, or ammunition box appears in the photographs.

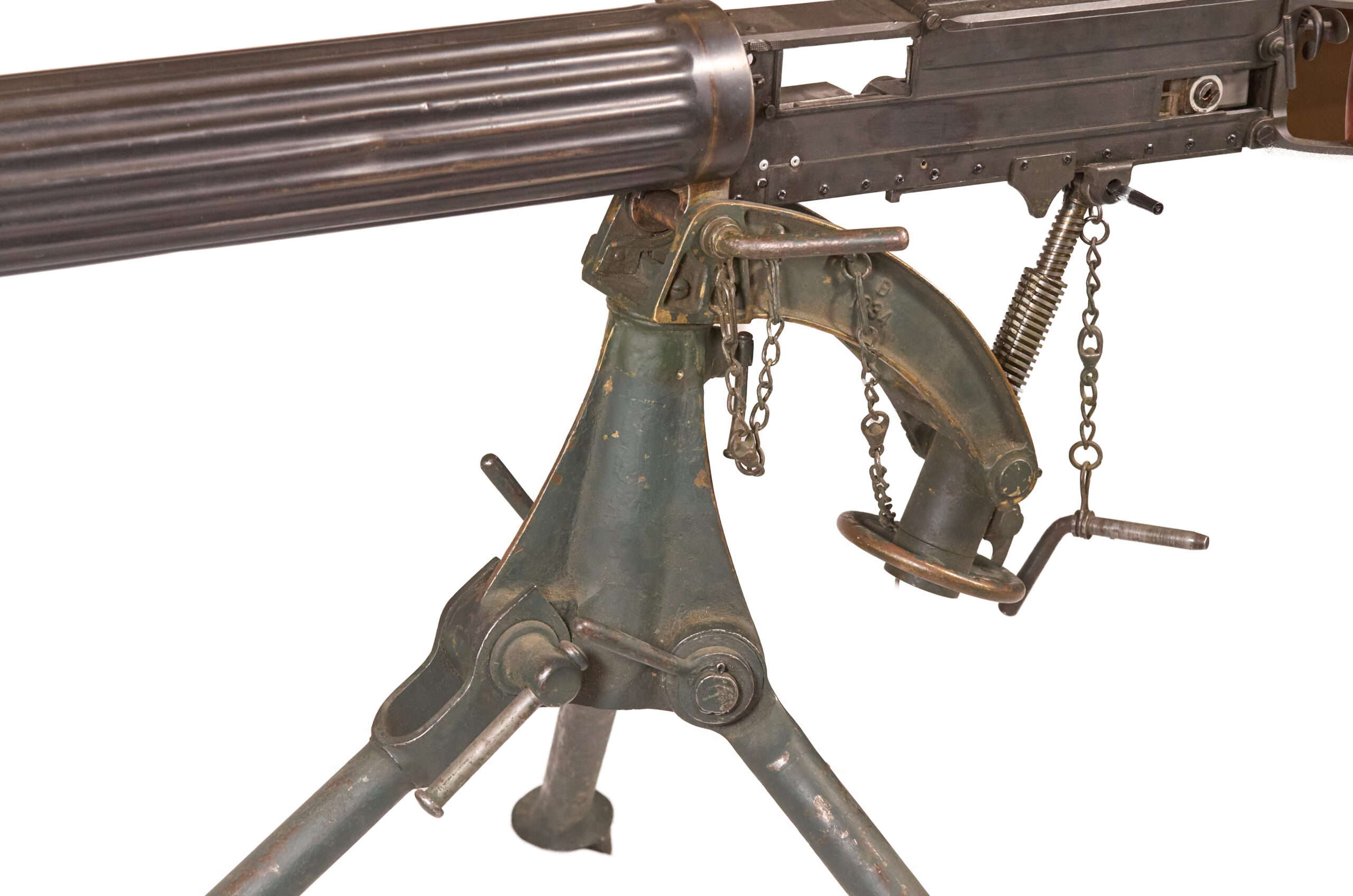

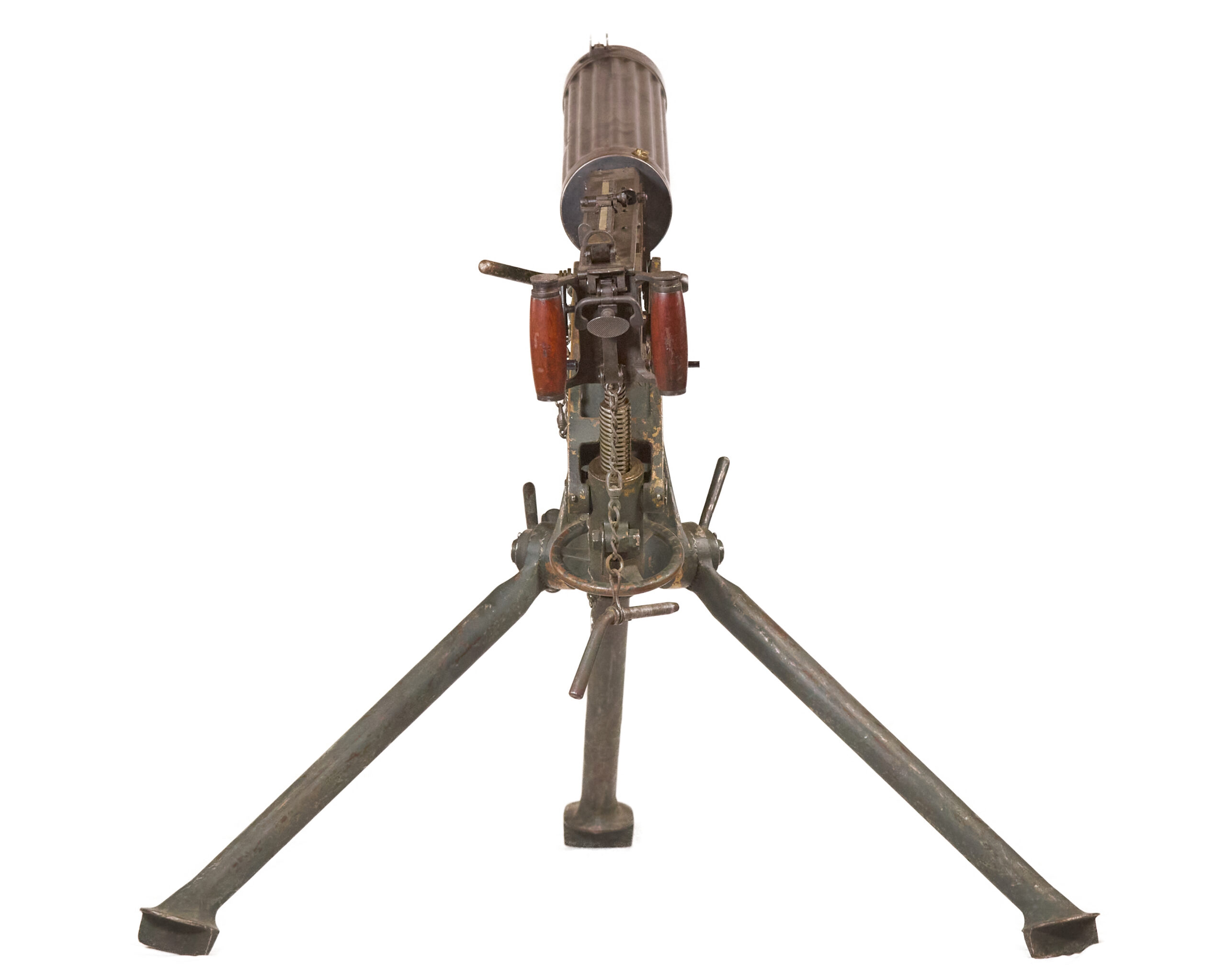

The Mark IV tripod has a green service finish over steel and brass or bronze components. It includes the curved traversing arc, elevation gear, retaining chains, adjustment handles, three legs, and broad foot pads with spade points. The cast tripod nomenclature remains clear on the curved side member. The paint loss along raised edges exposes yellow metal beneath the finish, especially on the tripod arc and high-contact areas.
Historical Context / Pattern Development
The British Army adopted the Vickers Mark I in 1912 after trials of earlier Vickers water-cooled designs. The gun came from the Maxim operating system but used a lighter, refined body and a British service configuration chambered for .303 British. It remained in use through the First World War, the Second World War, Korea, and later postwar service.
The Vickers served as a crew-operated medium machine gun. Its water jacket allowed long periods of fire when the crew maintained ammunition, cooling water, and spare equipment. The Mark IV tripod gave the gun a stable firing platform. It also allowed controlled traverse and elevation for deliberate fire.
The fluted water jacket is an important visual feature. Earlier ground guns used this corrugated jacket style. Later production moved toward smooth jackets because they were simpler to manufacture. As a result, a fluted-jacket Vickers has a distinctly early appearance, even when later parts or mounts appear with the gun.
The Mark IV tripod also had a long service life. Early and later Mark IV tripods show differences in nomenclature placement and crosshead details. The side-cast marking on this example places it within the later Mark IV style commonly associated with Mark IVB-type tripods, though the broader Mark IV identification remains the safest catalog description from the photographs.
Condition
The gun shows age, service wear, and handling wear throughout. The receiver has a mixed dark and gray metal surface with scattered patina, oxidation, and old oil or storage residue. Rivets, side plates, cocking lever, rear sight, and grip frame remain visible and well defined. The exposed receiver areas show finish loss and darker spotting.

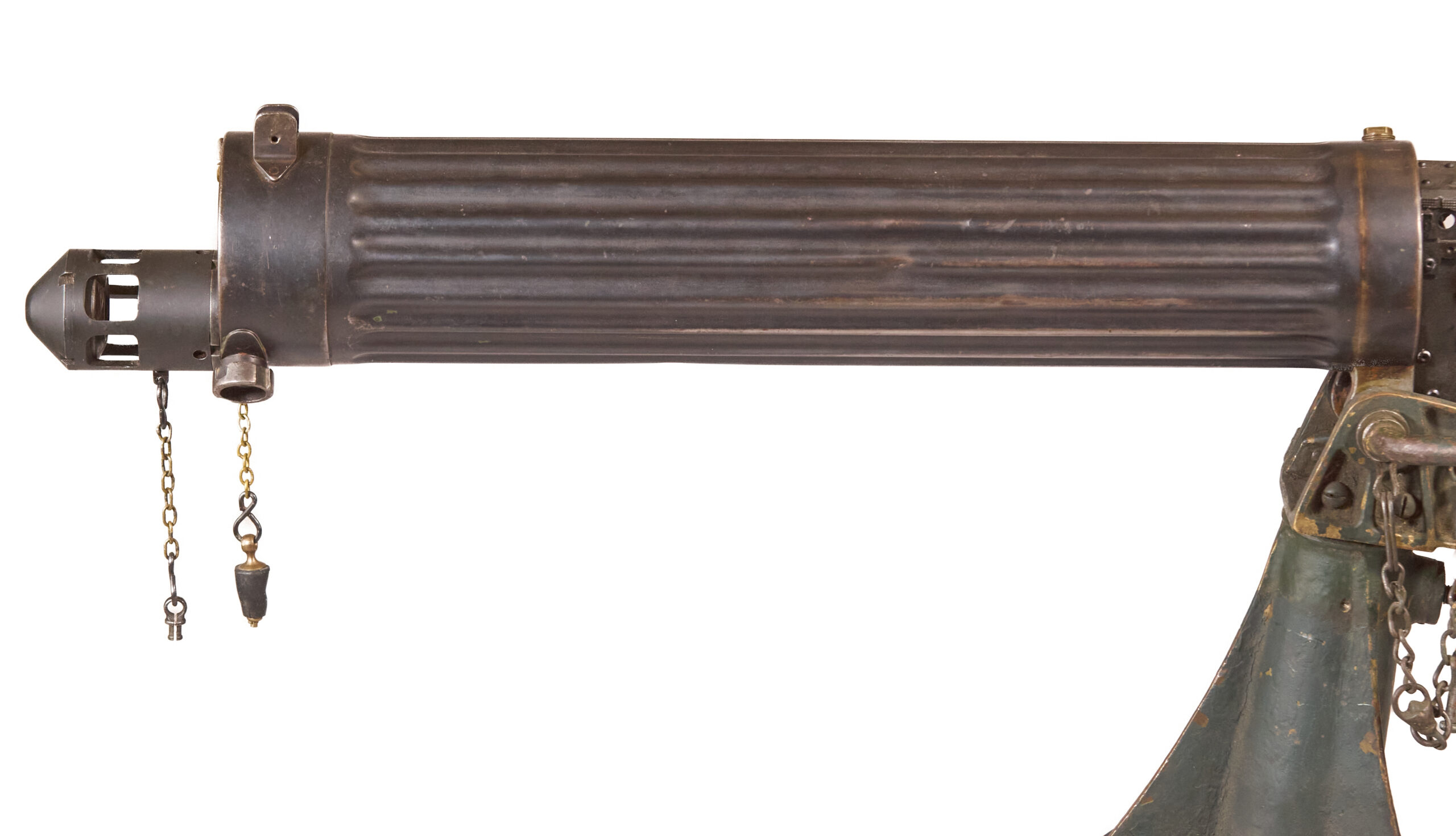

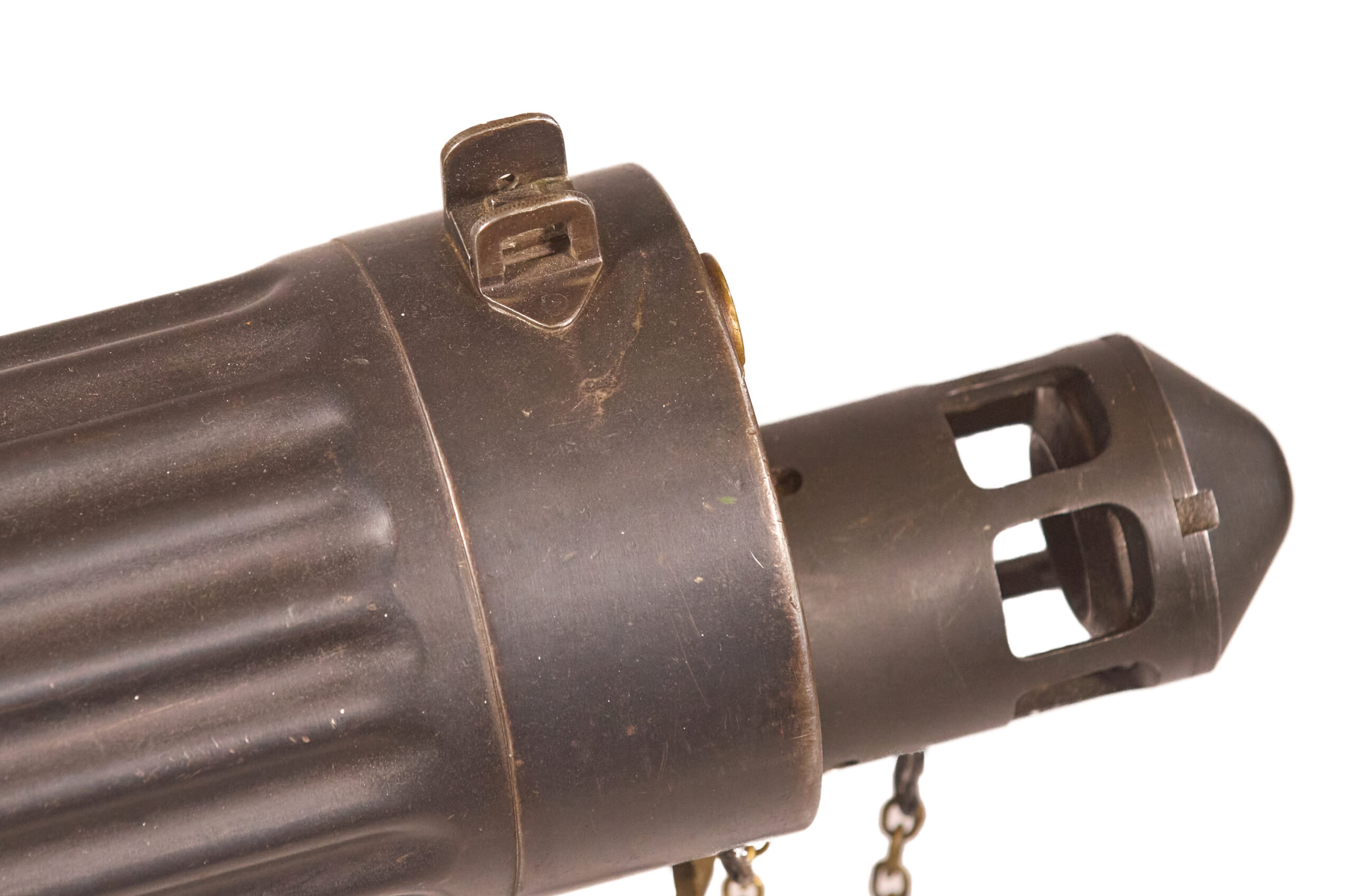

The fluted water jacket retains a strong profile. Its finish shows thinning, rubbing, and age toning along the ribs and end collars. The muzzle booster is present. The chain-retained front fittings remain attached. The top water plug is also present.

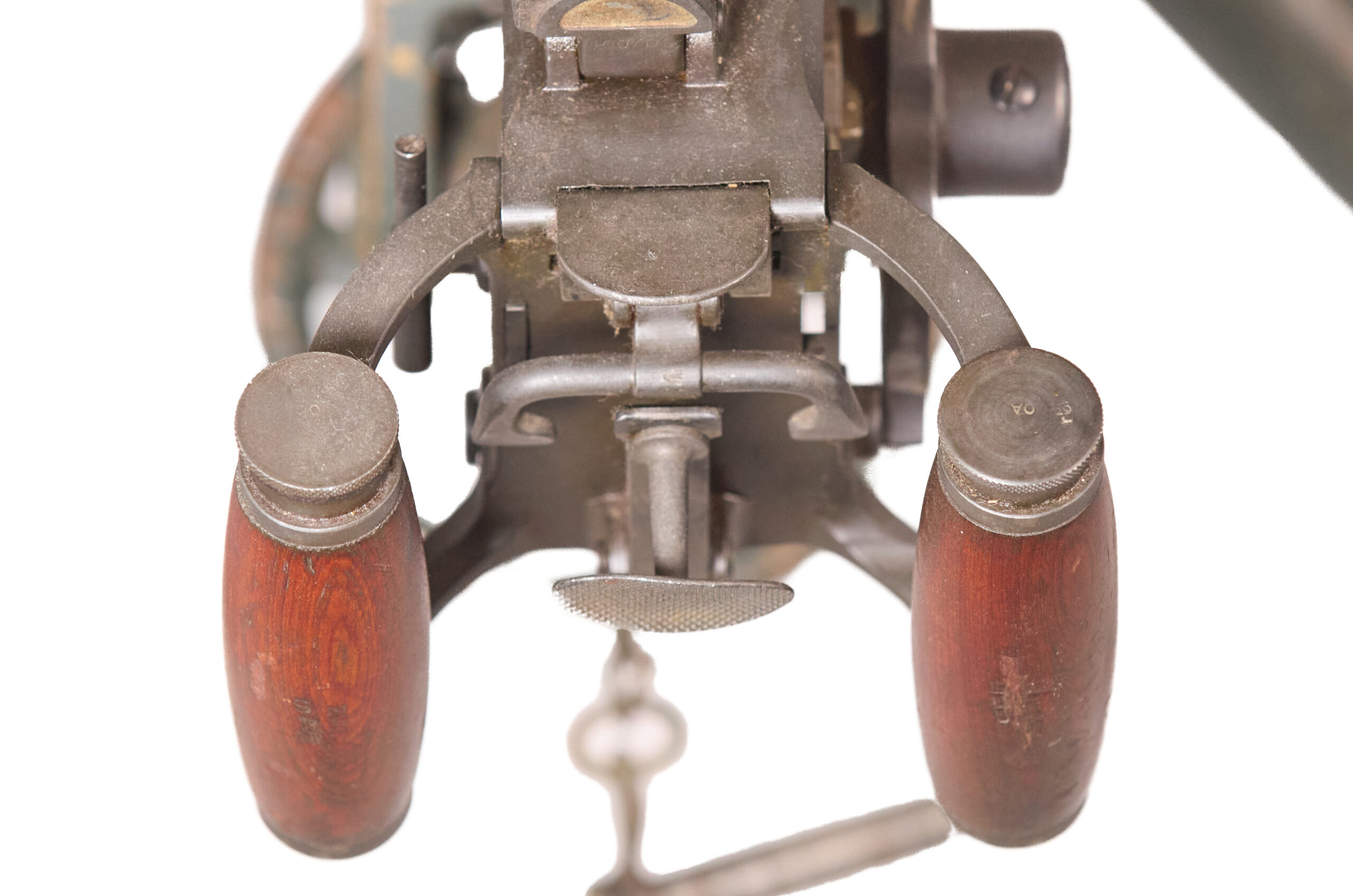

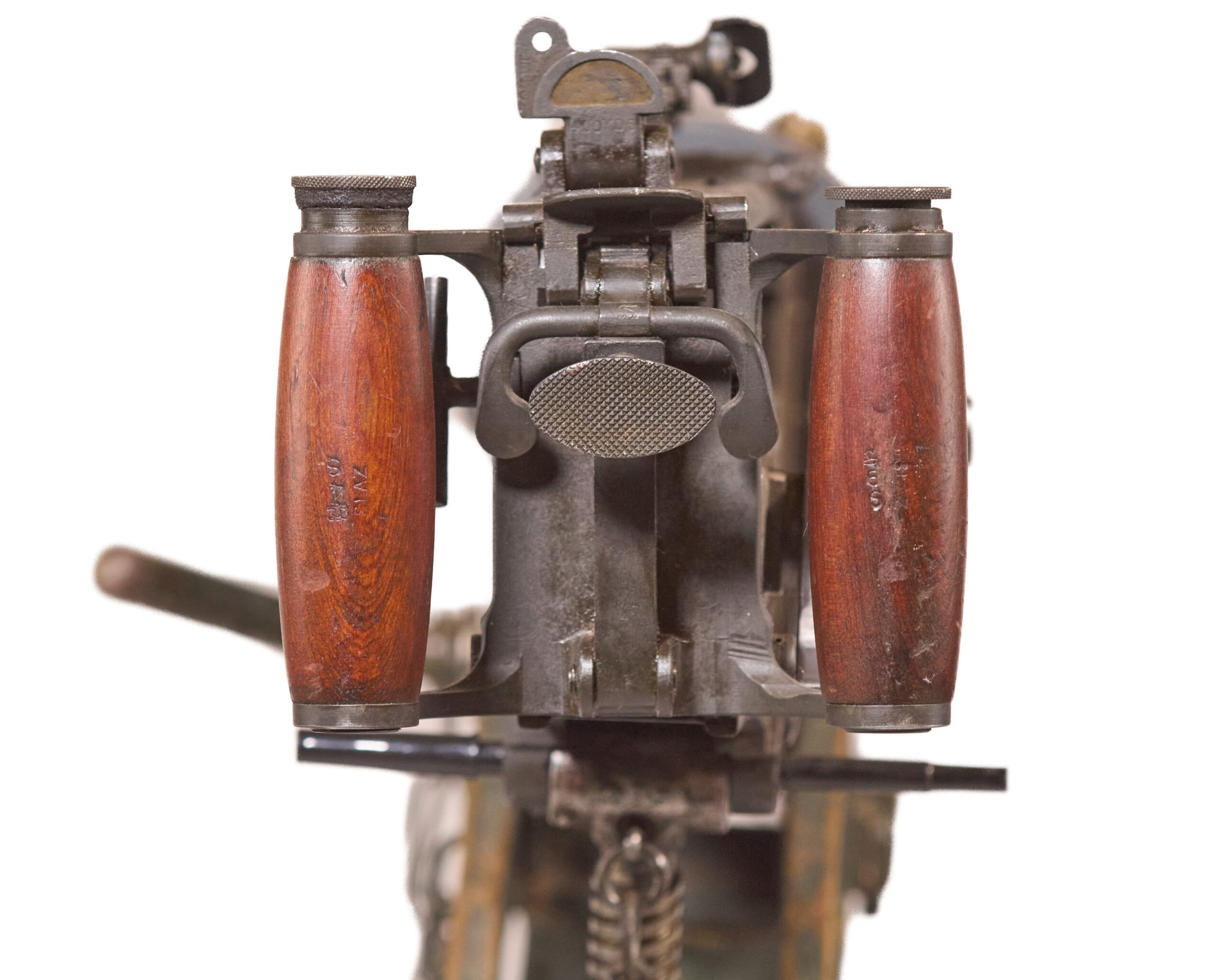

The wooden spade grips are intact and retain a warm reddish-brown finish. They show small dents, scratches, and handling marks. The metal grip caps show age and surface wear, with some stamped markings still visible.
The tripod presents well and appears structurally strong. The green paint shows chips, scuffs, rubbed edges, and areas of exposed brass or bronze beneath the finish. The curved Mark IV marking remains clear. The legs, foot pads, retaining chains, adjustment handles, and traversing/elevating hardware appear present in the photographs. The tripod has honest field and storage wear, but it still displays with a strong service appearance.
