Colt Marlin M1895 Display Machine Gun – Original Marlin “Potato Digger” Display Set

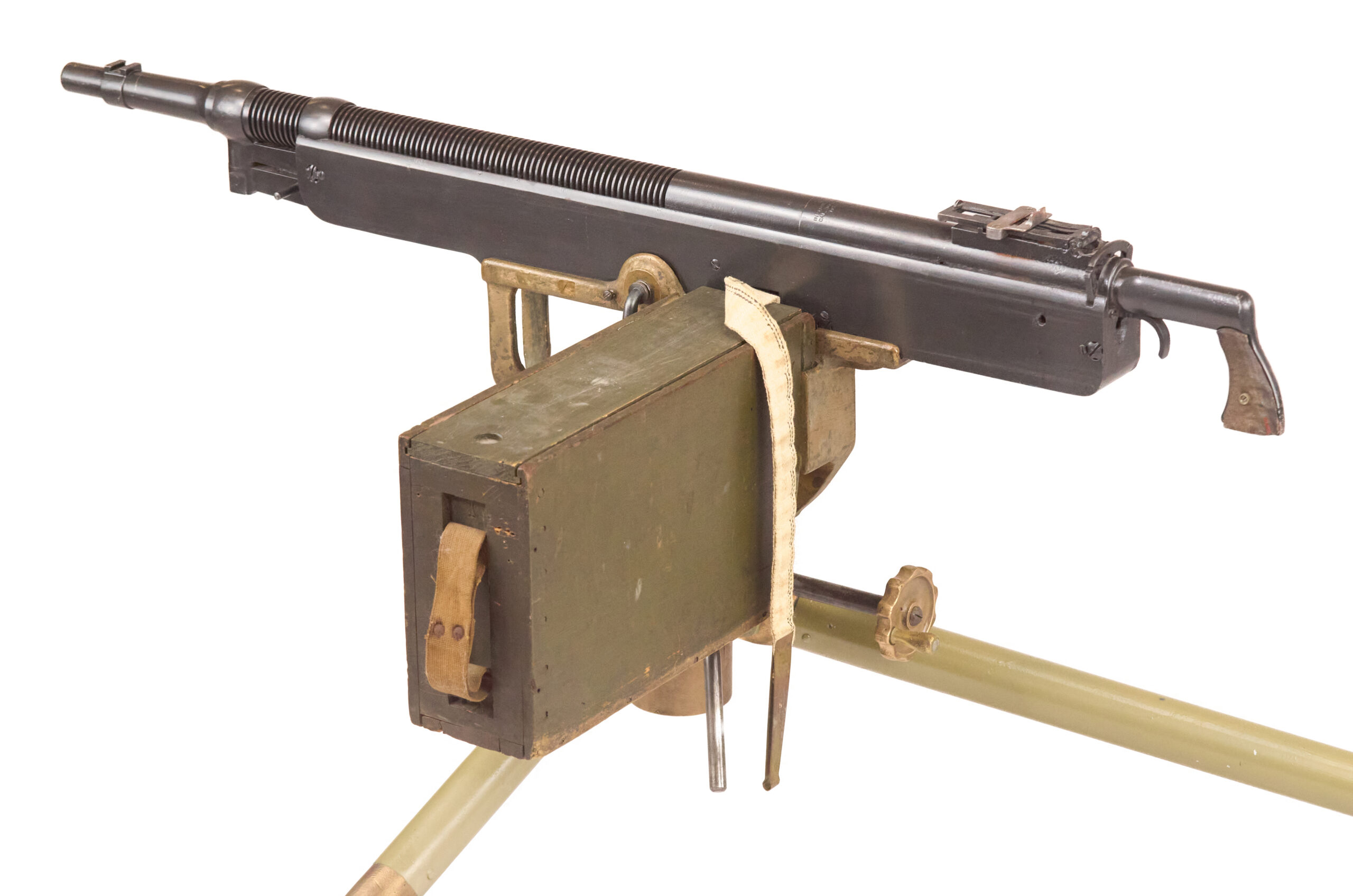

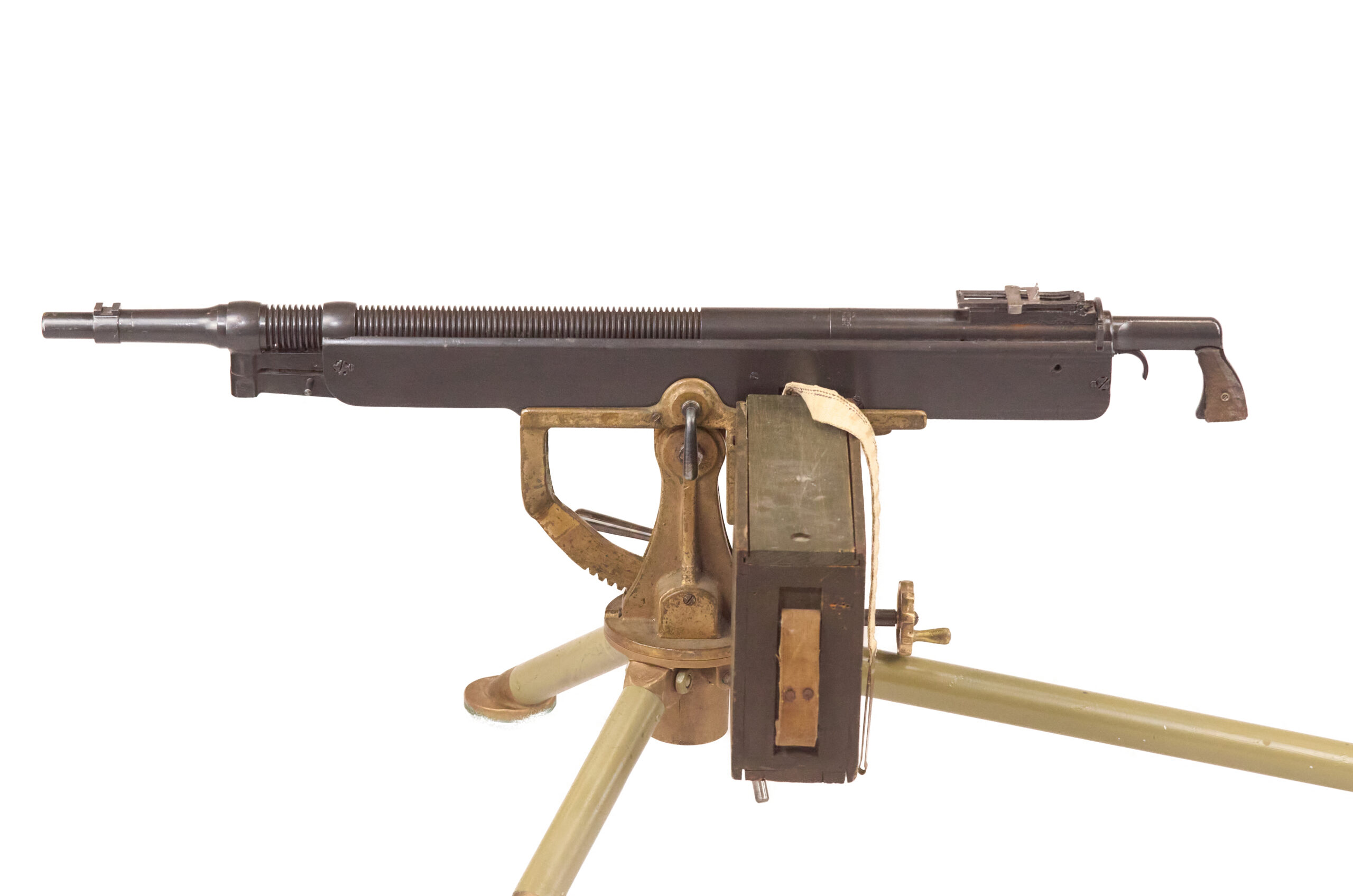

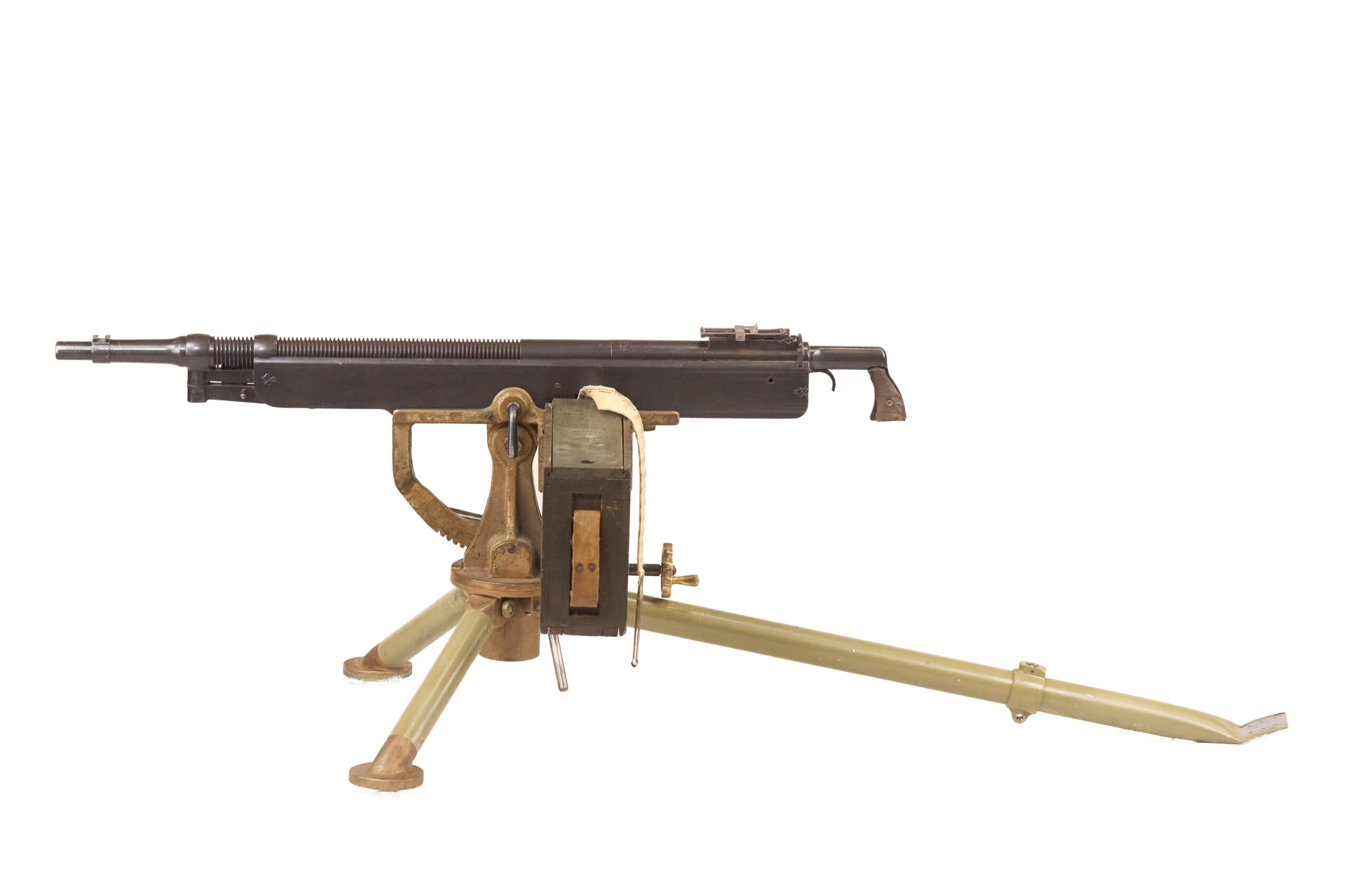

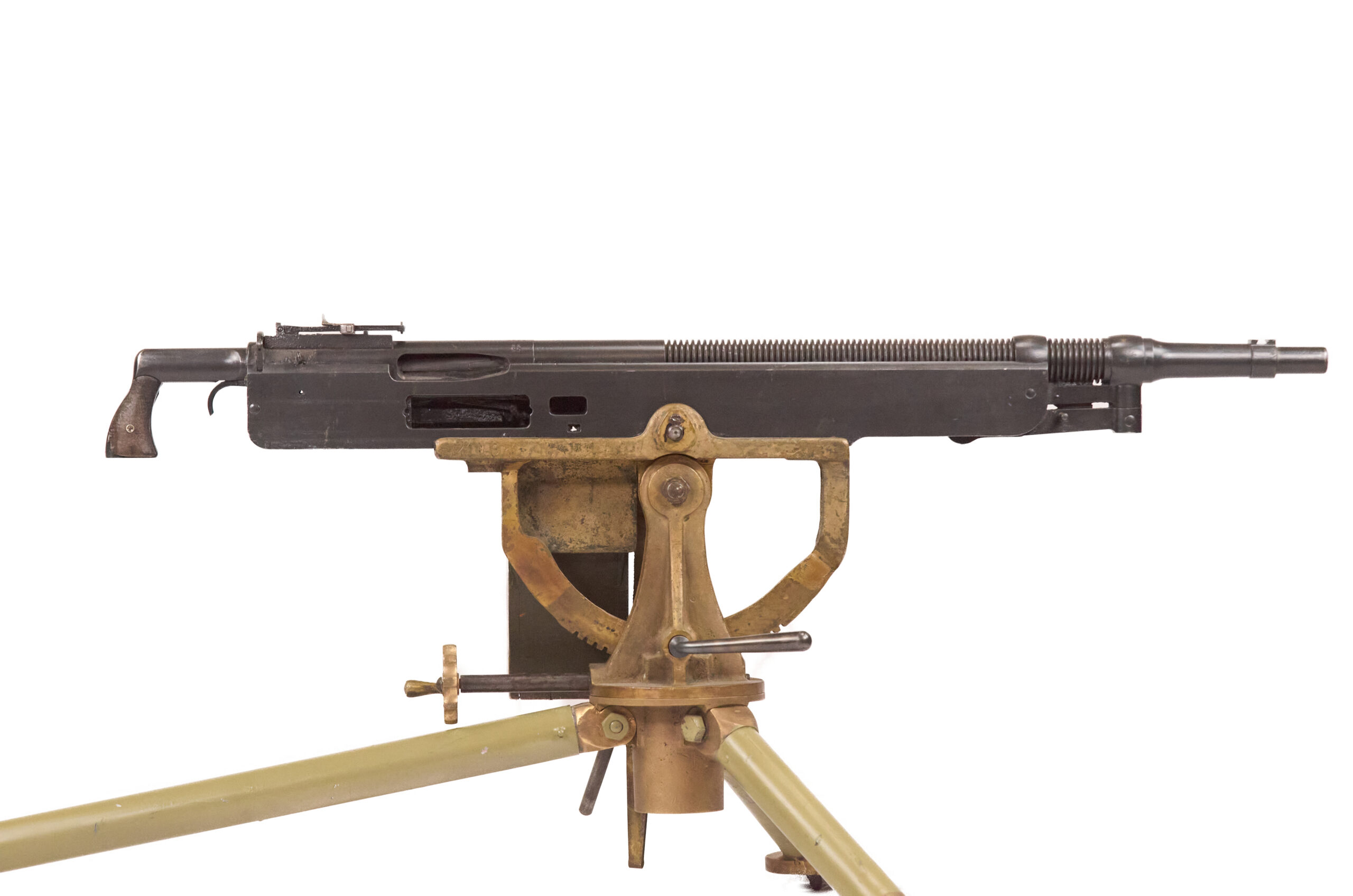

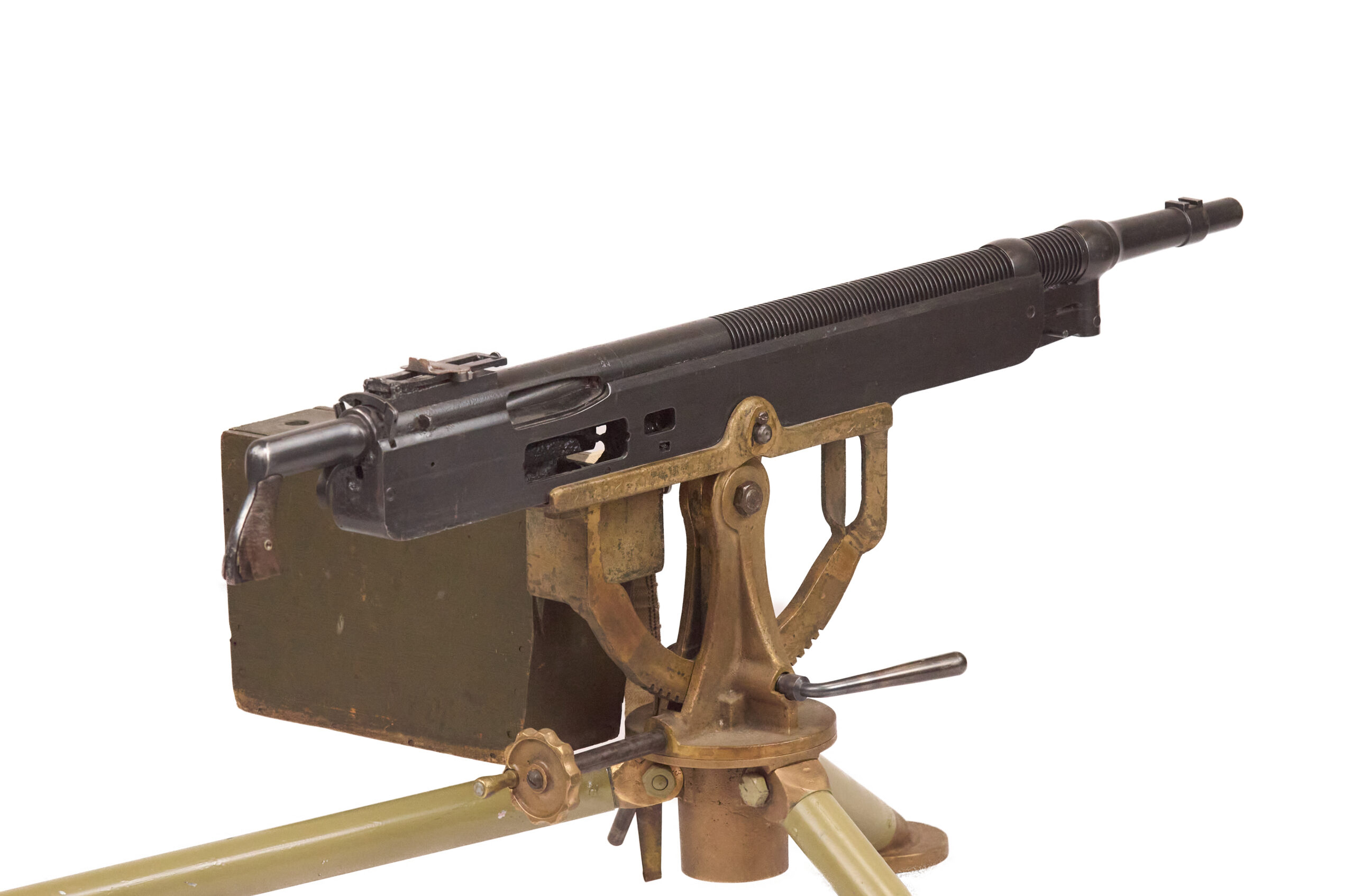

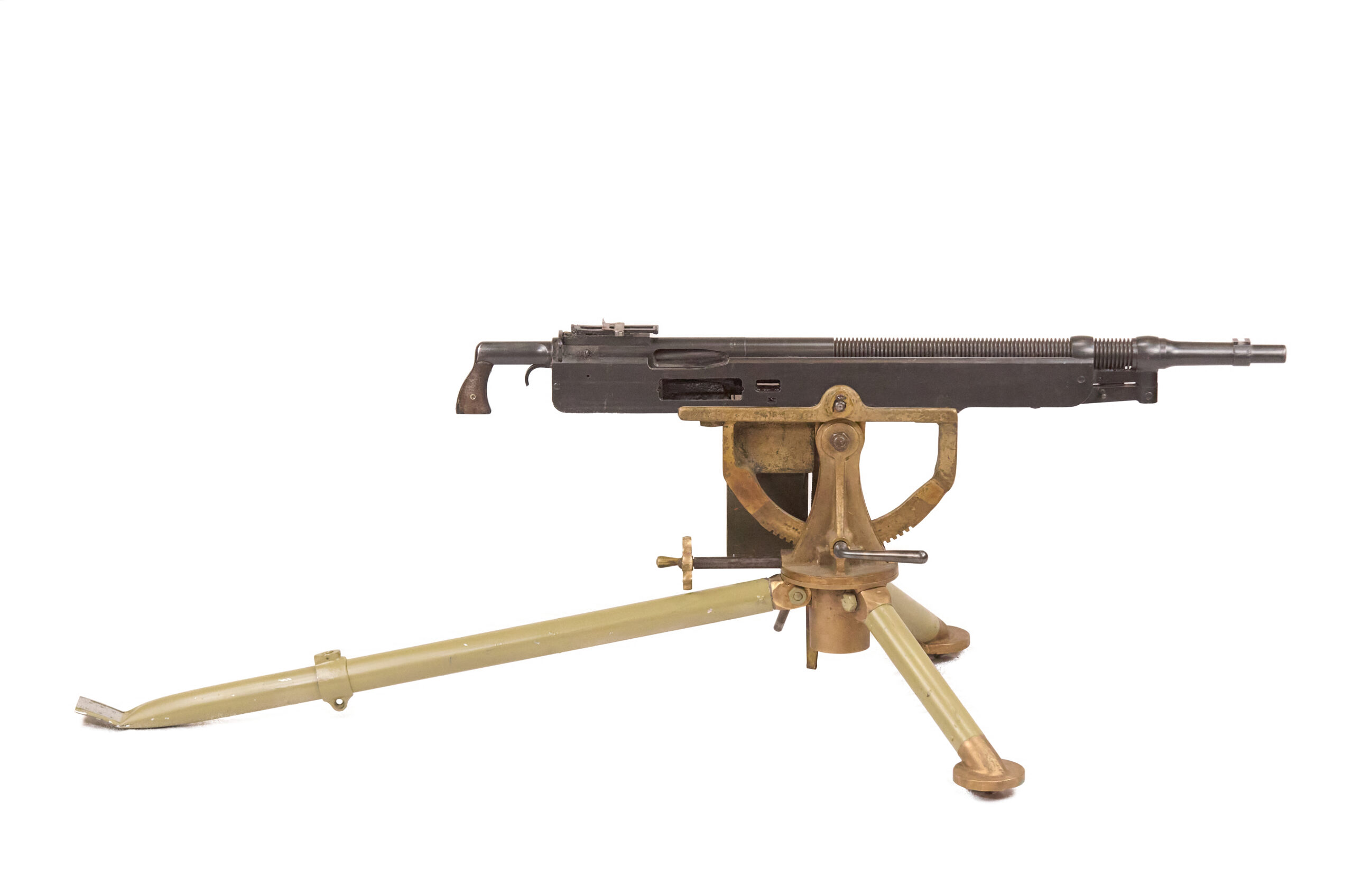

This Colt Marlin M1895 display machine gun is a substantial non-firing display set built around an original demilled Marlin-made “potato digger” with tripod, ammo box, 250-round Browning cloth belt, and manual. The gun remains in excellent demilled condition overall. It shows expected wear from use, with only mild pitting in sparse areas. The barrel is original to the receiver, and the serial numbers match. Together, the gun and its accessory group present as an excellent early American machine gun display with strong mechanical and historical character.
Colt Marlin M1895 Display Machine Gun
The Colt–Browning M1895 earned the “potato digger” nickname from its unusual operating system. Gas from the barrel drove an external lever downward, and when the gun sat too low to the ground, that lever could strike the earth and throw dirt. John Browning and Matthew S. Browning based the design on work dating to 1889, and the M1895 became the first successful gas-operated machine gun to enter service. Marlin later took over production after acquiring Colt’s tooling and machinery in 1916, and Marlin-made examples are widely regarded as especially desirable variants of the type.
Construction / Configuration / Pattern

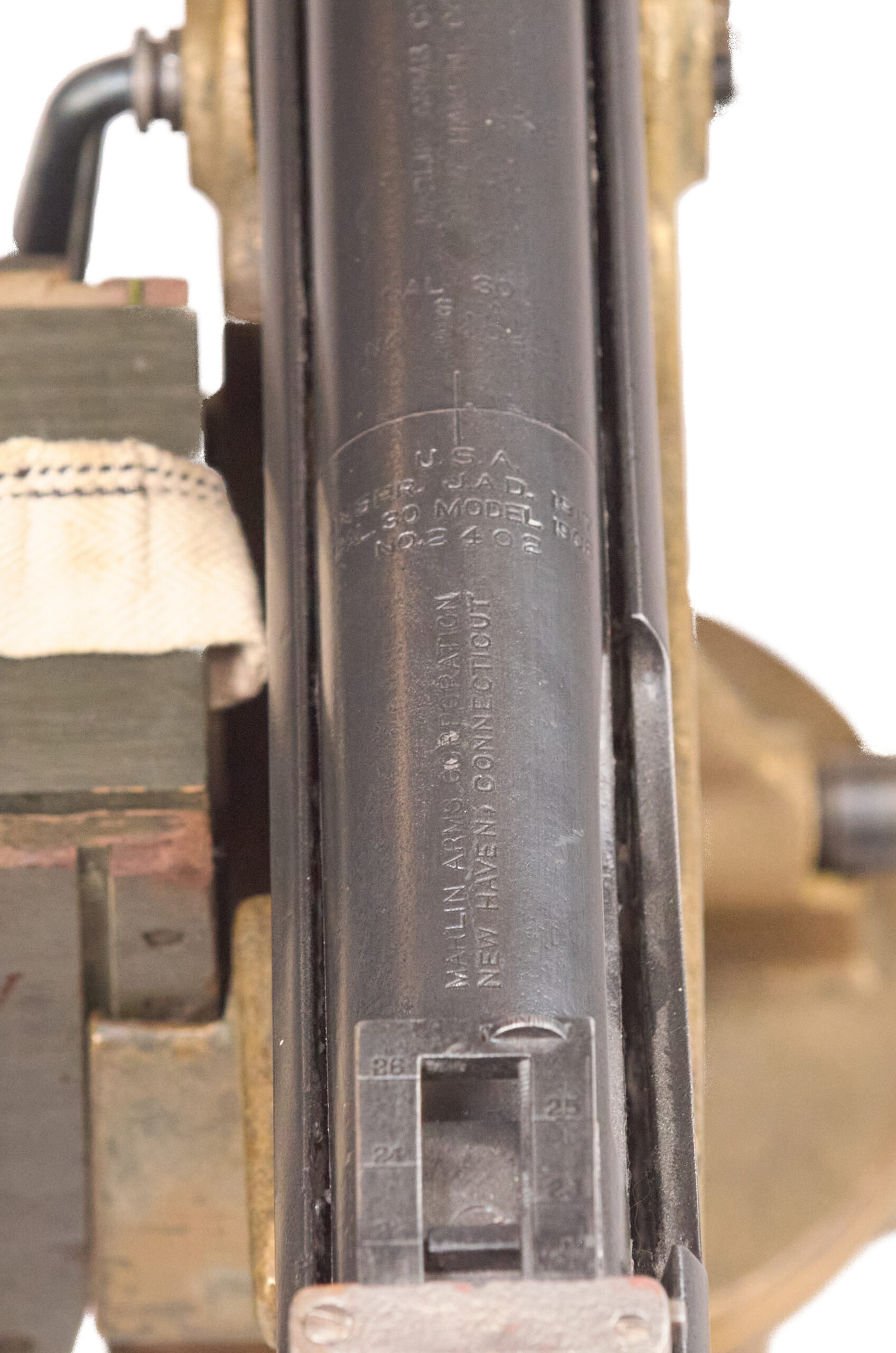

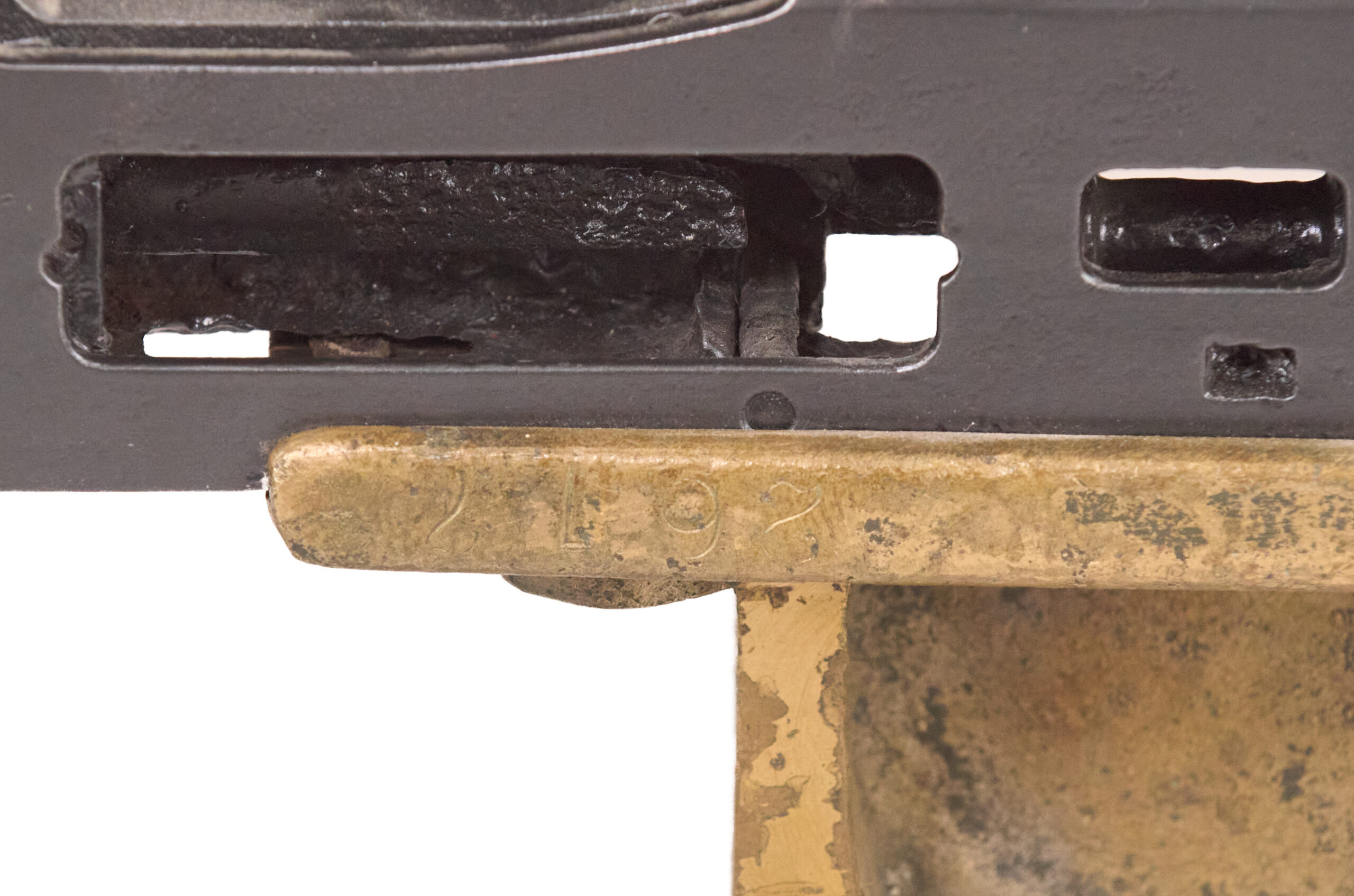

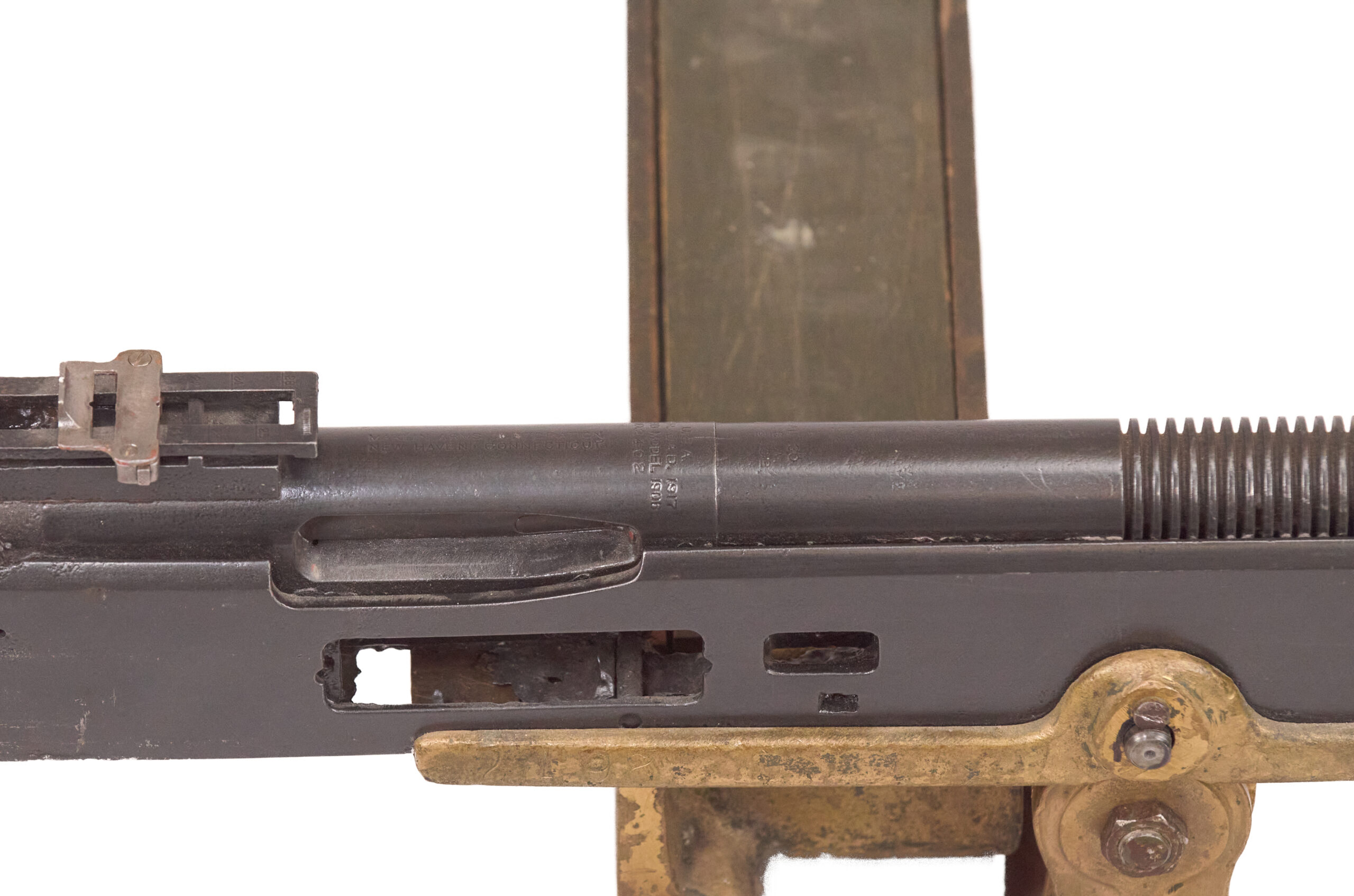

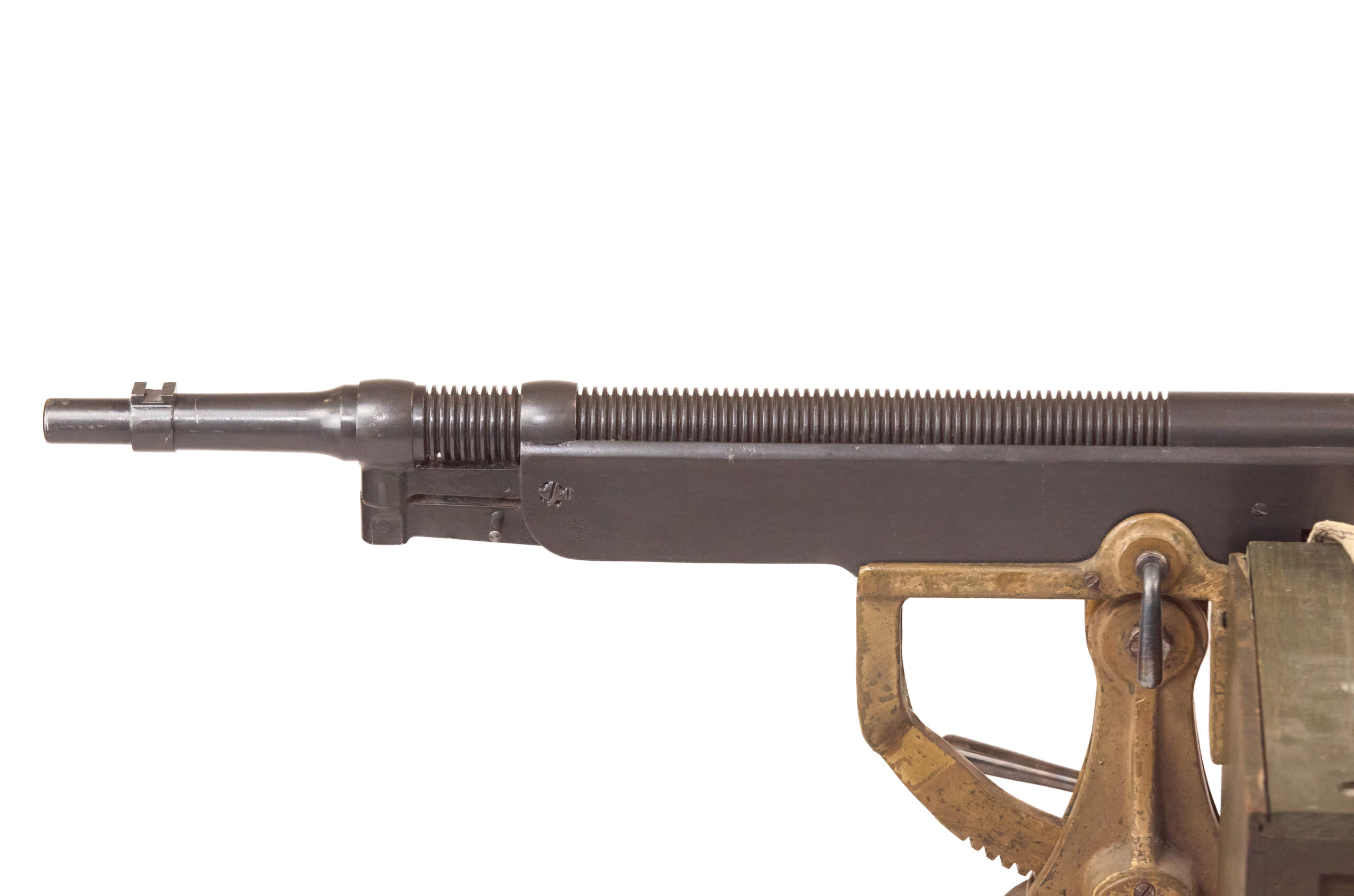

This inert BATF non-firing display example is built on an original re-welded receiver, with a 20 percent section replaced by solid steel bar stock. The finish was redone in gunmetal gray. The gun is serial numbered 2402 on both the receiver and the barrel, and it was manufactured in .30-06 with a 28-inch barrel. It is marked on the top of the receiver and on the matching barrel:
MARLIN ARMS CORPORATION
NEW HAVEN, CONNECTICUT
The end of the receiver is correctly marked:
U. S. A.
INSP. J. A. B. 1917
CAL 30 MODEL 1906
NO. 2402

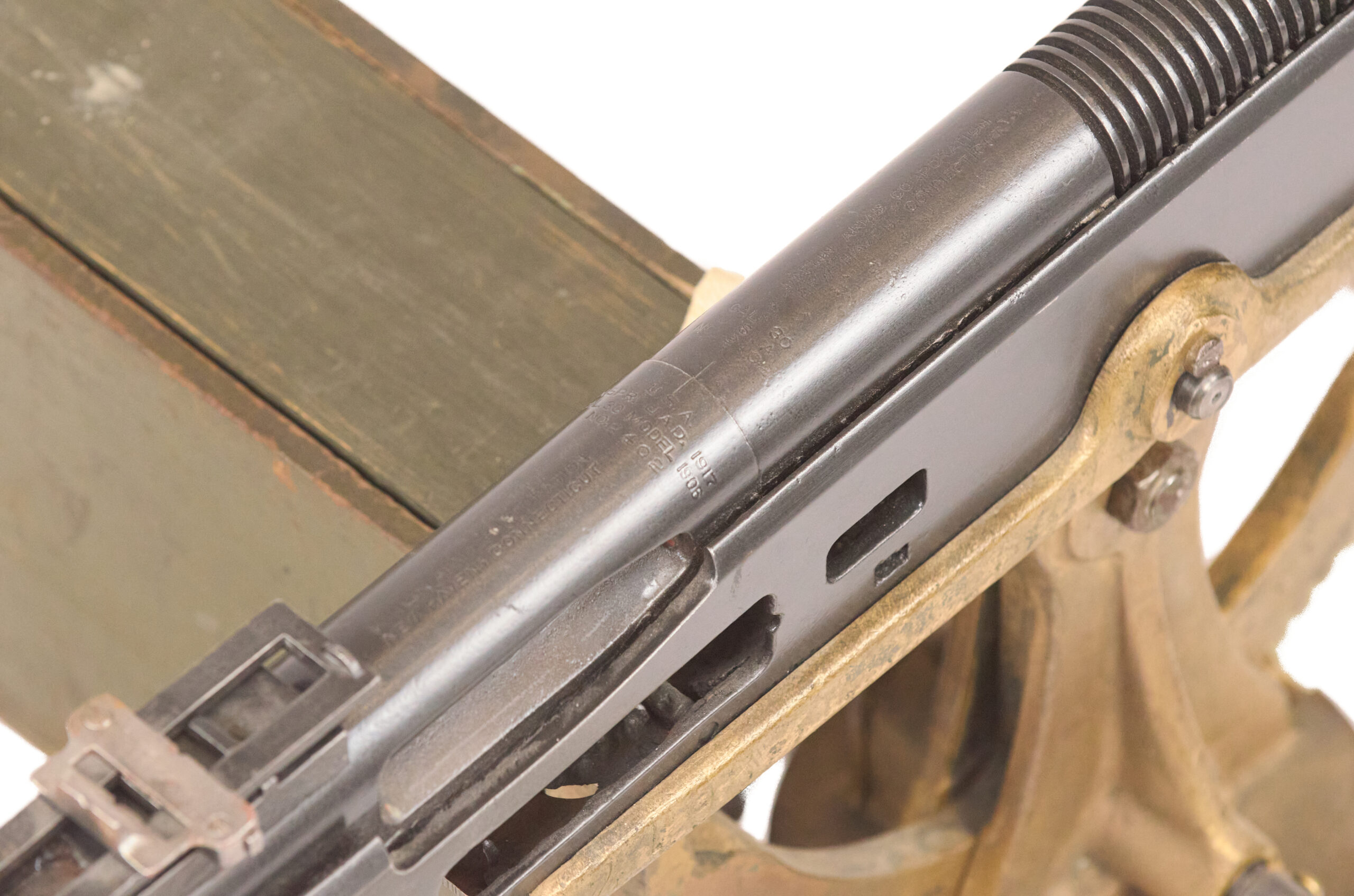

The end of the barrel is also marked:
CAL 30
U. S. A.
NO. 2402

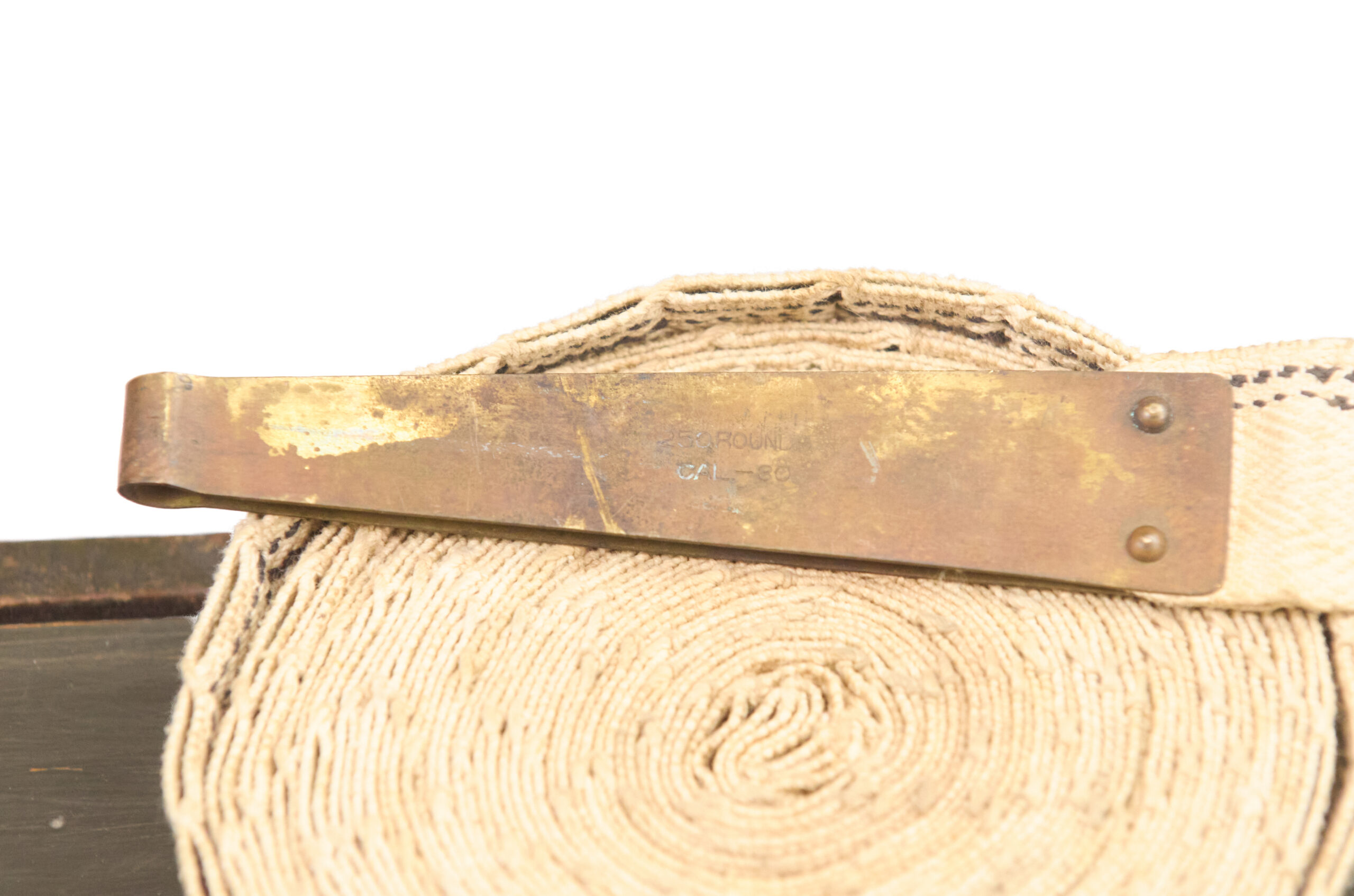

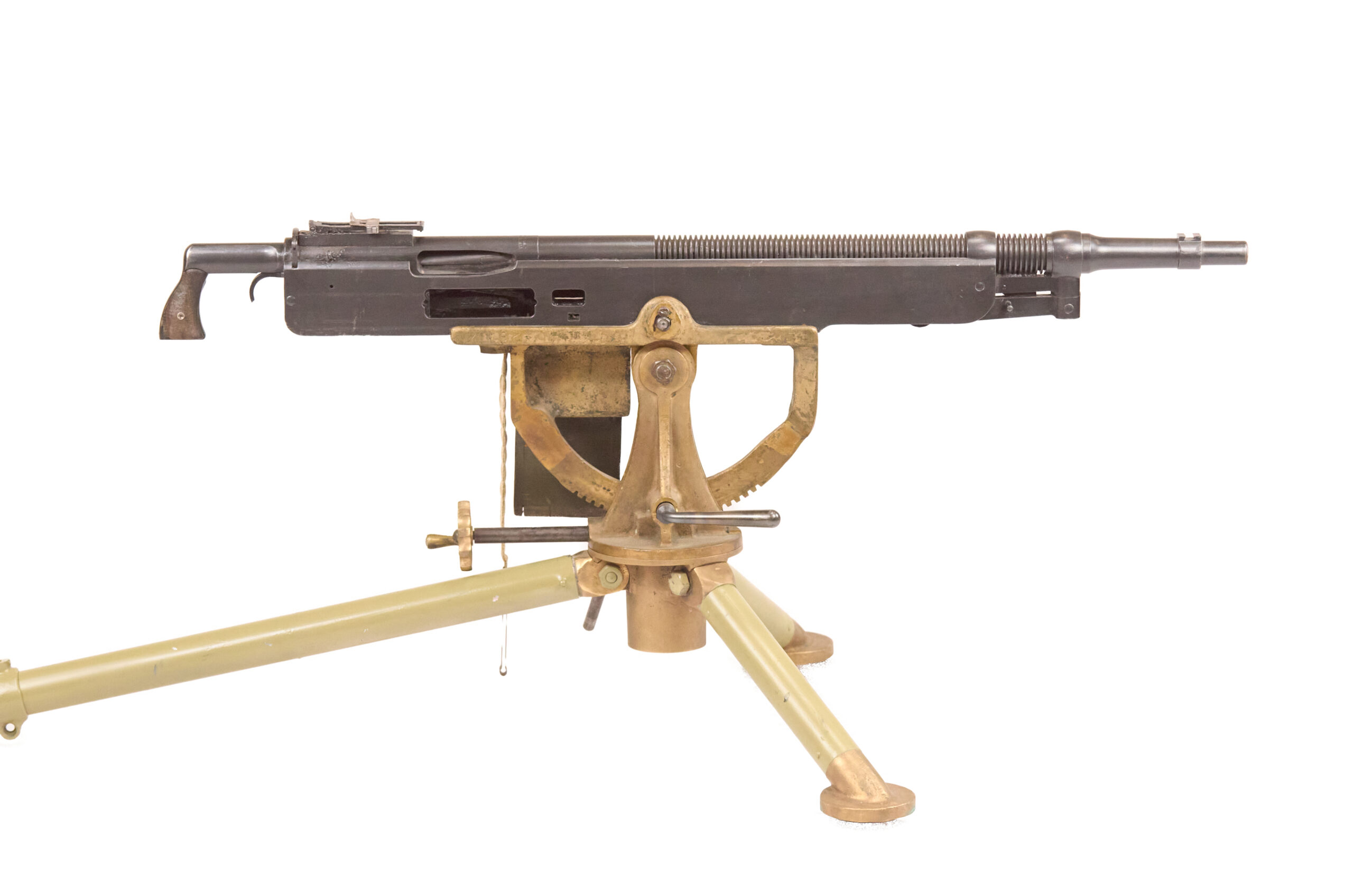

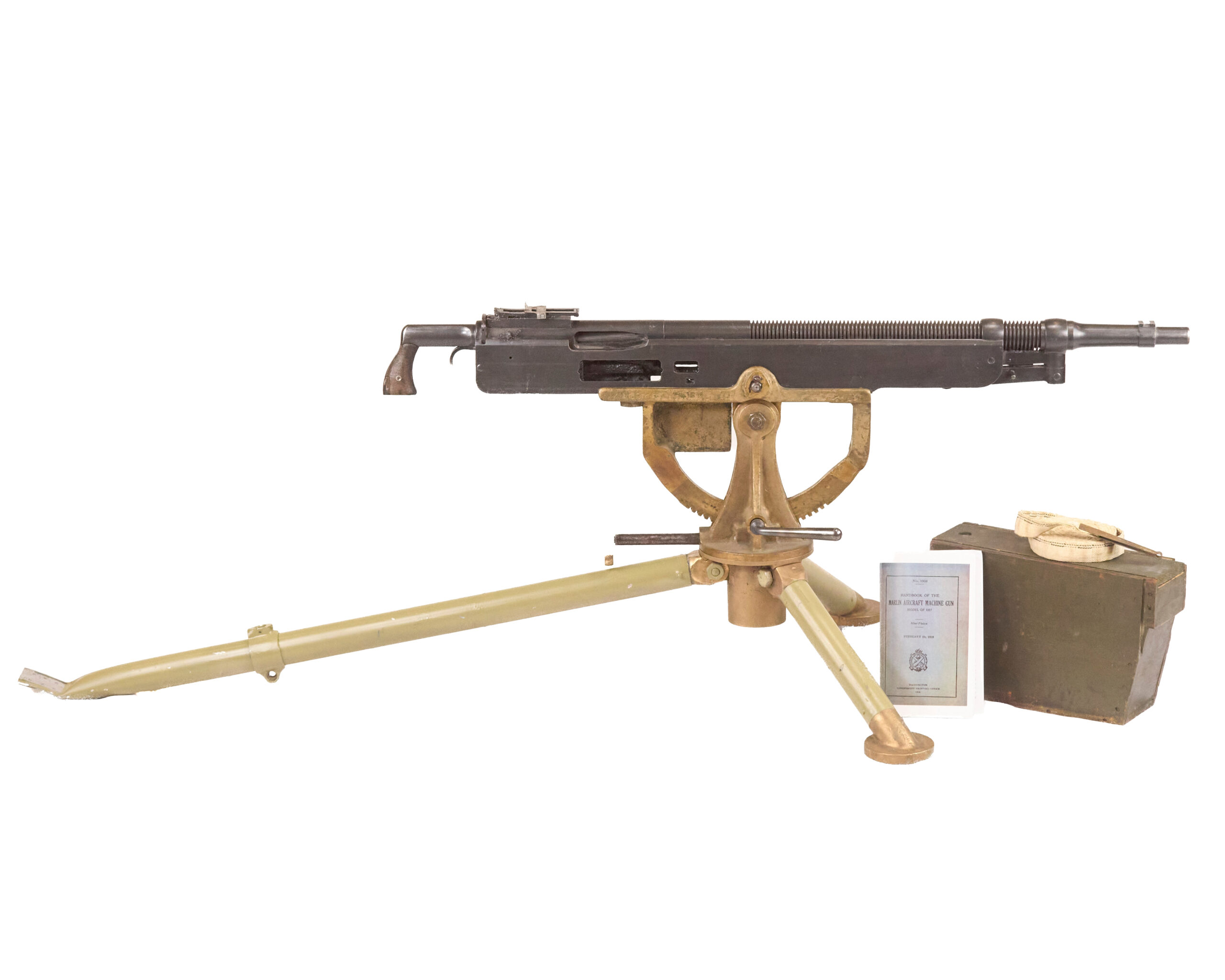

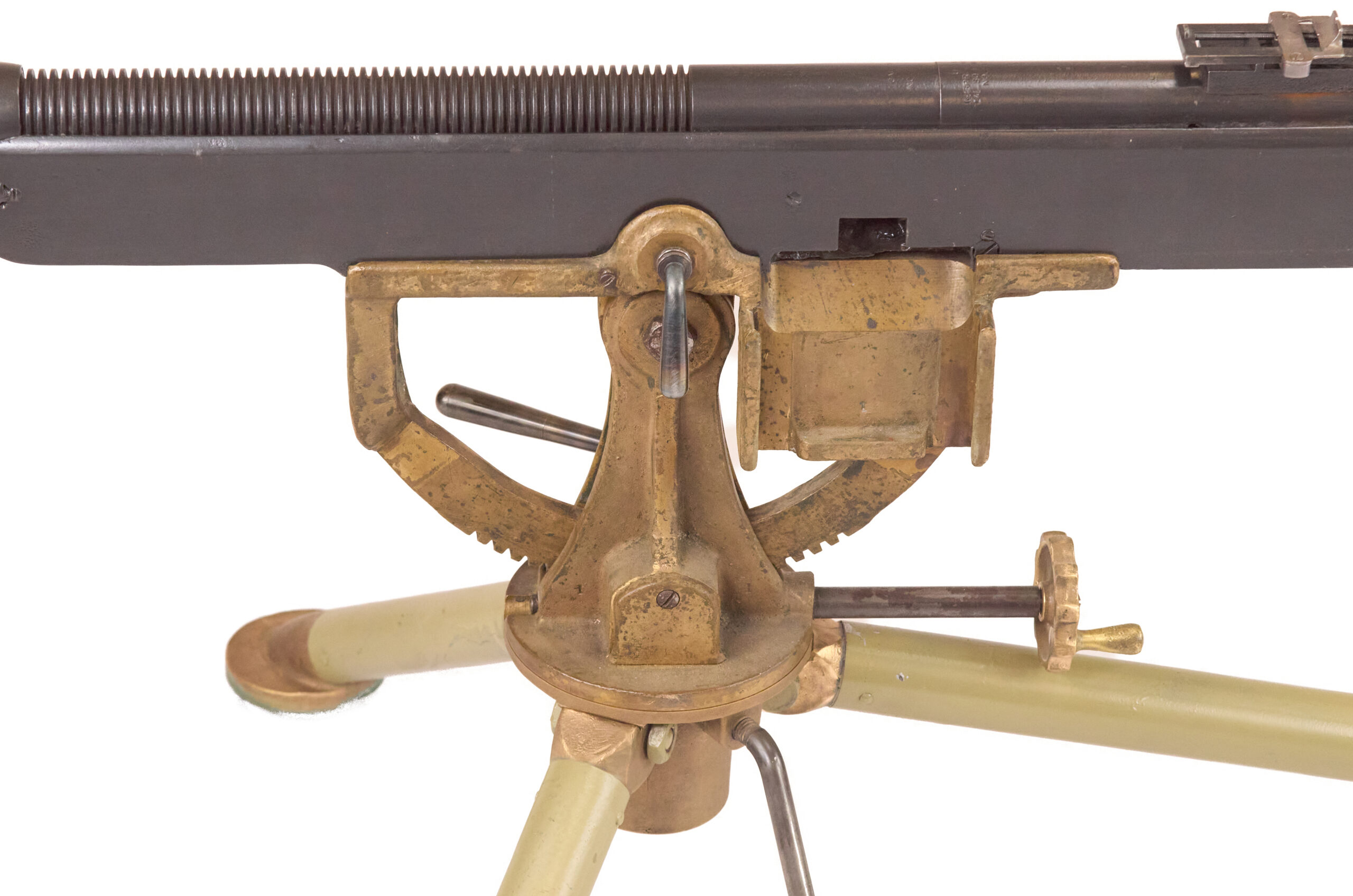

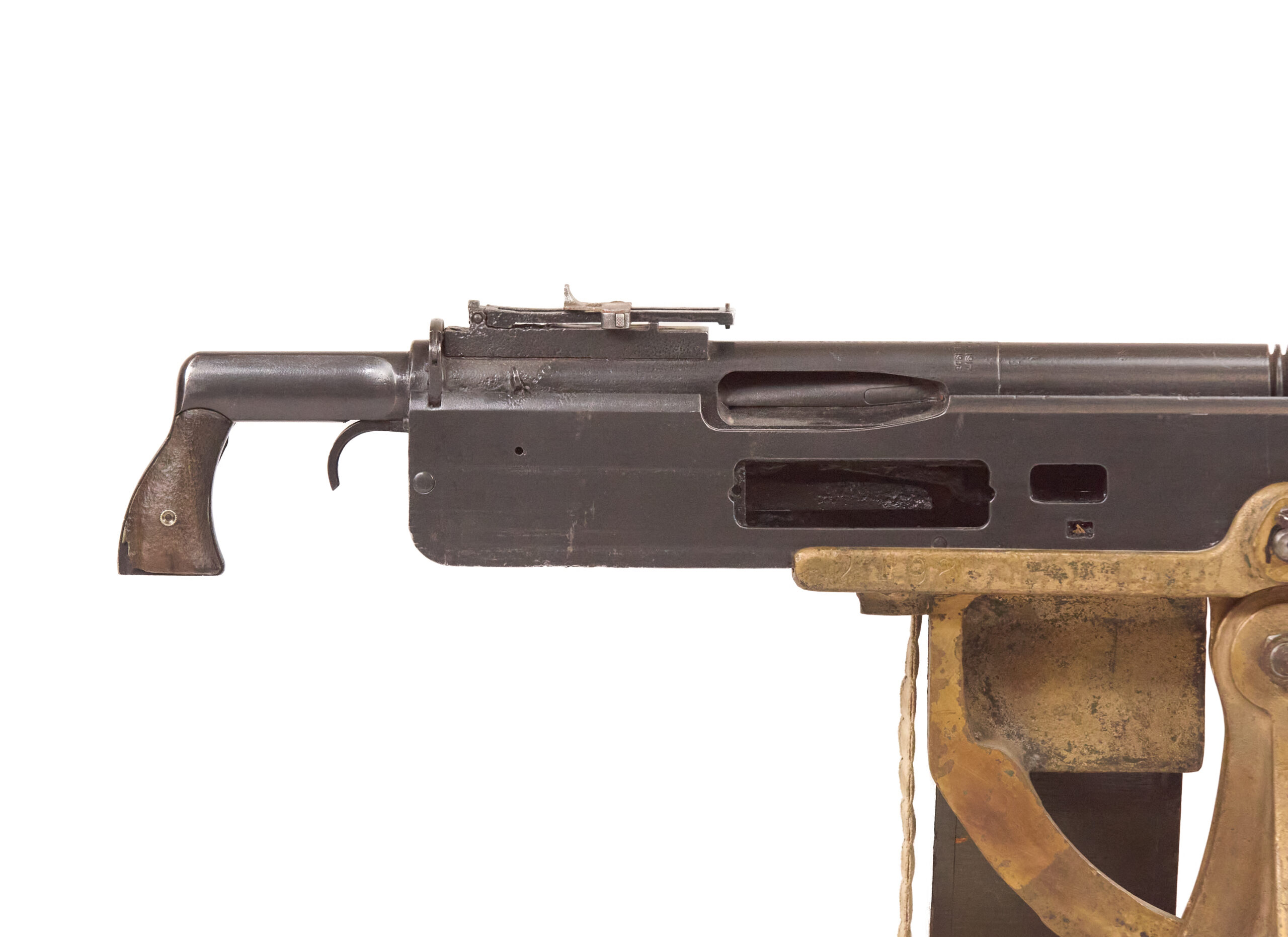

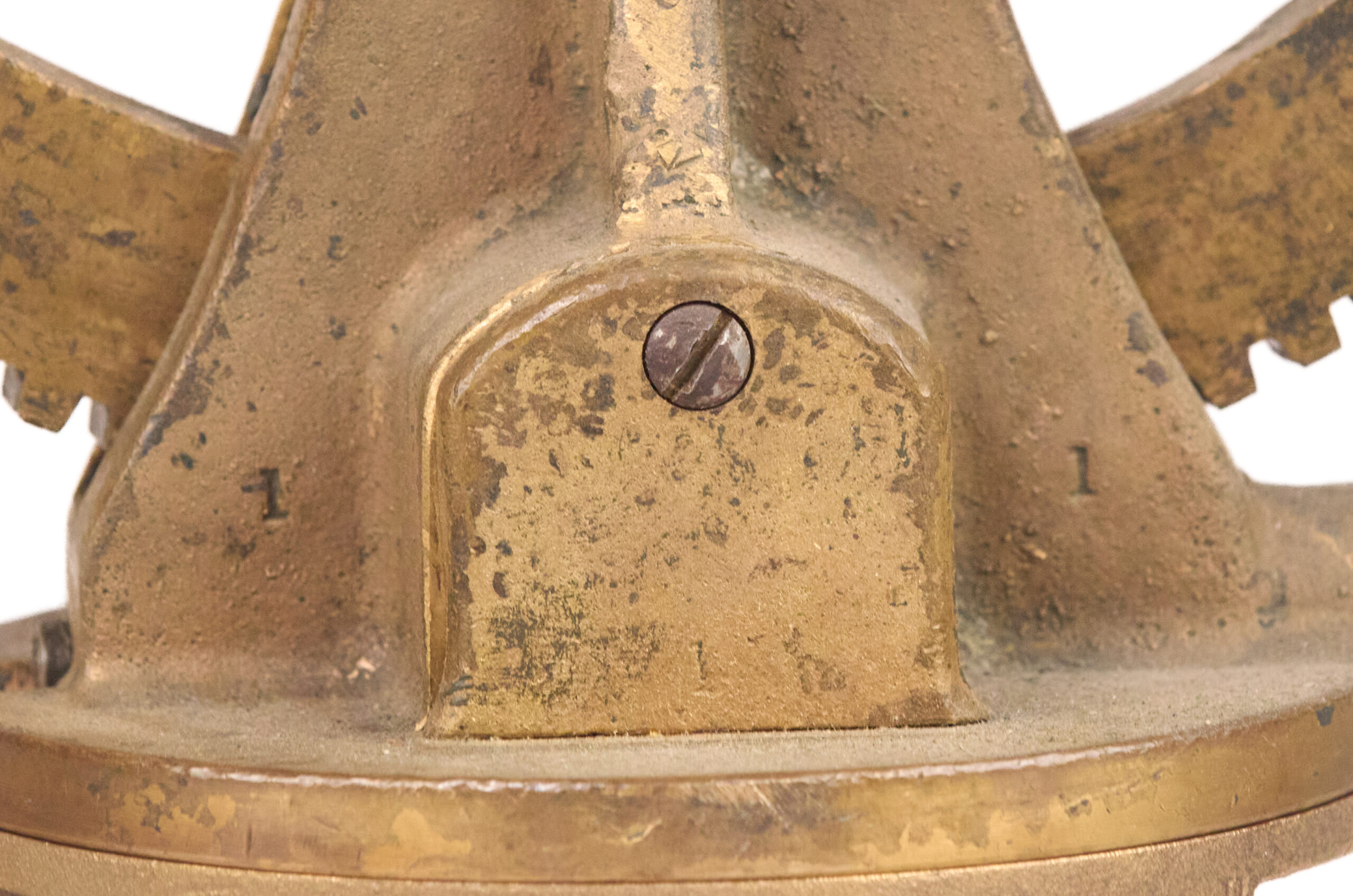

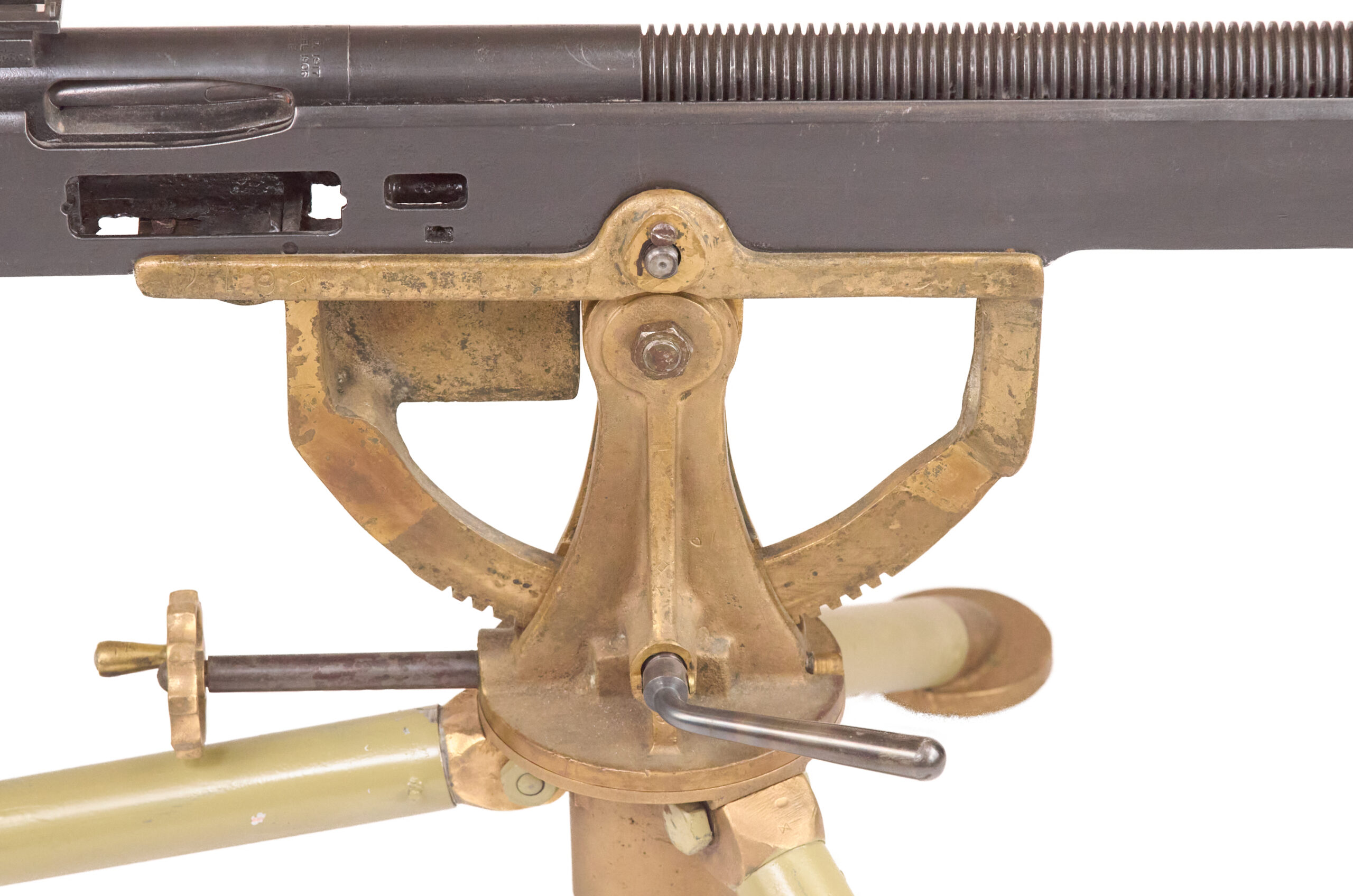

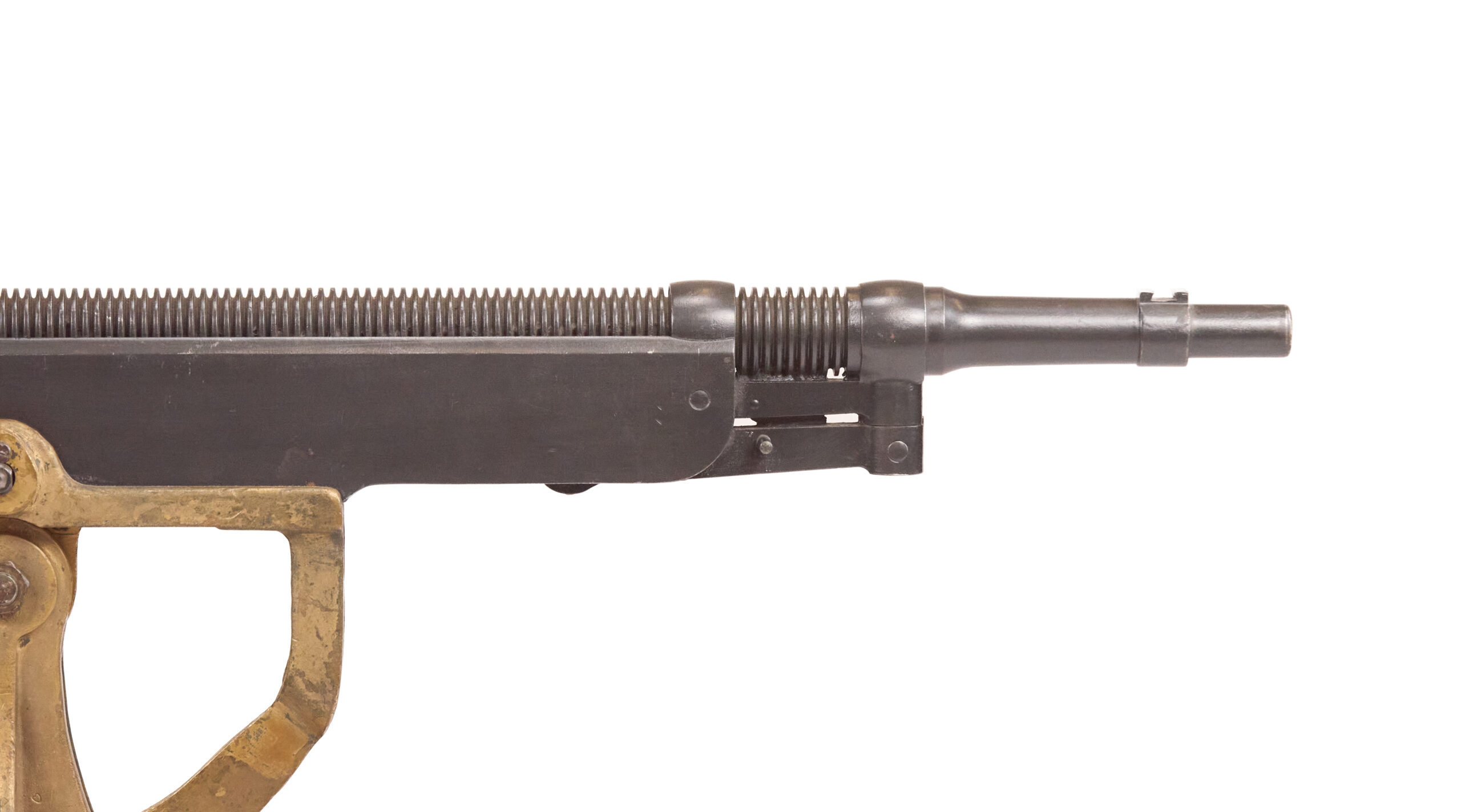

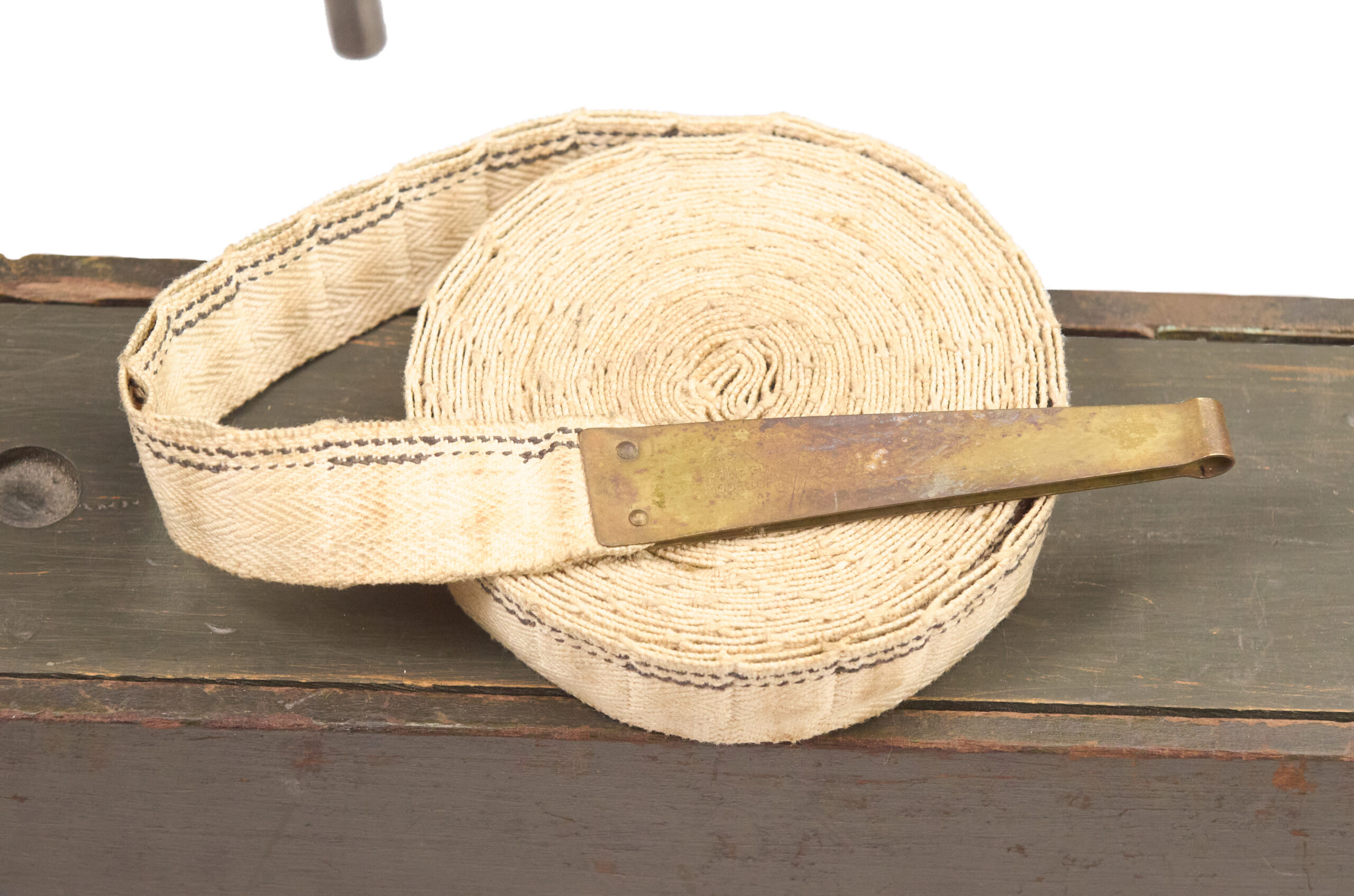

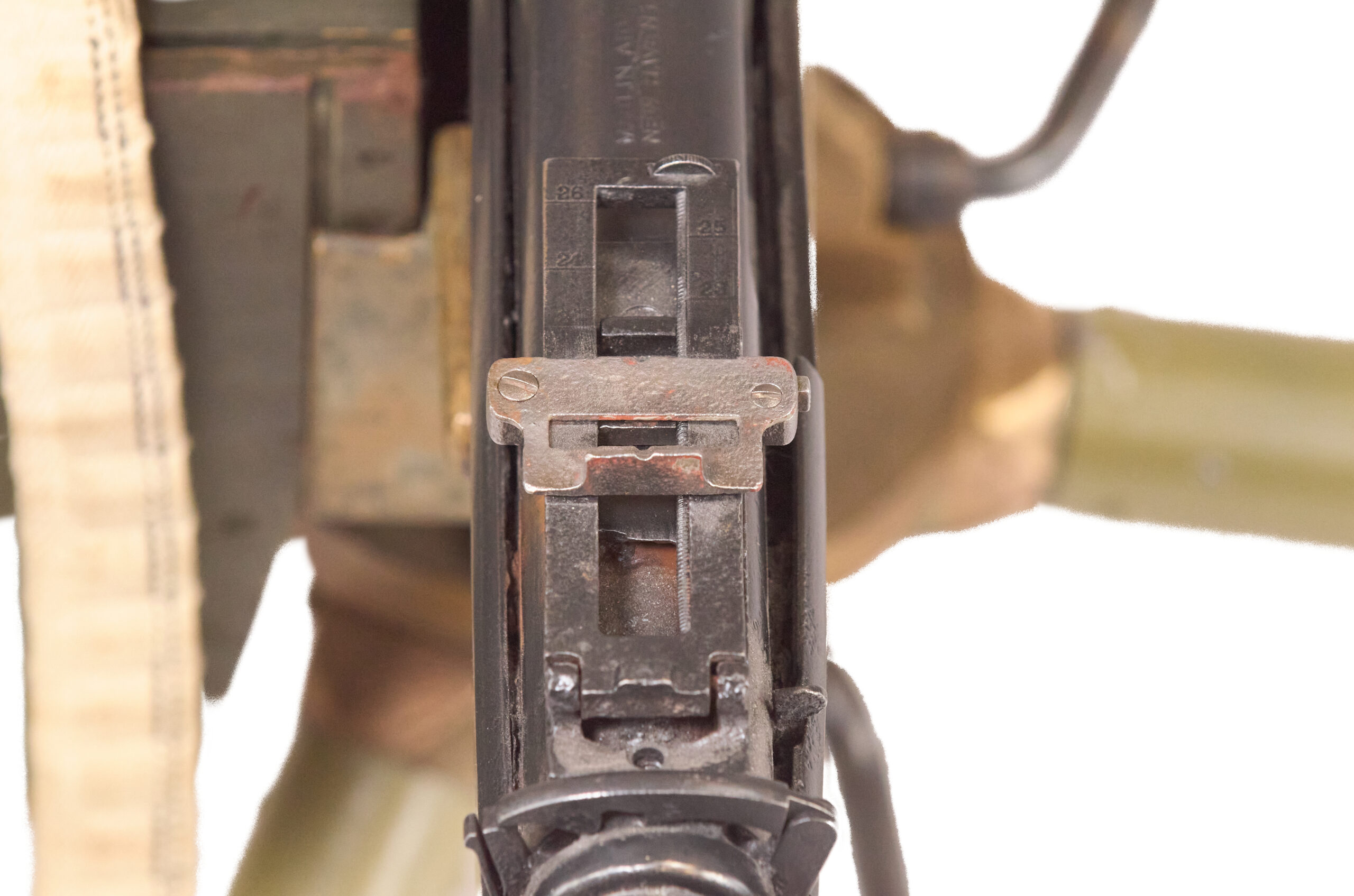

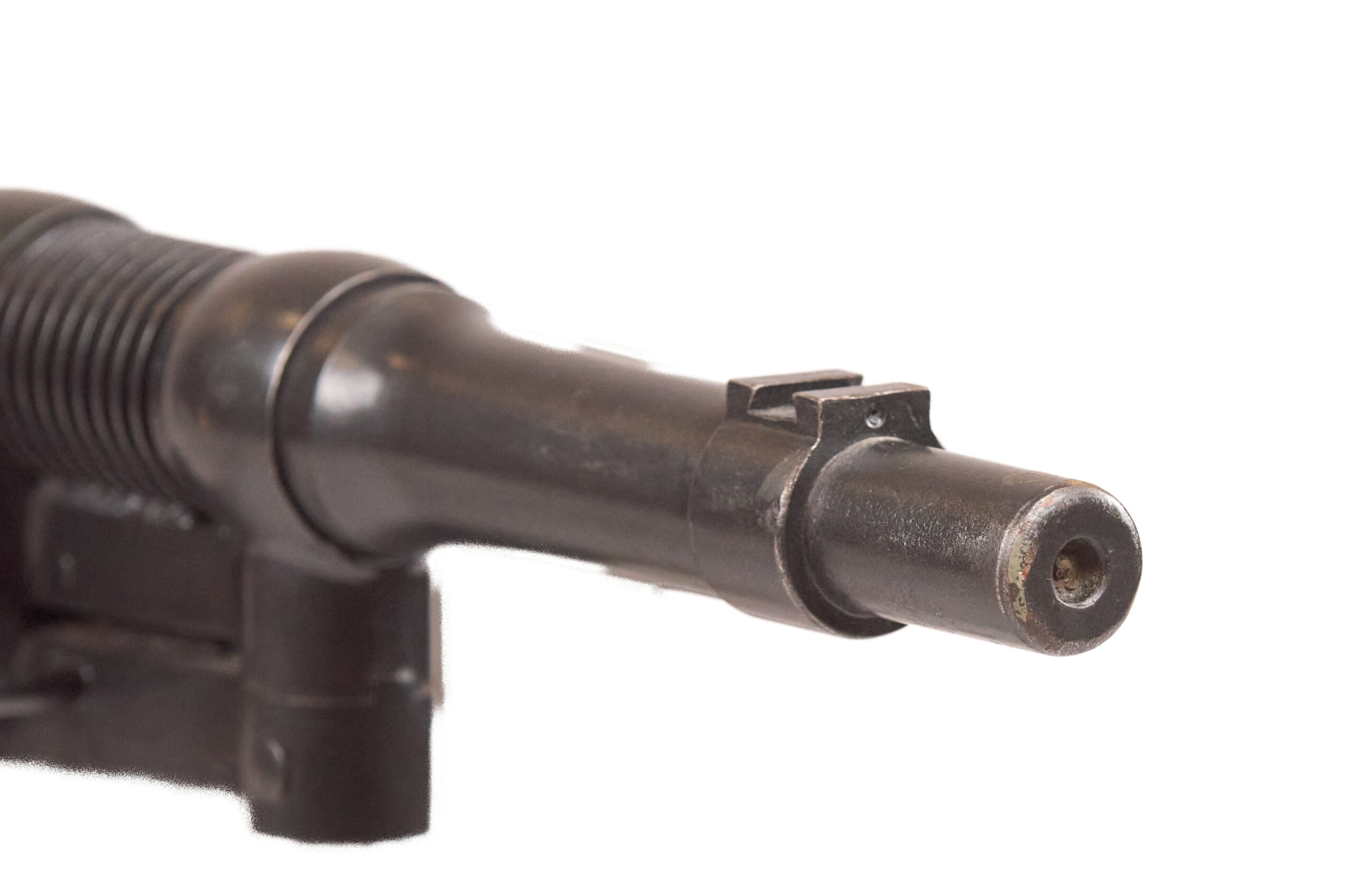

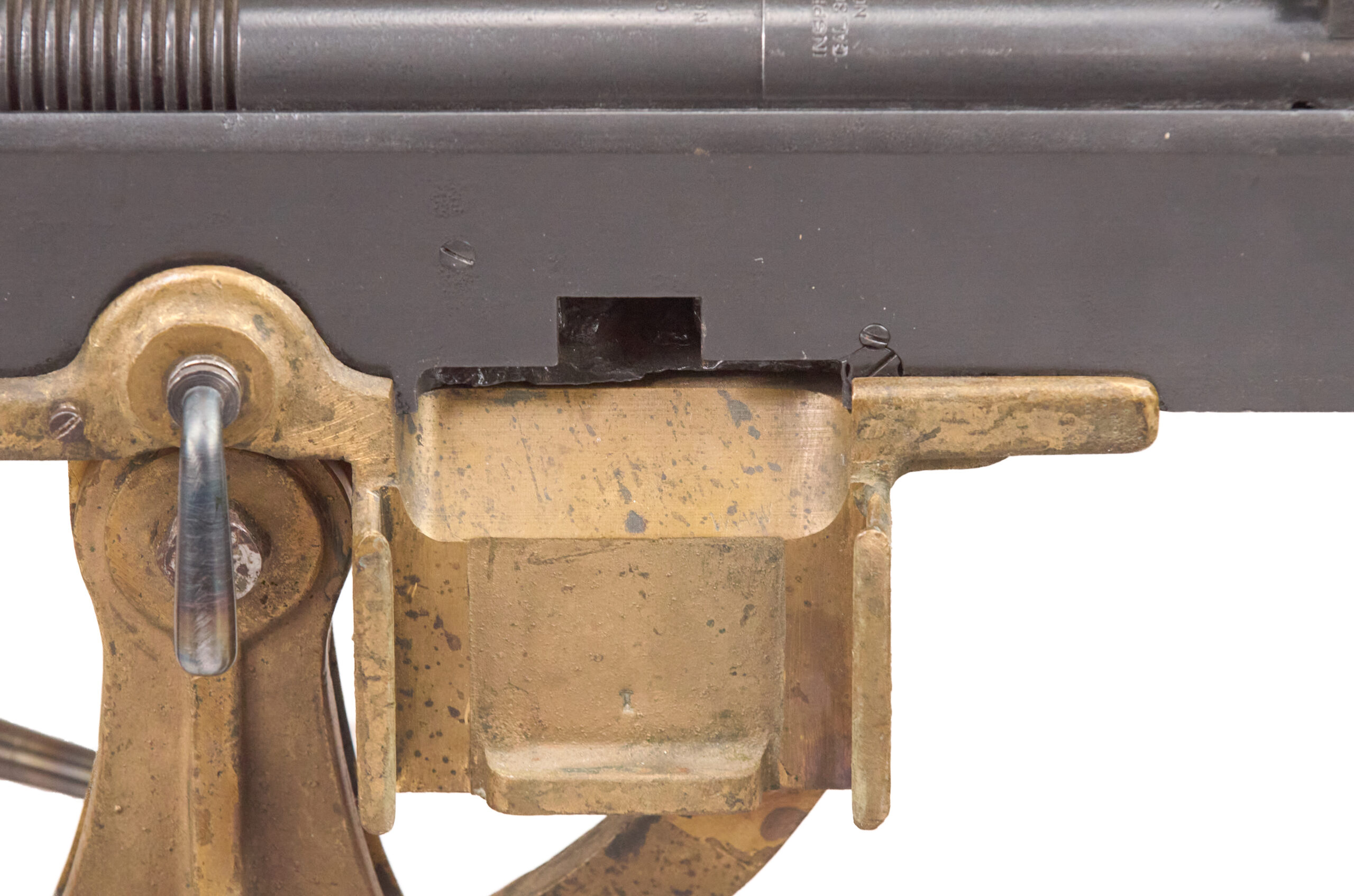

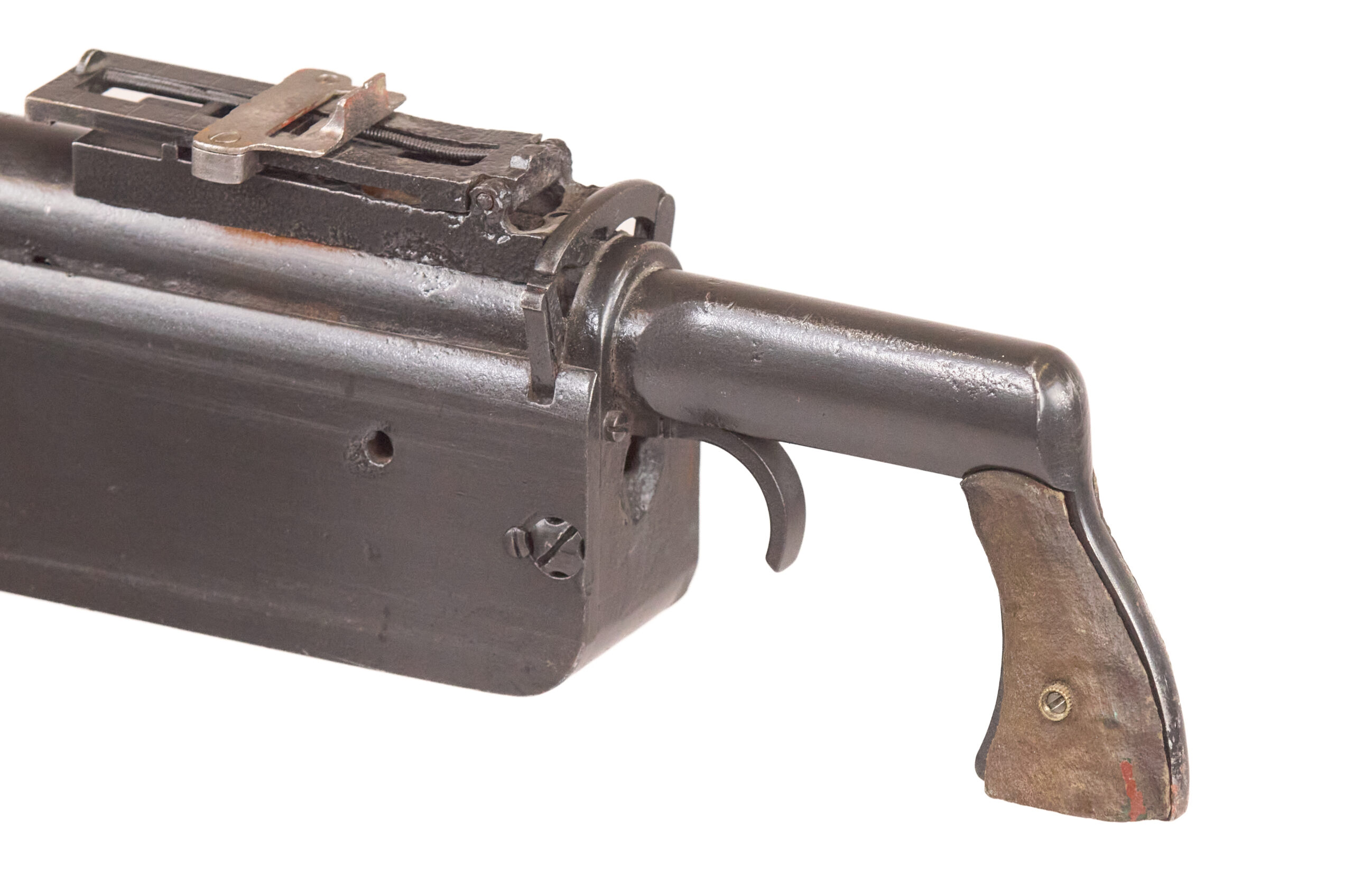

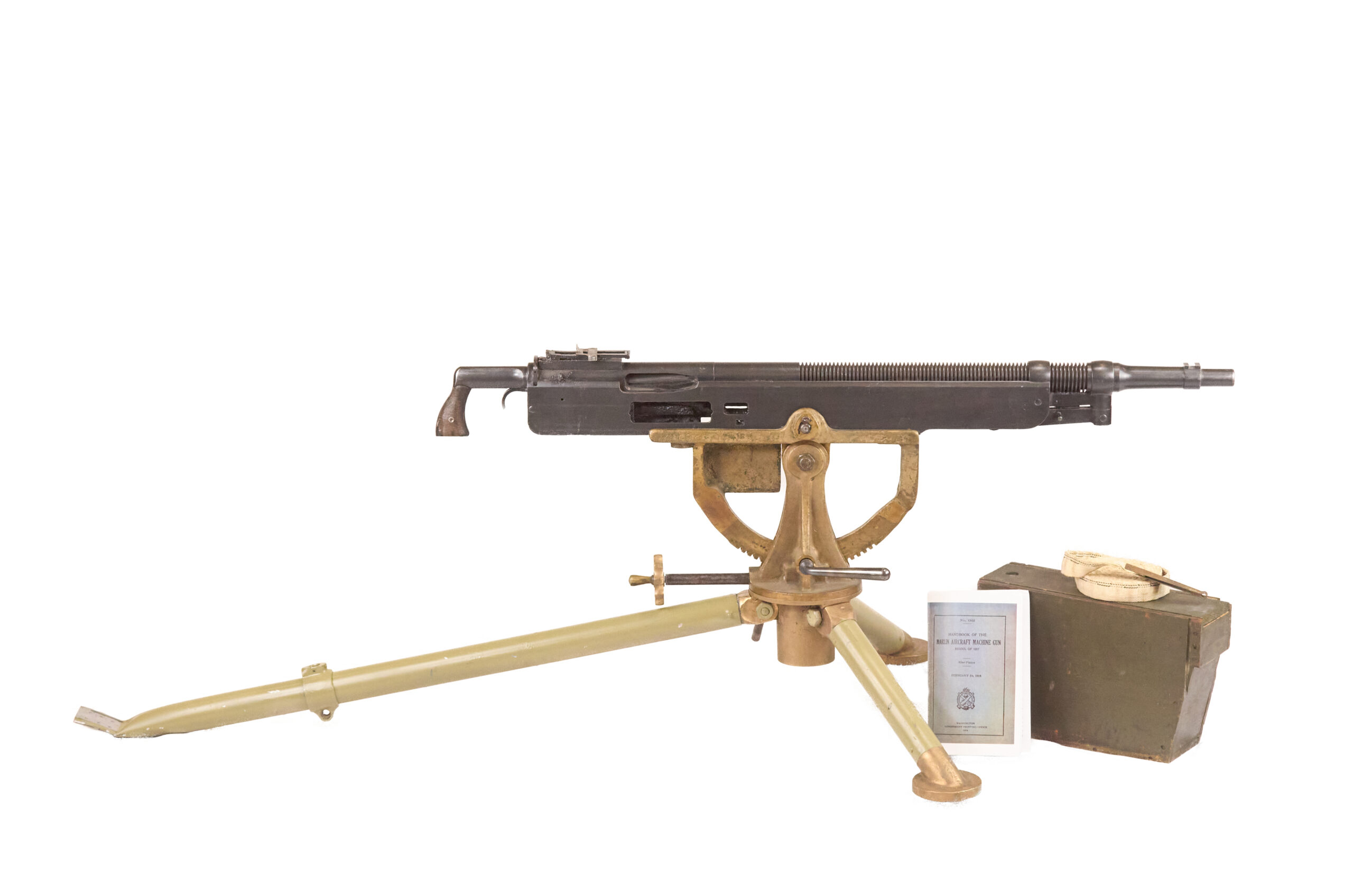

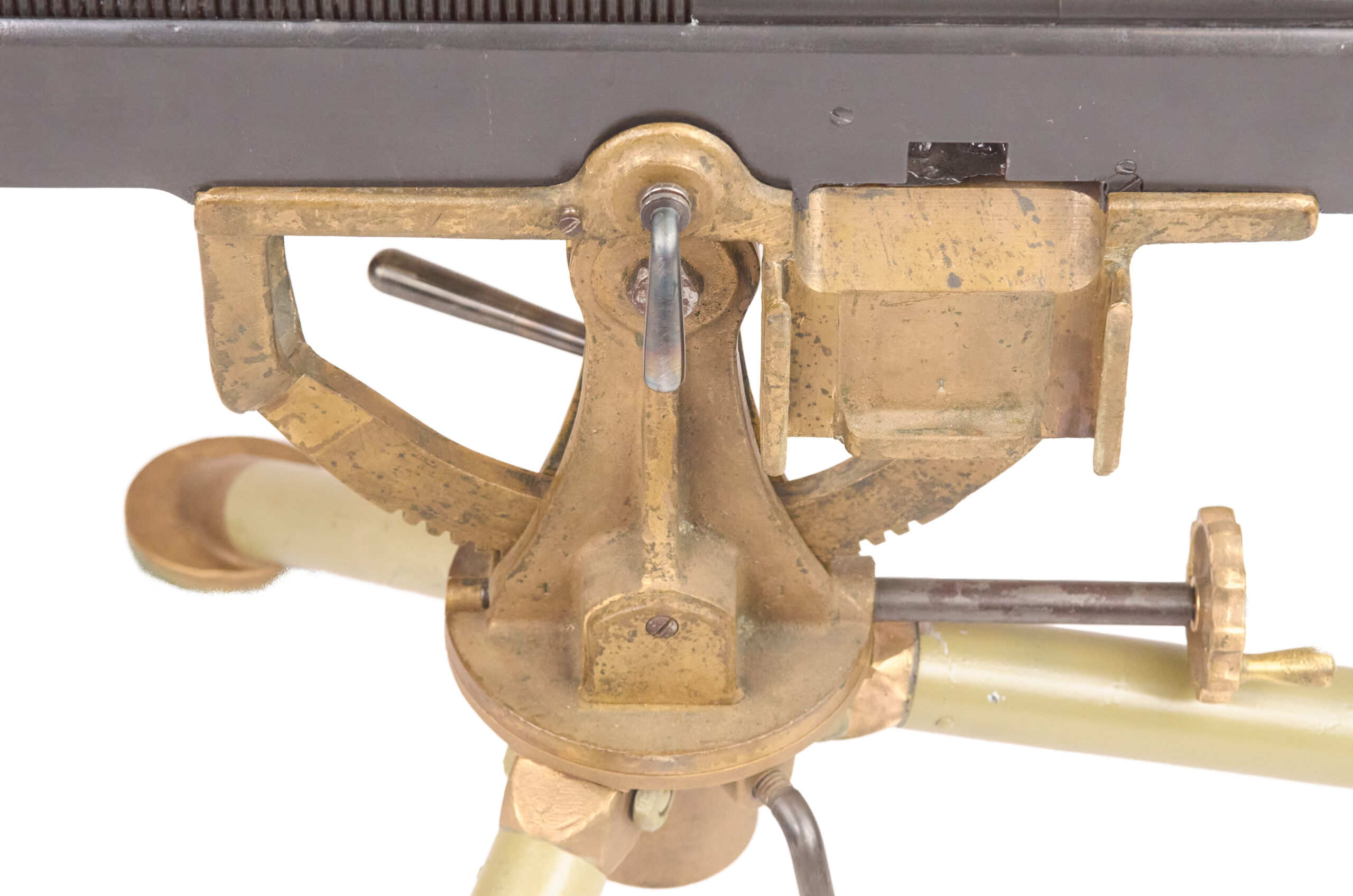

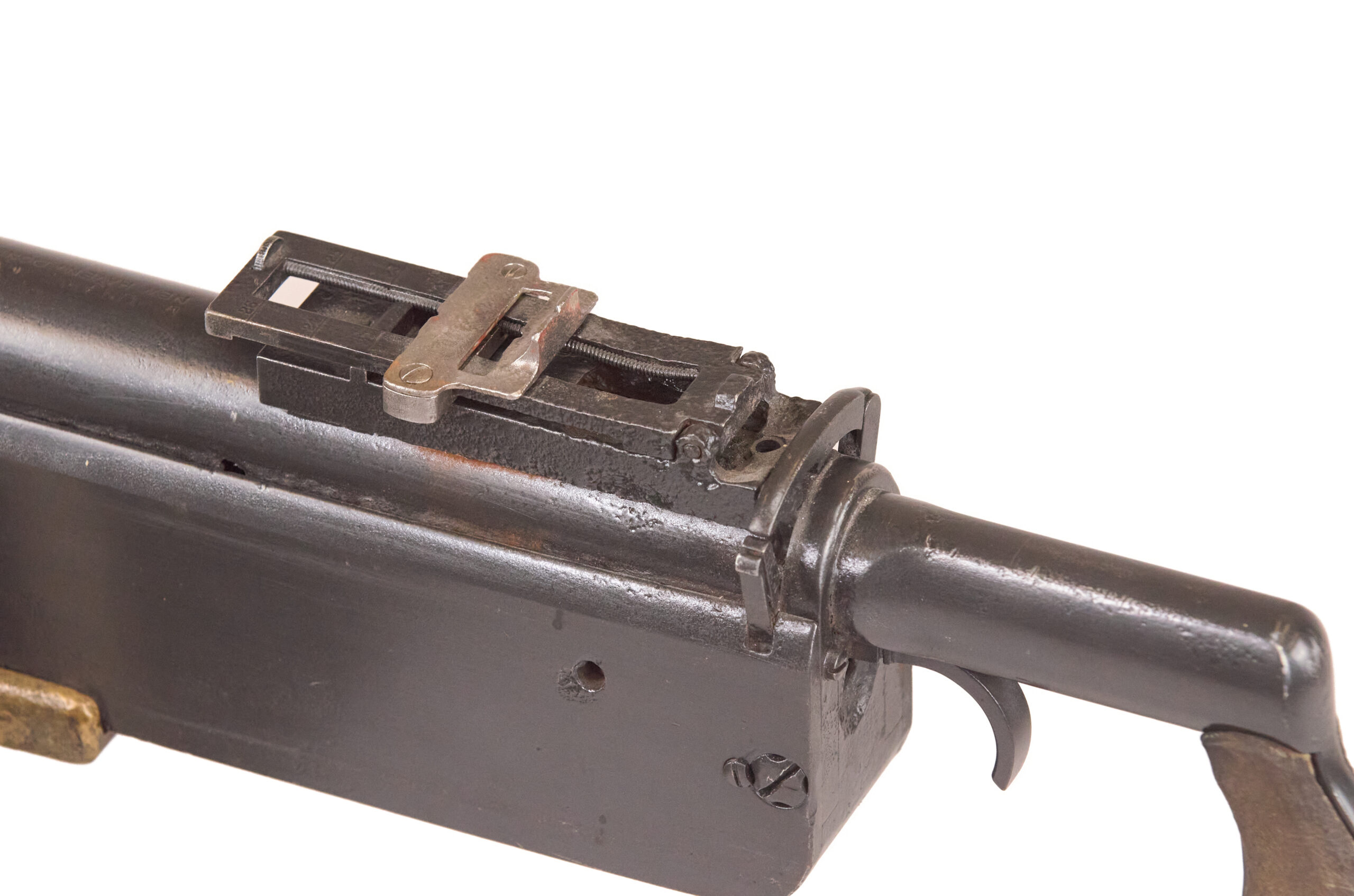

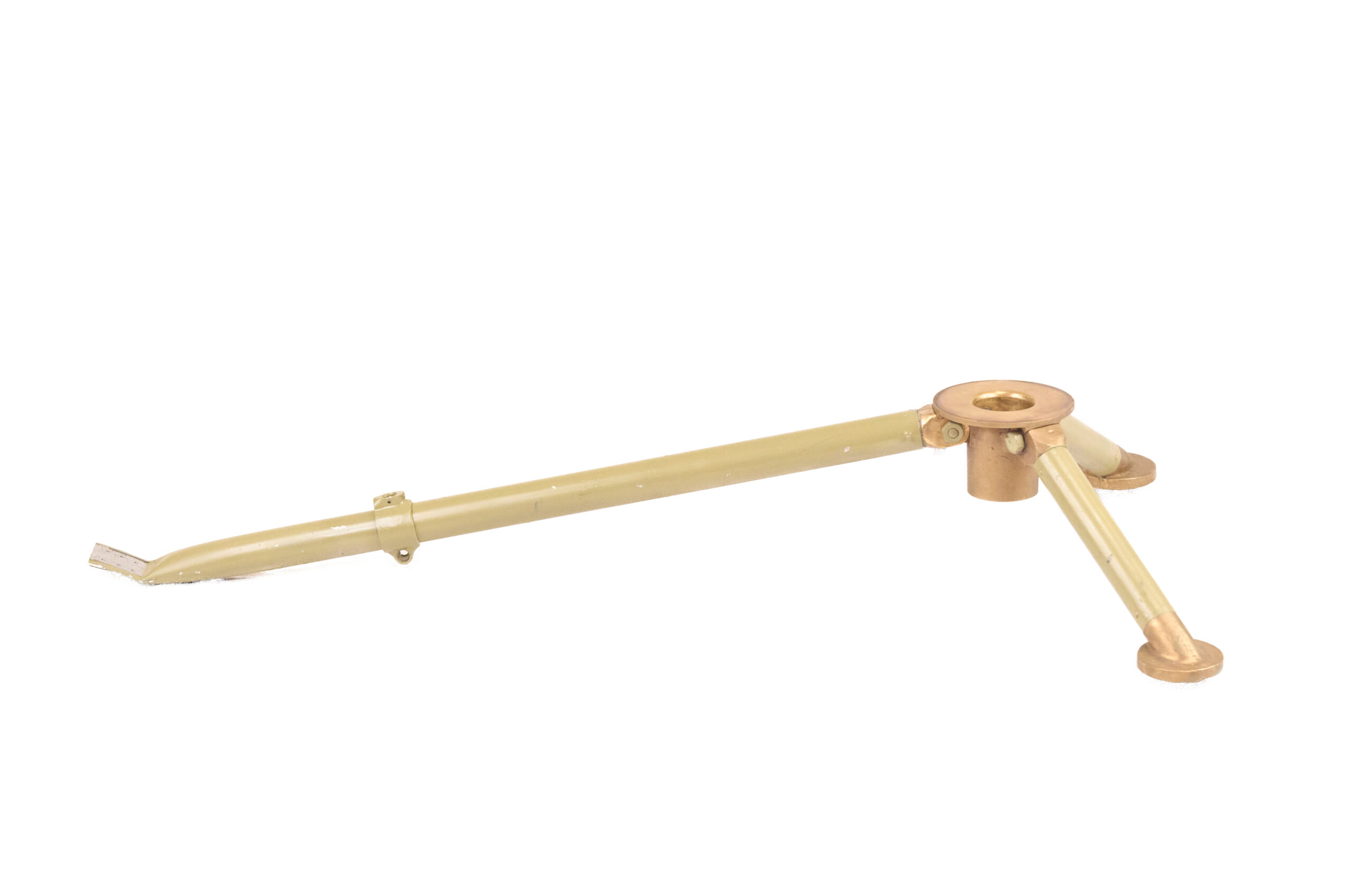

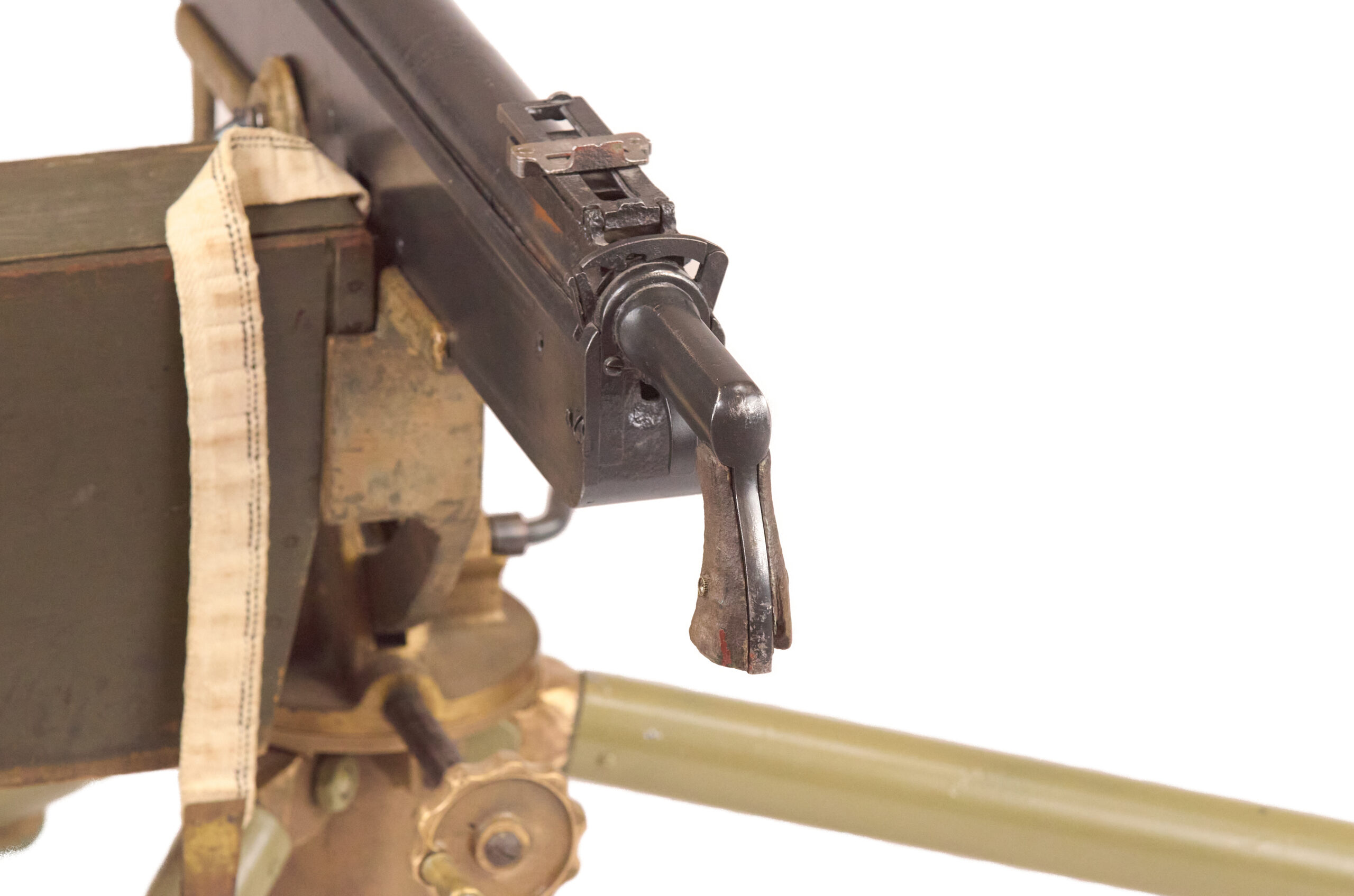

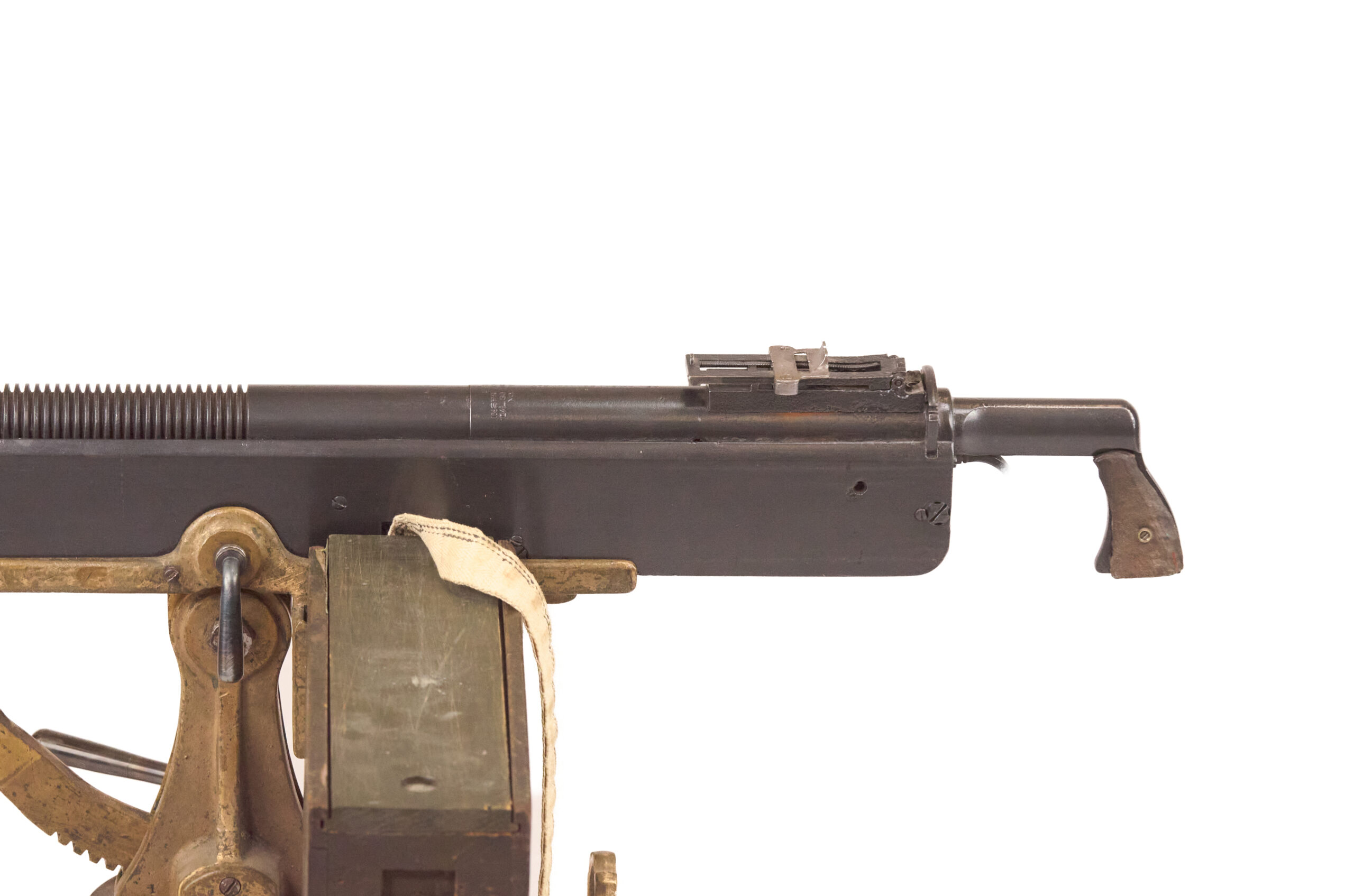

The gun retains its grips, and the rear ladder sight remains present, though the front blade is missing. The barrel has been plugged with weld as part of the display deactivation. The display also includes an original brass tripod with steel legs, an ammo box, a 250-round Browning cloth belt, and a manual. The tripod remains in very good condition overall, though the rear foot is missing, which is a commonly encountered issue on these mounts.
Mechanically, the M1895 used one of the most distinctive systems of any early machine gun. Gas from a port under the barrel drove a lever down and to the rear, which unlocked the action, cycled the bolt, and fed the next round. The gun used a tilting bolt and operated at roughly 450 rounds per minute. That combination gave the design a unique place in the development of automatic weapons and explains why the “potato digger” remains so instantly recognizable today.
Historical Context / Pattern Development
The Colt–Browning M1895 marked a major step in machine gun development. It was the first successful gas-operated machine gun to enter service, and it appeared in a wide range of roles with American and foreign forces. The design saw use with the U.S. Navy and Marine Corps, appeared in the Spanish–American War, and later served in the Philippine–American War, Boxer Rebellion, Mexican Revolution, Second Boer War, and World War I. It was mounted on tripods, boats, aircraft, carriages, and even armored cars, which shows how flexible the pattern proved in practice.
Marlin’s role in the history of the type adds another layer of interest to this example. Colt ceased production of the M1895 and its variants in 1916, then sold the machinery and manufacturing rights to Marlin Rockwell in order to focus on Vickers production. Marlin continued to build and improve the pattern, and the resulting guns developed a strong reputation in their own right. Because of that, a Marlin-marked example with matching numbered barrel and receiver carries more collector interest than a generic M1895 display alone.
Condition
This display set remains in excellent demilled condition overall. The gun shows expected wear from use, and only mild pitting appears in sparse areas. The rear ladder sight is present, though the front blade is missing. The grips remain with the gun, and the plugged barrel is original to the receiver with matching serial numbers. The tripod is in very good condition overall, though the rear foot is missing. Even so, the full set still presents extremely well. Taken as a whole, this is a strong Marlin M1895 display group with matching major components, excellent markings, and very appealing accessories.
